Description

Patton 2113 & 2115 Series plug-and-play Extenders take T1 and E1 circuits beyond their typical reach while conserving the number of wire pairs used. Model 2113A-2PK includes Local and Remote Extenders for E1 ISDN circuits.

Patton's 2113 & 2115 Series E1 and T1 Extenders are the perfect choice for enterprises, integrators, and service providers needing to extend T1 and E1 ISDN circuits beyond their typical reach while conserving the number of wire pairs used. With the CopperLink™-T extenders, zero configuration is required. They operate in clear-channel mode, thereby facilitating the transparent extension of data and voice bearing circuits—including the F-bit on T1 circuits. The two active pins on the RJ connector are polarity insensitive, so you don't even need to worry about which wire you connect on the line interface. Simply take them out of the box, put them on either side of the dry copper pair, connect your T1 or E1 device and the circuit will light up immediately.

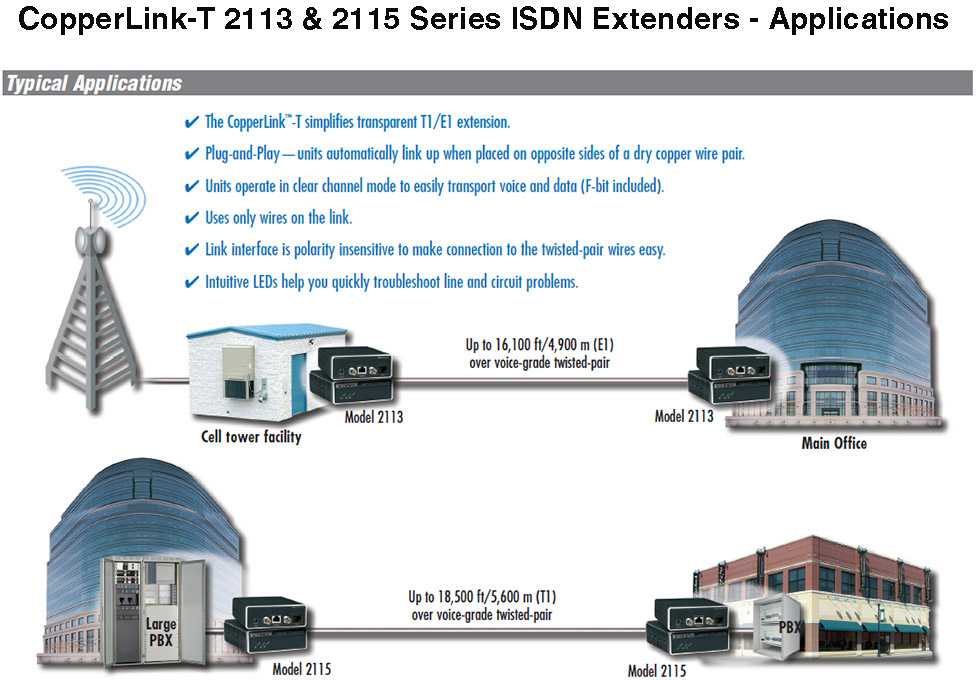

Model 2113 extends E1 ISDN circuits to 16,100 feet (4,900 meters, nearly 5 km) while the Model 2115 extends T1 circuits to more than 3.5 miles (18,500 feet or 5,600 meters). Both models require only two wires (one pair) to extend the TDM circuits, thereby conserving and minimizing the copper plant resources used. For these reasons, the CopperLink™-T extenders are the ideal solution for most popular applications such as T1/E1 backhaul from a remote site, T1/E1 relocation, T1/E1 extension across a campus or between buildings, and last-mile TDM delivery.
Features
Triple the Distance - Extend T1s to over 3 miles and E1s to almost 5km over one pair of wires
Half the Wires - The T1/E1 extenders only require one pair of wires to operate
Voice and Data Extension - operate in clear channel mode allowing transparent passing of voice and data
Plug and Play - Plug them in and the link comes up in seconds
Polarity insensitive line interface makes it easy to get running
Line Tests - V.52 511/511E Pattern Generator with Remote Digital Loopback; Local Analogue Loopback

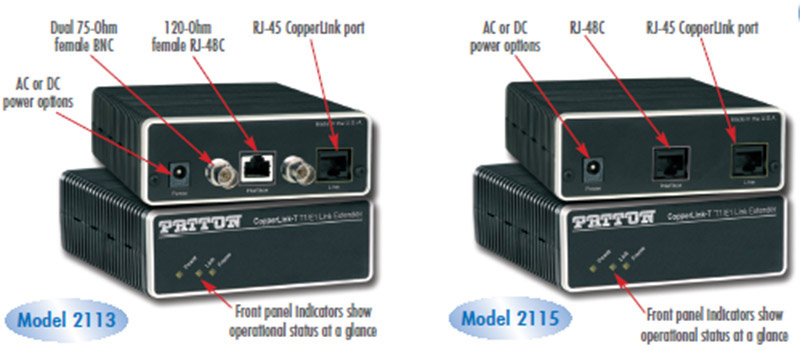

Front Panel LED’s provide users with quick feedback on unit operation
