The Alloy APS range of Layer 2+ Gigabit POE+ switches are feature rich and comply with the latest Green Ethernet standards. All SFP modules support both 100M and 1000M SFP Modules for a fully flexible deployment.

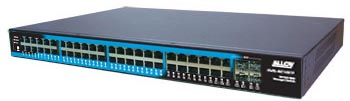

The ALLOY APS-48T4SFP is a Layer 2+ 802.3at PoE Gigabit Ethernet switch. With 44x 10/100/1000Base-T RJ-45 copper ports and 4x GbE Copper/(100M/1000M) SFP ports and a Switching Capacity of 96Gbps, this high performance switch is ideal for server aggregation applications, as a departmental switch, or to support Gigabit Ethernet to the desktop for power users. With the added flexibility of supporting both 100Mbps and 1000Mbps SFP Modules this switch can be integrated quickly and easily into your existing networking infrastructure.
The SFP slots on the switch support all types of Fast Ethernet or Gigabit SFP modules - 100Base-TX or 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable - enabling copper or fibre uplinks.
With a huge list of Layer 2+, QoS and Security features the APS series switches are the ideal solution at the edge or aggregation layer of medium to large enterprise and campus networks. Utilising the latest IEEE 802.3at PoE+ standard a huge 25.5W per port can be supported to power your high end Wireless Access Points and PTZ Networking Cameras. With the ability to be backwards compatible with all 802.3af devices this switch is still the ideal solution for powering your IP Phones in your VoIP environments.
The APS range of Managed Gigabit Switches comply with the latest IEEE 802.3az Energy Efficient Green Ethernet standards to minimise power usage. Features such as Link Detection and Cable Length Detection are supported. Link Detection will automatically turn the power off on a port when detecting loss of link or idle traffic from a client. Once traffic or link is detected on the port, the port will become active without any packet loss. Cable Length Detection adjusts the signal strength based on the length of the cable, when using shorter cables the power consumption is reduced.
All switches can be managed through the RS-232 Serial Port or through any Ethernet Port using the CLI or Web Based Management interface. The switch also supports SNMP allowing the network administrator to manage, configure and control the switch from any SNMP based software application.
|•||44x 10/100/1000Base-T Ports|
|•||4x Paired GbE Copper/SFP Ports|
|•||Layer 2 Plus features provide enhanced manageability, security, QoS and Performance|
|•||Dual speed SFP’s for Fast Ethernet or Gigabit SFP Modules|
|•||IEEE 802.3az Energy Efficient Ethernet standard|
|•||IEEE 802.3at/af PoE Support|
|•||Upto 25.5W of power per port and 7.5W per port at full load|
|•||360W of power dedicated to PoE|
|•||IPv6 and s-Flow support|
|•||Easy to use Web Based Management|
|•||Total Ports: 48 Gigabit Ports|
|•||UTP Ports: 44Gbe|
|•||Paired UTP/(100M1Gb) SFP Ports: 4|
|•||IEEE 802.3af: Ports 1 - 48|
|•||IEEE 802.3at: Ports 1 - 48|
|•||Total POE Power: 360W|
|•||Jumbo Frames: 9Kb|
|•||MAC Table: 32K|
|•||Switching Capacity: 96Gbps|
|•||Forwarding Rate: 71.42mpps|
|Layer 2 Features|
|•||Spanning Tree Protocol: STP, RSTP, MSTP|
|•||VLAN: Port based VLAN's, 802.1Q, MAC Based VLAN's, Management VLAN, Private VLAN, Voice VLAN|
|•||Layer 2 isolation Private VLAN Edge (PVE)|
|•||IP Source Guard|
|•||Dual Firmware Images|
|•||SNMP 1, 2c and 3|
|•||RMON Groups 1,2,3,9|
|•||IPv4 and IPv6 Supported|
|•||Cable Length Detection|
|•||Dimensions (mm): 44(H) x 442(W) x 385(D)|
|•||Power: 100-240VAC 50~60Hz, Internal|
|•||Operating Temperature: 0 to 50|
|•||Storage Temperature: -20 to 70|
|•||Operating Humidity: 10% to 90%, relative, non-condensing|
|•||Certification: CE Mark, FCC Part 15 (CFR47) Class A, C-Tick|
