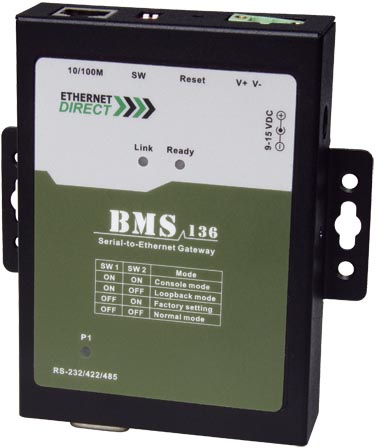

The BMS-136 a single-port high performance Serial-to-Ethernet gateway which is designed for applications requiring quick, reliable and seamless integration of existing RS-232/422/485 devices to an Ethernet network.
Boxer Device servers are highly reliable, utilising a robust steel case. They will operate fault-free in temperatures between 0 to 60 centigrade – ideal for most industrial sites. Boxer Device Servers provide a high level of immunity to electromagnetic interference and power supply surges typically found in industrial plant environments.
Both models provide a range of versatile operation modes which provide a transparent data channel between serial devices and the TCP/IP network, so that the serial device can be accessed through standard TCP/IP protocols. Both models in the series can function as a TCP server, a TCP client or an UDP node on an Ethernet network, to fulfil versatile application requirements. In the case of network malfunctions, the devices have the capability to re-establish the TCP connection every 5 seconds.
Each serial port on the device has a unique IP address and a port number for ‘Direct-IP mode ‘socket-based communication. Alternatively, serial ports can be mapped as a local COM port on a remote host computer to facilitate traditional serial communication.
The Device Servers can be accessed locally (Intranet) or remotely (Internet) via an intuitive, easy-to-use Web interface, Telnet and serial console access is also provided.
|•||1x RS-232/422/485 Serial Port with DB9 Male Connector|
|•||1x 10/100Mbps Fast Ethernet Port|
|•||Connect RS-232/422/485 devices to TCP/IP network|
|•||Supports TCP/Server, TCP/Client, UDP, and paired connection mode with heart-beat checking mechanism|
|•||Windows Virtual COM driver included for backward compatibility|
|•||10/100Mbps Ethernet; 230.4Kbps serial data rate|
|•||Web/Telnet/Serial consoles for device configuration|
|•||Windows utility for device configuration and management|
|•||Serial Port: 1x RS-232/422/485, DB9 Male Connector|
|•||RJ-45 Port: 1x 10/100Base-TX|
|•||Dimensions: 81 mm (W) x 113 mm (H) x 24 mm (D)|
|•||Installation: Wall Mounting|
|•||Power Input: 9 to 15VDC|
|•||Power Consumption: 2.25W|
|•||Operating Temperature: 0°C to 60°C|
|•||Storage Temperature: -20°C to 80°C|
|•||Operating Humidity: 10 to 80% RH (Non-condensing)|
|•||Shock: IEC 60068-2-27|
|•||Vibration: IEC 60068-2-6|
|•||Free Fall: IEC 60068-2-32|
