The VidyoGateway connects H.323 and SIP videoconferencing endpoints and MCUs from many vendors including Polycom and Cisco, to interoperate seamlessly with Vidyo’s breakthrough Adaptive Video Layering Architecture and Vidyo™ endpoints.
The tremendous power of video to improve workforce collaboration and productivity has sparked growing demand for next-generation technology that supports telepresence quality, scalability and value. Vidyo™ recognizes that companies may have made prior investments in traditional MCU-based systems, and offers the VidyoGateway™ to bridge traditional systems with next-generation VidyoConferencing™ and extend HD-quality multipoint conferencing from room systems to desktops.

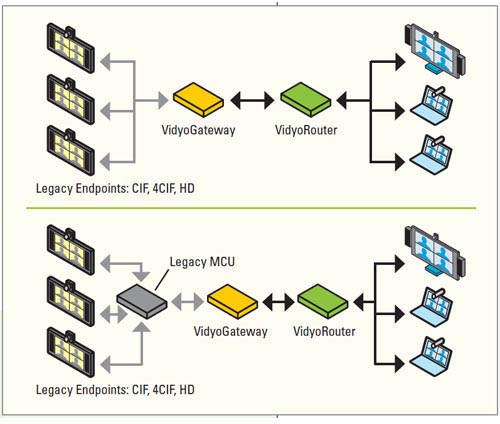

The VidyoGateway connects H.323 and SIP videoconferencing endpoints and MCUs from many vendors including Polycom and Cisco, to interoperate seamlessly with Vidyo's breakthrough Adaptive Video Layering Architecture and Vidyo™ endpoints.
Along with H.323 and SIP signaling, VidyoGateway supports H.264 and H.263 video compression, and H.239 data sharing. The VidyoGateway will also support H.235 for encrypted media. Two models – the standard VidyoGateway and the VidyoGateway MK-II – help optimize price per H.323 or SIP port based upon deployment configuration and capacity requirements.
|•||Extend existing room system deployments to the desktop|
|•||Protects H.323 & SIP endpoint investment while migrating to next generation architecture|
|•||Connects VidyoConferencing to legacy MCUs|
|•||Eliminates need for expensive QoS networks between remote locations for legacy room systems when Vidyo Gateway is provisioned on the same LAN|
|•||Facilitates data sharing with legacy endpoints via H.239|
|•||1 x HD 720P30 @ 1.5 Mbps|
|•||4 x 4CIF (SD) @ 768 Kbps|
|•||12 x CIF @ 384 Kbps|
|•||50x Audio Only Ports|
|Protocols & Standards|
|•||H.323 and SIP (signaling)|
|•||H.239 (data sharing)|
|•||G.711, G.722 (audio)|
|•||H.264 SVC, H.264/AVC up to HD, H.263 (video)|
|•||Height - 1.7” (43mm)|
|•||Width - 17.2” (437mm)|
|•||Depth - 14.5” (369mm)|
|•||Gross Weight - 17 lbs (7kg)|
|•||Form Factor - 1U Rackmount|
|•||2x RJ45 LAN ports - 100BASE-TX and 1000BASE-T|
|•||1x VGA Port|
|•||PS/2 keyboard and mouse ports|
|•||1 Fast UART 16550 serial port|
|•||10° to 35°C|
|•||-40° to 70°C|
|•||8 - 90% non-condensing|
|•||5 - 95% non-condensing|
