This product has been discontinued by Alloy.

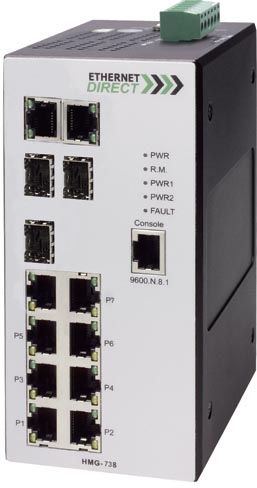

The HMG-738E-CD is a Class 1 Division 2 SNMP Managed Industrial 10-port Gigabit Ethernet Switch. It has seven 10/100TX RJ-45 ports and 3x Paired Gigabit Copper and SFP Ports. SFP Ports support both 100M and 1000M SFP modules, and 2 Digital I/O Ports.
The HMG-738E-CD managed Industrial Ethernet Switch is a highly reliable and fault-tolerant device with powerful SNMP features required for Industrial Ethernet applications. The HMG-738E-CD can be remotely configured by a web browser and managed by SNMP and RMON. Advanced security features such as VLAN and IP Security are supported, while performance is optimised by functions such as QoS (Quality of Service) and IGMP snooping and querying.
The HMG-738E-CD supports X-Ring redundancy, which allows the switch to reconfigure and automatically provide a redundant path in the network. If any part of your network is disrupted or disconnected, this redundancy feature provides a fault recovery time of less than 300ms, ensuring your network will not suffer from interruption or failure.
The HMG-738E-CD is designed to operate in harsh environments, and provide a high level of immunity to electromagnetic interference and power supply surges typically found in industrial plant environments. The HMG-738E-CD operates in temperatures ranging from -40°C to 80°C.
|•||Class 1 Division 2 Certified|
|•||Provides 7x 10/100 Mbps Ethernet ports with RJ-45 connectors|
|•||Provies 3x Paired Gigabit Copper and SFP Ports (100M/1000M SFP Modules supported)|
|•||3x Digital Input/Output Ports|
|•||RJ-45 Ports support auto MDI/MDI-X crossover|
|•||Robust Aluminum case complying to IP-30 housing standard|
|•||Supports operating temperature -40°C to 80°C|
|•||DIN-Rail, Panel mount or desktop installation|
|•||Supports 24 to 48VDC redundant power with polarity reverse protection|
|•||Equipped with Redundant power inputs|
|•||Terminal block present for master and slave power|
|•||Complies with IEEE standards|
|•||SNMP v1, v2c, v3|
|•||X-Ring technology with <300ms recovery time|
|•||IGMP snooping, querier|
|•||Port Based VLAN, 802.1Q Tag-based VLAN's|
|•||Port Trunking via LACP|
|•||Total Ports: 6|
|•||RJ-45 Ports: 7x 10/100Mbps and 3x Paired 10/100/1000Mbps|
|•||SFP Ports: 3x Paired 100M/1000M SFP Ports|
|•||Digital I/O Ports: 3x D I/O Ports|
|•||Alarm Contact: 1A@24VDC|
|•||Dimensions: 72 mm (W) x 152 mm (H) x 105 mm (D)|
|•||Installation: DIN-Rail or Wall Mounted|
|•||Power Input: 24 to 48VDC, redundant power inputs|
|•||Power Consumption: 12.15W|
|•||Operating Temperature: -40 to 80 C|
|•||Storage Temperature: -40 to 85 C|
|•||Operating Humidity: 5% to 95% RH (Non-condensing)|
|•||Shock: IEC 60068-2-27|
|•||Vibration: IEC 60068-2-6|
|•||Free Fall: IEC 60068-2-32|
|•||MTBF: 250,472 hours based on Mil-Hdbk-217F, GB|
