discontinued
EthernetDirect

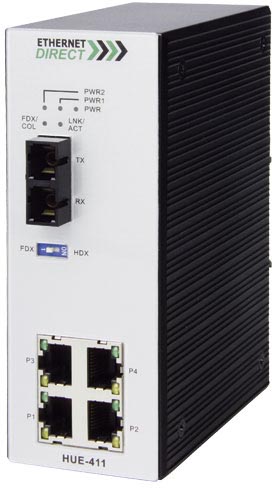

HUE-411
Industrial 5 Port Unmanaged Ethernet Switch 4x 10/100Mbps and 1x 100M MM Fibre (SC) Ports
This product has been discontinued by Alloy.
The Husky HUE-411 is an entry-level industrial slimline unmanaged Ethernet switch. This five port device has 4x 100Base-TX RJ-45 and 1x SC terminated multimode fibre optic ports, capable of transmitting data up to 2km.
All copper ports are rated at 10/100Mbps, operate in full and half duplex mode, and are MDI/MDI-X auto-sensing. The HUE-411 also has a single 100Mbps Multimode Fibre Port with SC fibre connection with a distance rating of up to 2Km. The HUE-411 supports an operating temperature range of -10°C to 70° celsius. The switch is housed in a compact metal case.
The Husky series are cost effective, industrially hardened Ethernet switches, specifically designed to operate reliably in electrically harsh, demanding environments and in hazardous locations.
All models in the series share a common specification, which includes design features that provide high level of immunity to electromagnetic interference and power supply surges typically found in industrial plant environments. The switches are equipped with a terminal block to provide dual power inputs with reverse polarity protection. Husky switches provide an integrated power supply for a wide range of voltages (12 to 48V DC) for worldwide operability.
The Husky series are cost effective, industrially hardened Ethernet switches, specifically designed to operate reliably in electrically harsh, demanding environments and in hazardous locations.
All models in the series share a common specification, which includes design features that provide high level of immunity to electromagnetic interference and power supply surges typically found in industrial plant environments. The switches are equipped with a terminal block to provide dual power inputs with reverse polarity protection. Husky switches provide an integrated power supply for a wide range of voltages (12 to 48V DC) for worldwide operability.
| • | Provides 4x 10/100 Mbps Ethernet ports with RJ-45 connectors | |
| • | Provides 1x 100Mb Multimode Fibre Port with SC Connection | |
| • | RJ-45 Ports support auto MDI/MDI-X crossover | |
| • | Robust Aluminum case complying to IP-31 housing standard | |
| • | Supports operating temperature -10°C to 70°C | |
| • | DIN-Rail, Panel mount or desktop installation | |
| • | Supports 12 to 48VDC redundant power with polarity reverse protection | |
| • | Equipped with Redundant power inputs | |
| • | Terminal block present for master and slave power | |
| Interface | |
| • | Total Ports: 5 |
| • | RJ-45 Ports: 4x 10/100Mbps |
| • | Fibre Ports: 1x 100Mbps Multimode Port with SC Connection |
| • | Alarm Contact: 1A@24VDC |
| Physical | |
| • | Case: IP-31 |
| • | Dimensions: 54 mm (W) x 135 mm (H) x 105 mm (D) |
| • | Installation: DIN-Rail or Wall Mounted |
| Power Requirements | |
| • | Power Input: 12 to 48VDC, redundant power inputs |
| • | Power Consumption: 4.37W |
| Environmental | |
| • | Operating Temperature: -10 to 70 C |
| • | Storage Temperature: -40 to 85 C |
| • | Operating Humidity: 5% to 95% RH (Non-condensing) |
| Regulatory Approvals | |
| • | Shock: IEC 60068-2-27 |
| • | Vibration: IEC 60068-2-6 |
| • | Free Fall: IEC 60068-2-32 |
| • | MTBF: 380,973 hours based on Mil-Hdbk-217F, GB |
