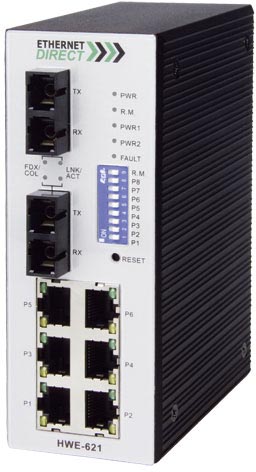

The HWE-621 is a web smart Industrial 8-port Fast Ethernet Switch. It has six 10/100TX RJ-45 ports and 2 100Base-FX Multimode Fibre (SC) Ports, supporting distances up to 2km.
With web-based management, the Husky HWE-621 provides easy to use installation and management features via an intuitive graphical interface.
Husky web managed switches support X-Ring redundancy, which allows the switch to reconfigure and automatically provide a redundant path in the network. If any part of your network is disrupted or disconnected, the redundant feature allows a fault recovery time of less than 300ms, ensuring your network will not encounter an interruption or failure.
In order to meet the redundancy requirements required in an industrial device, the switches are equipped with a terminal block to provide dual power inputs with reverse polarity protection. An integrated power supply is provided with support for a wide range of voltages (12 to 48VDC) for worldwide operability.
|•||Provides 6 x 10/100 Mbps Ethernet ports with RJ-45 connectors|
|•||Provides 2x 100Base-FX Multimode Fibre Ports with SC Connection|
|•||RJ-45 Ports support auto MDI/MDI-X crossover|
|•||Robust Aluminum case complying to IP-31 housing standard|
|•||Supports operating temperature -10°C to 70°C|
|•||DIN-Rail, Panel mount or desktop installation|
|•||Supports 12 to 48VDC redundant power with polarity reverse protection|
|•||Equipped with Redundant power inputs|
|•||Terminal block present for master and slave power|
|•||Complies with IEEE standards|
|•||X-Ring technology with <300ms recovery time|
|•||IGMP snooping, querier|
|•||Port Based VLAN, 802.1Q Tag-based VLAN's|
|•||Total Ports: 8|
|•||RJ-45 Ports: 8x 10/100Mbps|
|•||Fibre Ports: 2x 100Base-FX Multimode Fibre Ports with SC Connection|
|•||Alarm Contact: 1A@24VDC|
|•||Dimensions: 54 mm (W) x 135 mm (H) x 105 mm (D)|
|•||Installation: DIN-Rail or Wall Mounted|
|•||Power Input: 12 to 48VDC, redundant power inputs|
|•||Power Consumption: 7.68W|
|•||Operating Temperature: -10 to 70 C|
|•||Storage Temperature: -40 to 85 C|
|•||Operating Humidity: 5% to 95% RH (Non-condensing)|
|•||Shock: IEC 60068-2-27|
|•||Vibration: IEC 60068-2-6|
|•||Free Fall: IEC 60068-2-32|
|•||MTBF: 315,109 hours based on Mil-Hdbk-217F, GB|
