This product has been discontinued by Alloy.

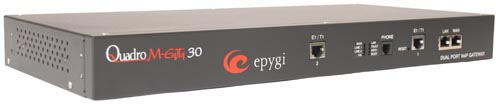

The QuadroM Dual E1/T1 30 supports upto 30 simultaneous G.729 calls. Sound quality and application integration match the quality of the QuadroM E1/T1 with single port.
The QuadroM includes call routing and auto attendant capabilities, as well as voice prioritization over data and sophisticated firewall and security elements. It is constructed with sturdy rack mountable housing that permits the inclusion of a built in power source and cooling fan for heavy duty operation and extended life span. In all, a powerful choice for growing companies seeking to maximize the benefits of VoIP.
IP Enable your Legacy PBX
Epygi offers cost effective additions to an existing telephony network to bring the true benefits of VoIP to you. Integrating a QuadroM E1/T1 Gateway into an existing network will allow for inexpensive communication between multi-site locations.
Flexible Call Routing
The QuadroM Gateway can make intelligent routing decision depending on the type of call and destination digits. This allows the gateway to make Least Cost Routing decisions on the fly. Allowing legacy or pure IP solution to take advantage of the VoIP savings and flexibility.
|•||Network mode - Connects to E1 lines of the Central Office (Onramp 10/20/30)|
|•||User mode - Connects to an E1 interface of a PBX|
|•||Allows up to 30 (E1) parallel phone calls|
|•||Supports RADIUS (Remote Authentication Dial-In User Service) for authentication and billing purposes regarding calls from and to E1/T1|
|•||Supports detailed customised dialling plans both VoIP and PSTN|
|•||Comprehensive caller statistics, call forwarding, Auto-Attendant|
|•||Voice coding G.711 (a, u; 64 kbit/s) G.723, G.726, G.729, iLBC|
|•||Advanced Echo cancellation|
|•||1x short-loop FXS port (RJ11)|
|•||2x E1/T1 ports to the Central Office (RJ45)|
|•||1x LAN Ethernet 10/100 BASE-T port (RJ-45)|
|•||1x WAN Ethernet 10/100 BASE-T (RJ45)|
|•||Radius Client (RFCS: 2865, 2866)|
|•||Measurements: 48.0 x 19.2 x 4.5 cm|
|•||Weight: 1090 g|
|•||Operating: 5°C - 40°C|
|•||Storage: 5°C - 60°C|
|•||Humidity: 5% - 90% non-condensing|
