This product has been discontinued by Alloy.

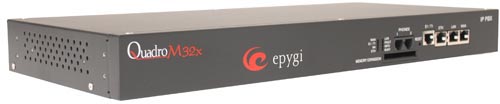

The QuadroM32x IP PBX was designed for larger businesses with a greater need for IP extensions and SIP trunks.
Conferencing and Automatic Call Distribution are a few of the unique features to this product. Third party integration with Unified Multimedia Communications platforms is another key solution for large businesses.
Expanding the digital and analog trunking capacity of the QuadroM32x is simple using Epygi Quadro Gateways. Epygi's FXO, ISDN, and E1/T1 Gateways with the Quadro and QuadroM IP PBX line. This flexibility will allow our customers to satisfy any configuration need.
Integrated Conference Server
Conferencing is a common feature used by today's large organizations. The QuadroM32x features an optional 64 person conference bridge with the same features found on our standalone Quadro Conference Server. The presenter can mute participants, assign speakers and track overall activity. Regular participants can also view the active meeting and can indicate a request to speak during a muted session. This productivity enhancing tool is easily enabled using a software license key.
The QuadroM32x also offers a built-in E1/T1 digital trunk interface. This link can be used as the primary interface or as a redundant link while utilizing an ITSP as the primary service. Redundant Ethernet links are also included for secondary failover networks or a voice DMZ.
|•||Increased reliability & redundancy|
|•||True Enterprise grade solution|
|•||1x E1/T1 port to the Central Office (RJ45)|
|•||2x short-loop FXS ports (RJ-11)|
|•||1x LAN Ethernet 10/100 BASE-T port (RJ-45)|
|•||1x Ethernet 10/100 BASE T port (RJ45)|
|•||1x WAN Ethernet 10/100 BASE T (RJ45)|
|•||32 SIP phones by default|
|•||Up to 160 additional SIP phones may be added with feature keys|
|•||All SIP phones can be connected both from LAN or WAN side|
|•||Plug-and-Play with select IP Phone manufactures|
|•||2 Analogue phones (or other analogue devices) to connect via FXS ports|
|•||Up to 64 simultaneous VoIP calls with external parties|
|•||Unlimited station to station calling for IP phones|
|•||Unlimited station to station calling for analogue phones|
|•||30/24 PSTN calls via E1/T1 with external parties|
|•||Measurements: 48.0 x 19.2 x 4.5 cm|
|•||Weight: 1090 g|
|•||Operating: 5°C - 40°C|
|•||Storage: 5°C - 60°C|
|•||Humidity: 5% - 90% non-condensing|
