This product is no longer stocked by Alloy

Vidyo

AUD-PHX-OCT-4RA

Octopus Audio Conf Mixer Base Unit wth 4 Mics With Vidyo Maintenance Agreement

The Octopus is an Audio Conferencing Mixer that gives you crystal clear audio. Using the Octopus allows you the freedom to mount microphones and speakers anywhere in the room (ceiling, walls, and table tops) for professional sound and a sleek look.

Vidyo
discontinued
Alternate Text
AUD-PHX-OCT-4RA
AUD-PHX-OCT-4RA
AUD-PHX-OCT-4RA

This product is no longer stocked by Alloy

Vidyo

AUD-PHX-OCT-4RA

Octopus Audio Conf Mixer Base Unit wth 4 Mics With Vidyo Maintenance Agreement

The Octopus is an Audio Conferencing Mixer that gives you crystal clear audio. Using the Octopus allows you the freedom to mount microphones and speakers anywhere in the room (ceiling, walls, and table tops) for professional sound and a sleek look.

Resources
Description

The Octopus is an Audio Conferencing Mixer that gives you crystal clear audio. Using the Octopus allows you the freedom to mount microphones and speakers anywhere in the room (ceiling, walls, and table tops) for professional sound and a sleek look.

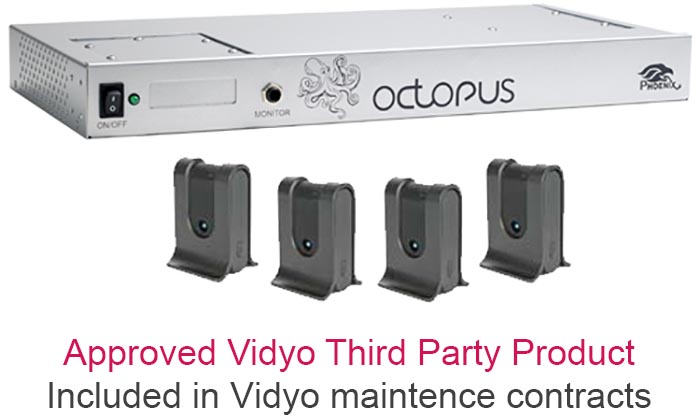

Phoenix Octopus (MT-454-PA) professional audio mixer with echo cancellation and 1935.00 2150.00 1Y USB interface to Vidyo conferencing products. Includes Raven tabletop microphone bundle (4 mics in bundle). Speakers not included. Supported by all VidyoRoom and VidyoPanorama products. Recommended for use with VidyoRoom HD-220 and HD-230.

The Octopus has a high powered DSP and technology that automatically monitors and mixes the audio. Although this may sound complicated, we designed it for simple set-up & use, giving you a "set it and forget it" solution.

Each Octopus has four microphone inputs (each input can also be designated as a unique auxiliary or sound reinforcement channel), however, the Octopus provides unlimited daisy chain capability, and allows for multiple connectivity options. It comes standard with USB and RCA connectors for VoIP and Video Codec connectivity, with the option of adding a PSTN (analog telephone) interface or a digital telephone interface. The Phoenix Octopus can be ordered with an optional 40 watt, 4-output amplifier for powering speakers.

The Octopus MT454-PA is an ideal USB solution for:



  • Small to very large conference rooms


  • Classrooms and training rooms


  • Courtrooms and depositions


The Octopus is compatible with PC (Windows and Linux) and Macintosh (MAC OS).

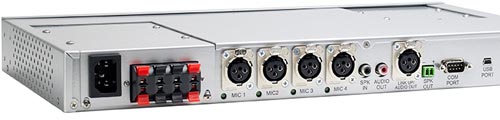

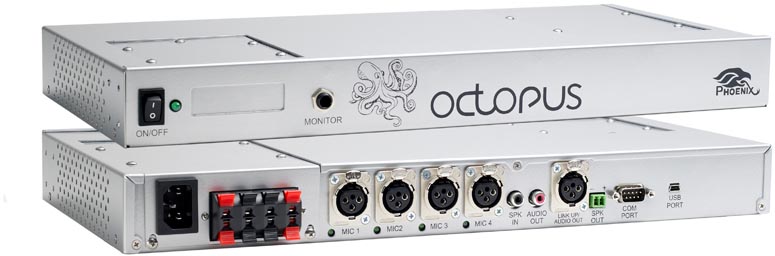

Octopus USB Base Unit (MT454-PA) connects via:

Digital Output – USB to your computer or Video Conferencing system - this connection is for any session using your computer, such as Voice Over IP applications (Skype, Vidyo, etc.).

Analogue Output – RCA, XLR, Phoenix speaker output connectors.

Speakers – Spring-clip connectors.
Features
Echo Cancellation
Noise Suppression
Full Duplex Communication
De-reverb Filtering
Automatic Gain Control
Phantom Power Supply (3V & 24V)
Beamforming Microphone Array Technology
The Octopus will assess the signals picked up by all the microphones, and decide, instantaneously, which one(s) will take part in the mixing and with what level of emphasis
Bridging (Bridging allows for 3-way communication between multiple connection sources, such as telephone, VoIP and Video Codec)
  Microphones
Small footprint
Onmi-Directional
Mute button
25 foot attached cable
durable aluminium casing
AUD-PHX-OCT-4RA
