Description

Patton's easy to implement high speed, long range CopperLink 2161 Ethernet Extender Kit comprises a pair of local and remote devices which support network links over UTP wiring of up to 8.3km (5.2ml) range and up to 22.8Mbps data throughput speed.

Comprising three models, Patton's CopperLink Model 2160 Series simplifies and provides cost-effective network extension by utilizing pre-existing twisted pair infrastructure, opening the door to low-cost and easily implemented LAN extension. copperlink 2160 LAN Extenders are easy to use and take advantage of existing copper twisted-pair infrastructure to connect LANs at high speed and over long distances.

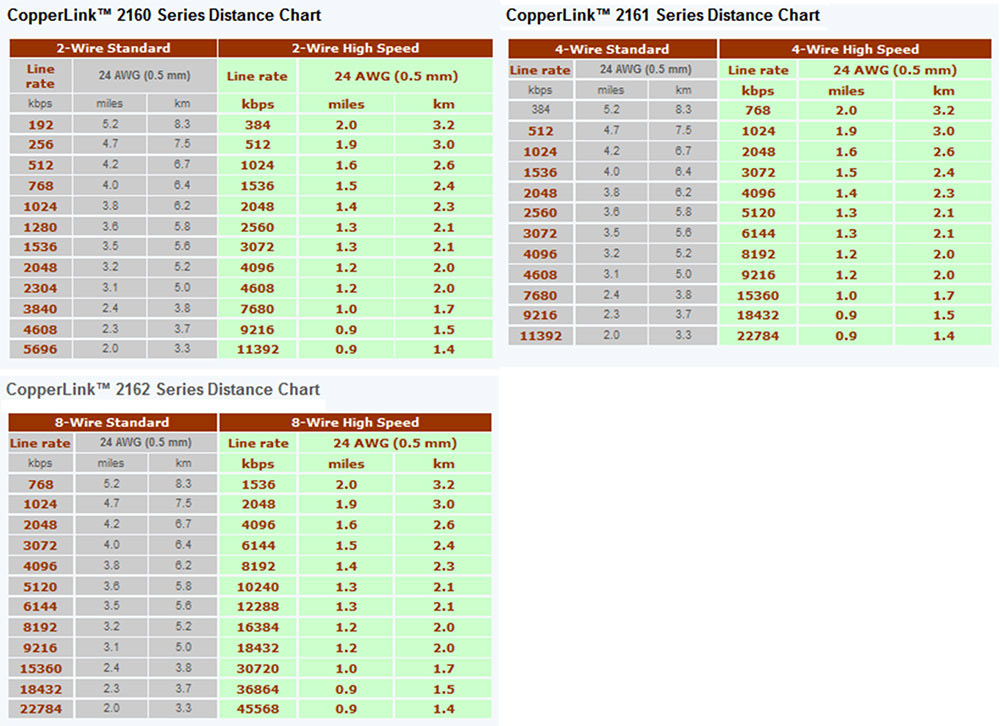

This model, the CopperLink 2161, can achieve the following data throughput speeds and ranges (note that maximum and minimum specifications are given, and that the product can be configured to a range of intermediary confgurations.
Features
Model CopperLink 2161: maximum data speed of 22.8Mbps, maximum extended link range of 8.3km (5.2ml)
2160 Series data rates - up to 45 Mbps
2160 Series maximum range - 24,000 feet (7,315 meters)
Get reliable broadband connectivity with fullduplex
Integrated 4 port 10/100 Ethernet Switch
Transparent LAN Bridging - Passes higher layer protocols and supports 802.1Q VLAN tagging
Automatic Learning, Aging and Filtering
Only allows packets with addresses outside the LAN to be forwarded
QoS, CoS, and VLAN Support
Web and SNMP Manageable
Remote manage the unit from anywhere in the world
