ALLOY

BCU5020-305

305 Metre Cat. 5e Pull Pack. Outdoor Grade 4-pair Solid Core Cable

Twisted pair unterminated 4-pair network cable designed for outdoor installation of Gigabit, Fast Ethernet or Ethernet network cable segments. 'Pull Pack' format for easy handling.

ALLOY
Alternate Text
BCU5020-305
BCU5020-305
BCU5020-305

ALLOY

BCU5020-305

305 Metre Cat. 5e Pull Pack. Outdoor Grade 4-pair Solid Core Cable

Twisted pair unterminated 4-pair network cable designed for outdoor installation of Gigabit, Fast Ethernet or Ethernet network cable segments. 'Pull Pack' format for easy handling.

Description

Twisted pair unterminated 4-pair network cable designed for outdoor installation of Gigabit, Fast Ethernet or Ethernet network cable segments. 'Pull Pack' format for easy handling.

Solid core UTP cable for use in 'long run' permanent network cable installations. BCU5020-305 is a 4-pair outdoor grade cable designed for use in the installation of UTP cable in undeground ducts and other external cable installation environments. supplied in a 'Pull Pack' carton for ease of use.

Conforms to the TIA standard for twisted pair cable systems as defined in the ANSI/TIA/EIA-568-A specification and subsequent TSB-95 clarification. The Category 5e cable specification is defined to utilise frequencies up to 100 MHz. Terminate using T568A pin-out assignments (or the now deprecated T568B). Cat. 5e cable can be used in Gigabit Networks (although Cat. 6 cable will provide superior performance) and in Fast Ethernet and Ethernet networks. Cat. 5e cable is backwards compatible to the Cat. 5 cable specification.

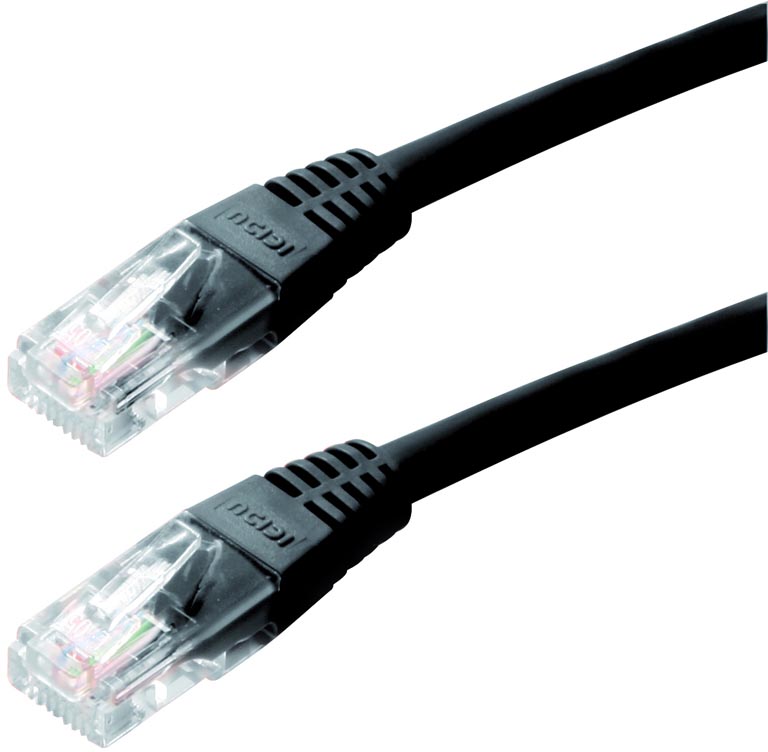

Alloy offers a wide range of Cat 5e indoor grade patch leads up to 25 metre length, terminated with RJ-45 connectors.

Internal grade Cat 5e stranded and solid core Pull Packs also available.
Features

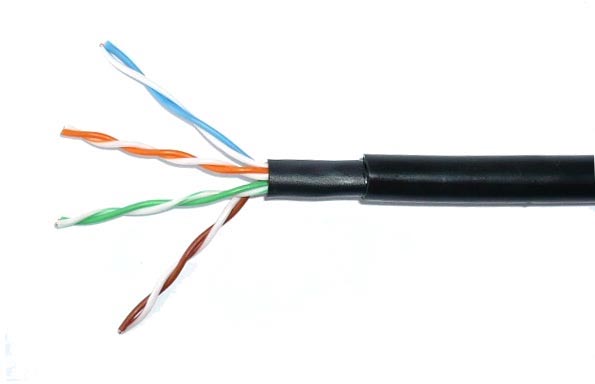

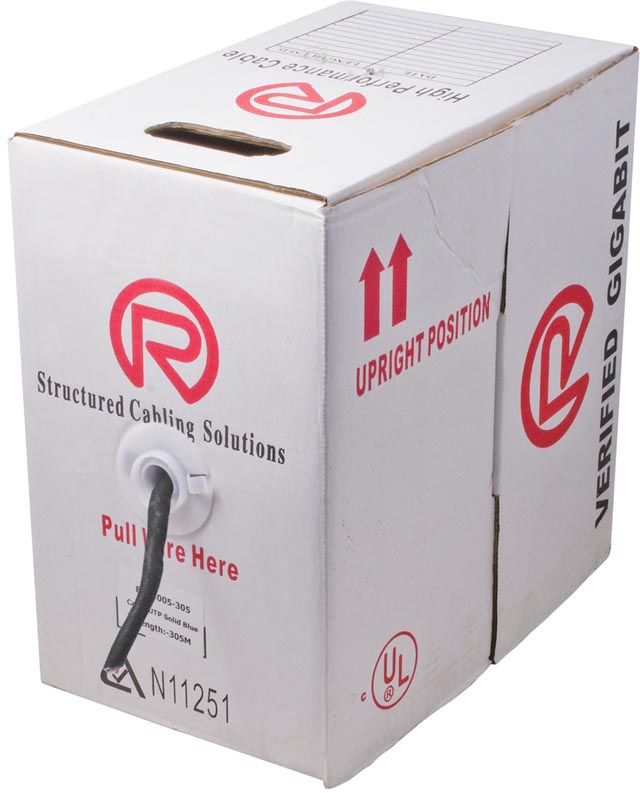

305 metres of solid core unterminated 4-pair Cat. 5e external grade UTP cable in handy 'Pull Pack' carton
For use in 'long run' permanent outdoor network cable installations such as in ducts.
Black sheathing
Conforms to ANSI/TIA/EIA-568-A (TSB-95) specification
Designed for use in 100Base-TX and 10Base-T Ethernet environments
Can be used in Gigabit Ethernet (1000Base-T, 1000Base-TX) environments, but Cat. 6 cable provides better performance
BCU5020-305
