ALLOY

CWDMSFP1570.80

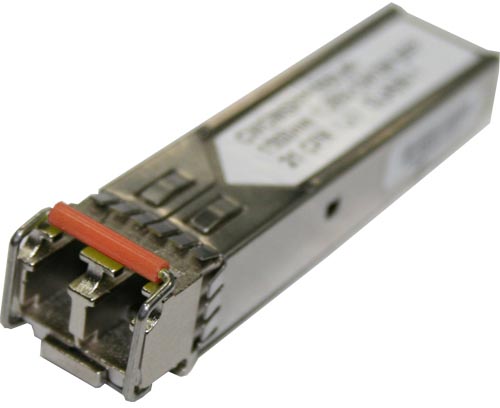

Gigabit Single Mode CWDM SFP Module

The CWDMSFP1570.80 is a 1000Base-ZX Single Mode CWDM based SFP module that can be installed into switches supporting a gigabit based SFP slot.

ALLOY
Alternate Text
CWDMSFP1570.80
CWDMSFP1570.80

ALLOY

CWDMSFP1570.80

Gigabit Single Mode CWDM SFP Module

The CWDMSFP1570.80 is a 1000Base-ZX Single Mode CWDM based SFP module that can be installed into switches supporting a gigabit based SFP slot.

Description

The CWDMSFP1570.80 is a 1000Base-ZX Single Mode CWDM based SFP module that can be installed into switches supporting a gigabit based SFP slot.

The CWDMSFP1570.80 is a 1000Mb Single Mode SFP module suitable for a wide range of switches supporting a SFP interface. Distances of up to 80Km can be achieved.

CWDM based fibre optic transceivers are available in 18 different wavelengths ranging from 1270nm through to 1610nm.

The flexibility of the SFP interface allows users the ability to interchange modules at their convenience. This allows administrators to upgrade their cabling infrastructure without the need to upgrade their switching equipment.

SFP modules are hot-swappable adding another level of convenience for the administrator.
Features
Up to 1.25Gb/s bi-directional data links
18 CWDM DFB wavelengths laser and PIN photodetector for 40km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
80Km maximum transmission distance
RoHS Compliant
+3.3V single power supply
Temperature range: 0° to +70°C
CWDMSFP1570.80
