Description

Providing up to 64 transcoded calls, the SmartNode™ 5480 bridges the wide range of IP PBX products to their service providers ensuring security and a high level of efficiency in the VoIP network.

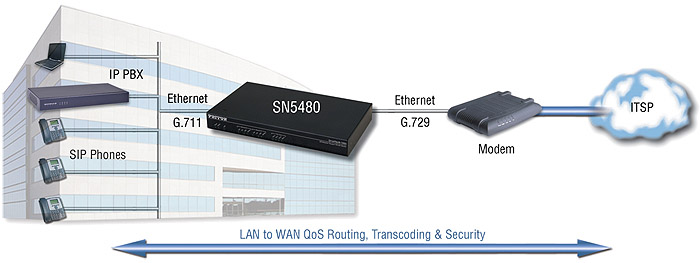

The SmartNode 5480 Enterprise Session Border Router is a high performance solution that bridges a wide range of IP PBX products to their service providers ensuring security and a high level of efficiency in the VoIP network. Connecting the Enterprise's LAN to an Internet Telephony Service Provider (ITSP), the SN5480 creates a single conduit for multimedia components including voice, video and data. Evolving from Patton's award winning SmartNode 5400 Series, the next generation SmartNode 5480 Series comes now with IPv6 upgradeable hardware.


Through the SIP Back-to-Back User Agent, the SN5480 provides a common interface into the service provider network providing resolution of any differences between the SIP from the IP PBX and the service provider softswitch. Additionally, the SN5480 provides CODEC transcoding for up to 64 SIP sessions insuring the most efficient use of available bandwidth for both voice and data. Reduce WAN-access bandwidth requirements by converting high-bandwidth G.711 calls on your LAN into lower-bandwidth G.723 calls for WAN transport.


For added security, the SN5480 includes SIP-aware NAT and access controlled lists (ACLs) for maintaining secure communications when SIP traffic crosses the Enterprise edge.


In addition, routing capabilities include RIP v1/v2, virtual router redundancy protocol (VRRP), loopback interfaces as well as advanced techniques like policy based routing (PBR). Furthermore, QoS keeps malicious traffic from effecting bandwidth requirements of PBR-marked essential traffic and Downstream QoS ensures important voice and fax calls do not get bogged down by such resource hungry lower priority TCP traffic as FTP downloads.


For survivability, the SN5480 is equipped with a link status based routing function. This function, together with SIP registrar, enables survivable telephony services to be deployed between intra-office SIP clients in case there is a failure at the SIP provider.

Features
VoIP Transcoding
  Capacity for up to 64 SIP-SIP calls with transcoding and 196 SIP Sessions without transcoding.
IP Routing
  RIP v1/v2, VRRP, Policy Based Routing, Loopback/Virtual Interface, NAPT-capable edge router.
QoS and Security
  Deliver secure, toll-quality voice communications with Patton’s DownStreamQoS™ with adaptive traffic management and shaping—plus secure voice-over-VPN with AES/DES strong encryption and extended ACL capabilities.
10/100/1000 Ethernet
  One 10/100/1000 WAN Ethernet port and one 10/100/1000 LAN Ethernet port.
Proprietary Software
  Utilizes proprietary SmartWare™ Software for added security.
Flexible mounting options
  The device can be placed on a desktop or installed in a 19-inch rack using the optional rack ear kit (INS-KIT-RACKEARS-11/19).
