ALLOY

GCR2000S5.20

Gigabit Standalone/Rackmount Media Converter

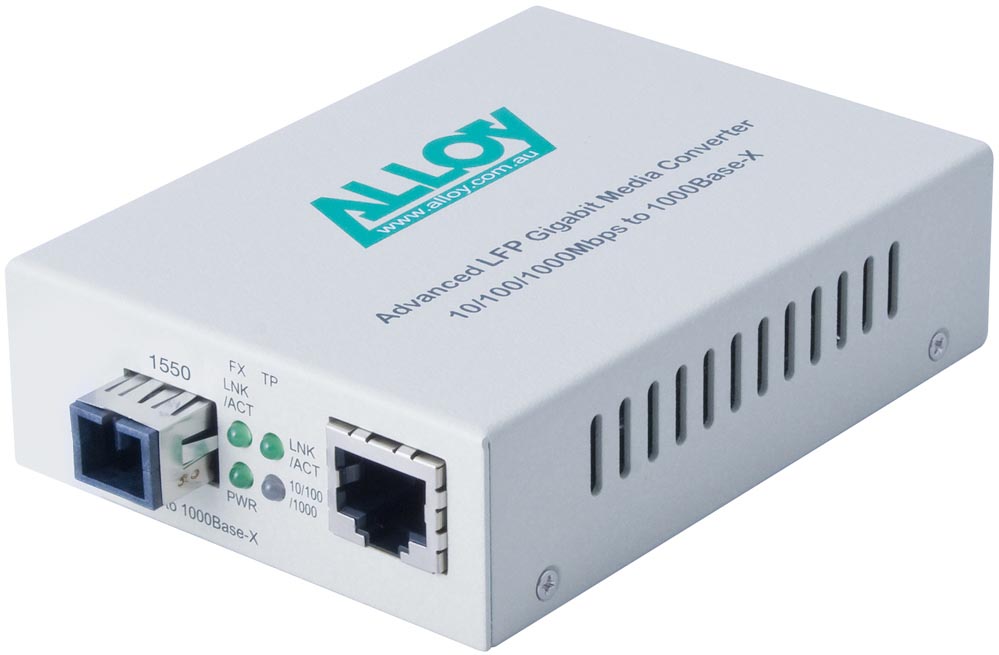

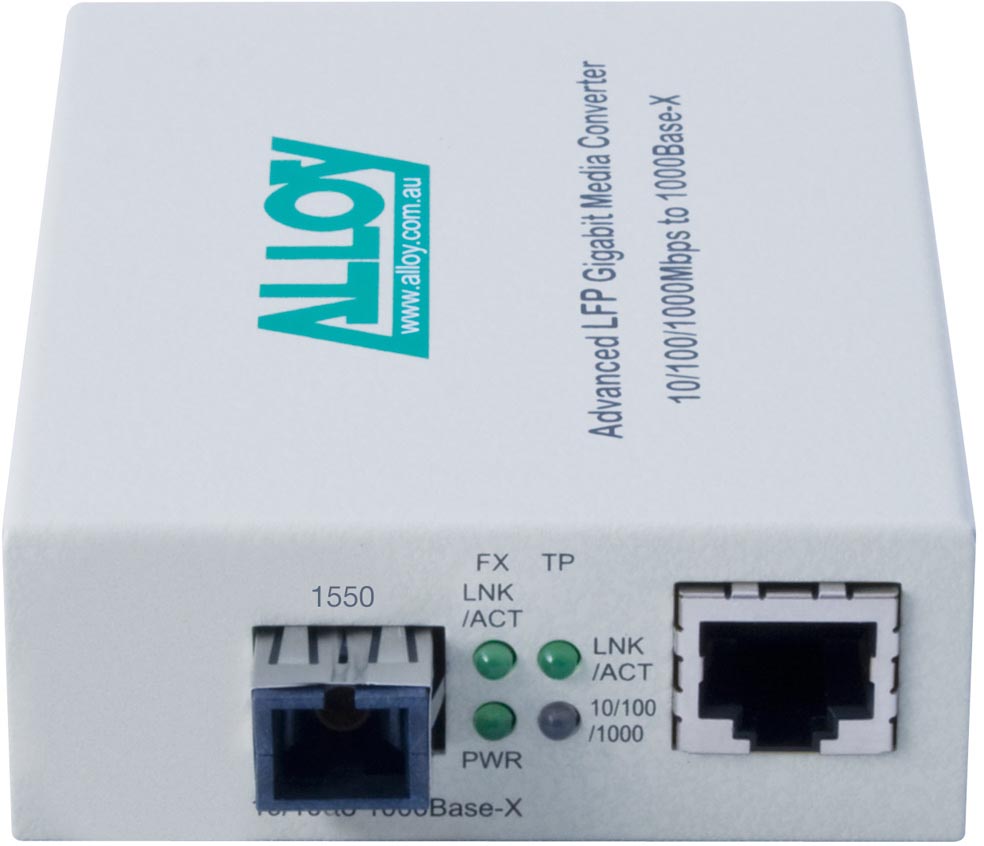

The GCR2000S5.20, a GCR2000 Series Gigabit Ethernet Media Converter, can be used 'Standalone' or in an Alloy DCR12 Series Media Converter Chassis, and has 1000Base-T and 1000Base-LX WDM 1550nm RX singlemode/singlecore ports, with 20Km. max range.

ALLOY
SRP $781.00
Alternate Text
GCR2000S5.20
GCR2000S5.20
GCR2000S5.20

ALLOY

GCR2000S5.20

Gigabit Standalone/Rackmount Media Converter

The GCR2000S5.20, a GCR2000 Series Gigabit Ethernet Media Converter, can be used 'Standalone' or in an Alloy DCR12 Series Media Converter Chassis, and has 1000Base-T and 1000Base-LX WDM 1550nm RX singlemode/singlecore ports, with 20Km. max range.

Description

The GCR2000S5.20, a GCR2000 Series Gigabit Ethernet Media Converter, can be used 'Standalone' or in an Alloy DCR12 Series Media Converter Chassis, and has 1000Base-T and 1000Base-LX WDM 1550nm RX singlemode/singlecore ports, with 20Km. max range.

The GCR2000S5.20 is a dual purpose Gigabit Ethernet WDM Media Converter. It can be used as a standalone discrete device, or can be installed as a Media Converter Module into any Alloy 12-slot Media Converter Chassis. Whichever mode the GCR2000S5.20 is used in, it is a flexible solution ideal for a wide variety of media conversion applications in Gigabit Ethernet network environments, particularly where network fibre cable cores are at a premium. With dual 1000Base-T auto-sensing 10/100/1000Mbps RJ-45 and 1000Base-LX SC terminated WDM singlemode ports, the GCR2000S5.20 is an ideal solution for UTP/STP copper to Gigabit Ethernet singlemode/singlecore fibre media conversion tasks. The devices IEEE 802.3ab compliant RJ-45 port supports Gigabit, Fast Ethernet and Ethernet UTP/STP links at up to a 100 metres range, and the 1000Base-LX WDM port multiplexes both Send and Receive datasreams on a single fibre core, up to a maximum fibre cable range of 20 kilometres. This WDM capability halves fibre core usage, and can avoid the need to lay new cable where existing fibre core capacity is already fully utilised. The GCR2000S5.20, which utilises 1550nm wavelength for it's Tx datastream, must be used with Alloy's GCR2000S3.20 1550 Rx rated WDM Converter (or a similarly specified device) at the other end of the link.

The GCR2000S5.20 is a model from Alloy's GCR2000 Series of Dual Purpose Media Converters. As mentioned above, these converters can be used 'standalone' or installed in an Alloy DCR12 Series Media Converter chassis. Models in the series support most types of Gigabit media conversion, including 10/100/1000Mbps RJ-45 copper to 1000Base-SX multimode fibre (with either LC or SC connectors, maximum fibre cable range of 550 metres), 10/100/1000Mbps RJ-45 copper to 1000Base-LX singlemode fibre (LC or SC connectors for 10 or 30Km ranges), 10/100/1000Mbps RJ-45 copper to 1000Base-ZX singlemode fibre (LC or SC connectors for 50Km ranges), 10/100/1000Mbps RJ-45 copper to 1000Base-LX WDM singlemode/singlecore fibre (SC connectors with 20Km range, with send and receive datastreams mutliplexed over a single fibre core), and 10/100/1000Mbps RJ-45 copper to SFP providing support for any type of Gigabit Ethernet copper to multimode, singlemode or singlemode WDM application available via the installation of a mini-GBIC module. All models in the range are housed in a compact, highly durable all-metal case.

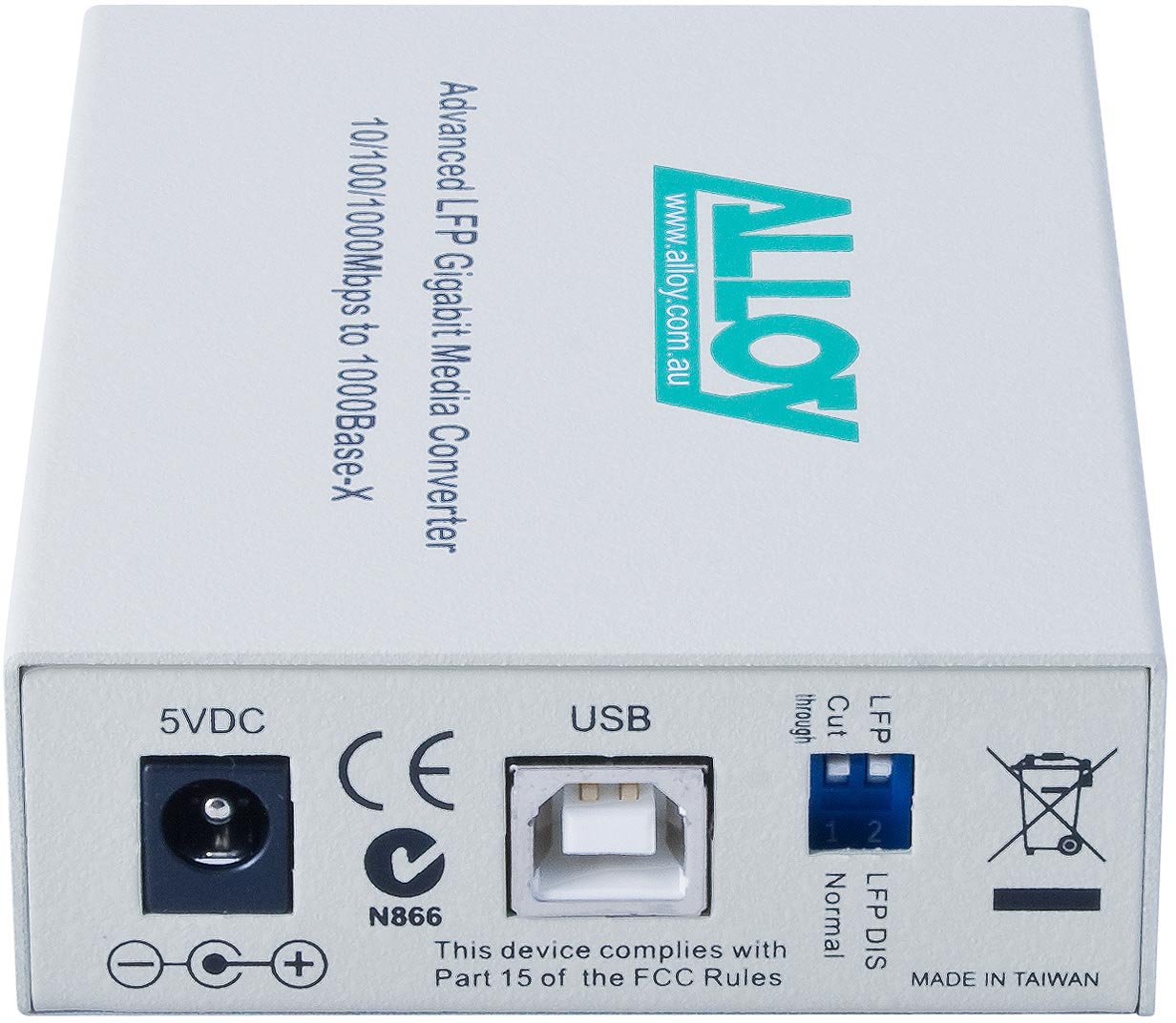

When used in 'standalone' mode as a discrete Media Converter device, all models in the GCR2000 Series can be powered either by an external plugpack (supplied with the Converter), or via a supplied USB cable which can derive power from any v1.1, v2 or V3 USB port. All GCR2000 Series models have four LEDs that monitor the operation status of the Converter, and also a DIP Switch array on the rear panel which are used to manually set LFP status (see below) and the configuration for Jumbo frame support (normal or cut-through). The RJ-45 port on all models are IEEE 802.3ab, auto-sensing MDI/MDIX, with speed, duplex mode and DTE/DCE mode automatically sensed and set.

A particular feature to note for all GCR2000 Series Gigabit Ethernet Media Converters is their support for Link Fault Passthrough (LFP) in both Far-end-Fault (FEF) and Forced Modes (FM). LFP allows these Media Converters to monitor both the fibre and copper RX ports for signal loss. In the case of a loss of RX signal on one media port, the Converter will automatically disable the TX signal to the other media port, thus passing through the link fault LED status. FEF mode enables the Converter to stop sending a link pulse to a LFP capable Converter on the other end of the cable; the link partner Converter will synchronously stop sending data, preventing loss of valuable data transmitted over an invalid link. Combining FM and FEF LFP functions supports troubleshooting and network security capability, as both end devices can be notified of a loss of fibre link and a managed switch connected to a GCR2000 Series Converter can be configured to disable the link and notify administrators of the event.
Features
GCR2000S5.20 model for Gigabit Copper to WDM 'single core' fibre media conversion - up to 20Km fibre range
Dual Purpose GCR2000 Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis
GCR2000 Series: Gigabit Ethernet copper to multimode, singlemode, WDM and SFP Media Conversion solutions
LC and SC fibre connectors supported on individual GCR2000 Series models
Up to 50 kilometres fibre range supported with fixed port MGCR2000 Series Converters
Up to 120 kilometres fibre range supported by MGCR2000SFP Converter
Easy 'Slide-in, Hot Swap' installation into DCR12 Media Converter Chassis systems
Supports Forced and Far-end Fault mode Link Fault Passthrough (LFP)
All GCR2000 models powered by external plugpack or via USB connection
Compact, rugged all-metal case
