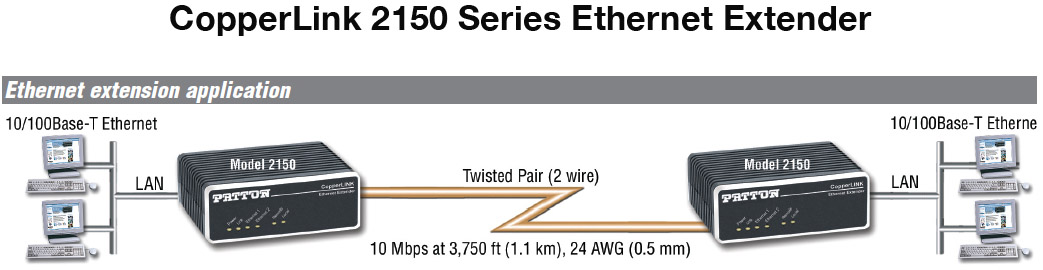

A CopperLink 2150 Series Ethernet Extender Kit offers an efficient and cost effective solution for long range 10 Mbps connections to peered 10/100Base-TX Ethernet LANs, reaching remote PCs and equipment or delivering last-mile ISP services.

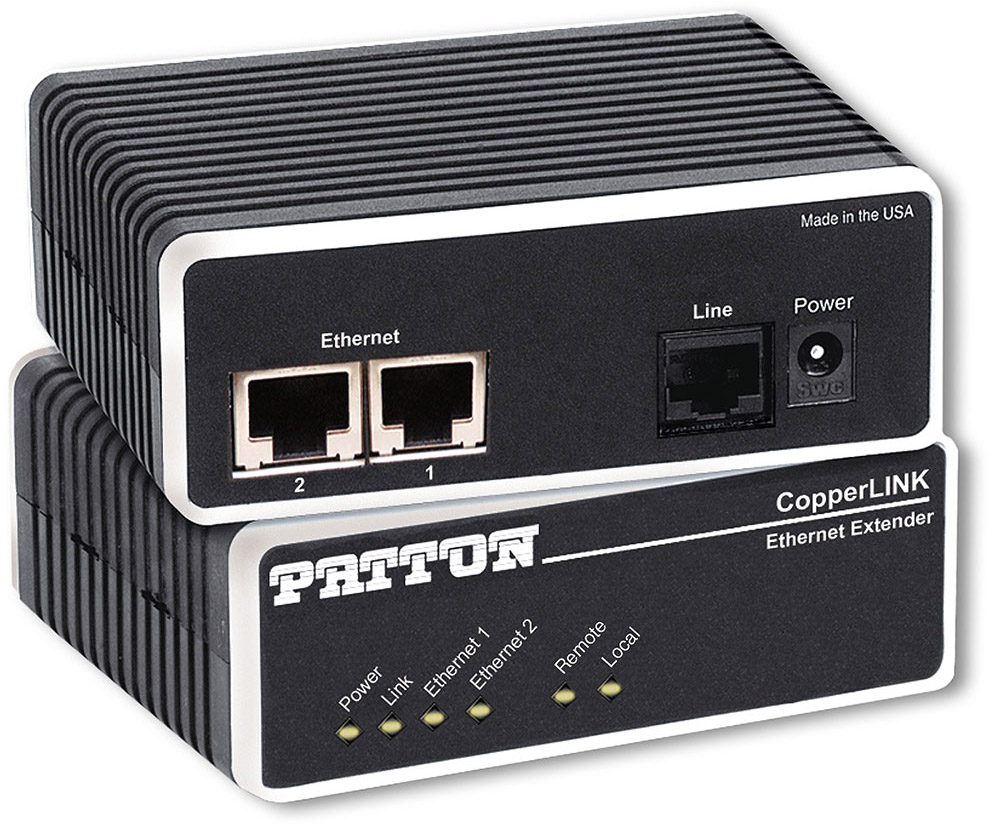

2150 Extenders are supplied as a kit, comprising local and remote devices. Their compact size and connection options make installation easy. The dual 10/100Base-T Ethernet ports are equipped with shielded RJ-45 jacks for connection to an Ethernet hub/switch, PC, or network-enabled device. The CopperLink Line port is equipped with an RJ-45 jack for easy connection to the CopperLink Extenders. For convenient installation, 2150 devices auto-sense and configure for 10Base-T or 100Base-TX as well as full or half-duplex operation. Both local and remote 2150 Extender devices are available for purchase separately.
The CopperLink Ethernet Extender, providing high speed Ethernet extension at 10Mbps, is the ideal product for edu-cational facilities, office buildings, multi-dwelling units, industrial com-plexes, government agencies, and mili-tary installations.

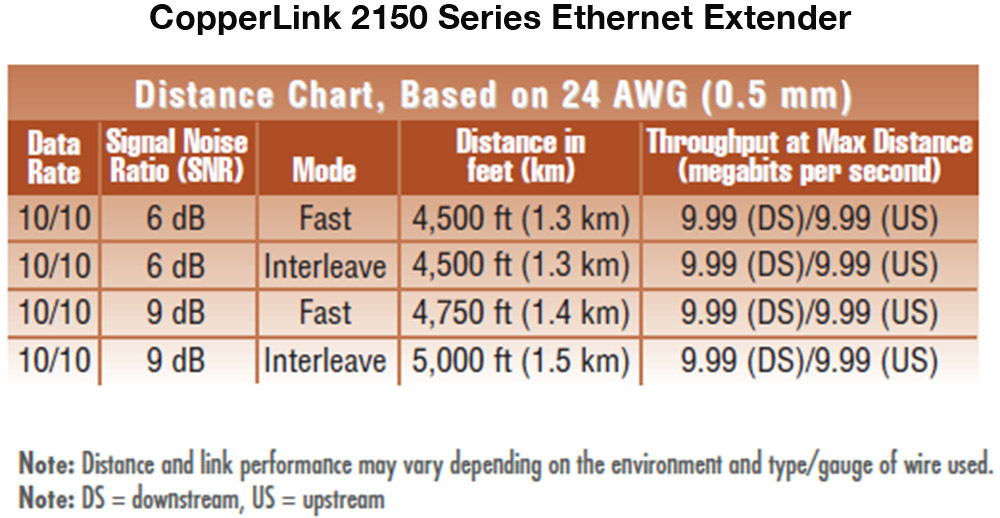

|•||Long-reach, high speed 10Mbps Ethernet Extension - full duplex 10Mbps links up to 1.5 kilometres (5000 feet)|
|•||Seamlessly Connect and Extend your LAN - 802.3 10/100Base-TX LAN connection via built-in shielded RJ-45 port|
|•||Patton CopperLink 2-Wire Connection - easy connection via built-in RJ-45 port|
|•||Dual Auto-sensing full duplex Ethernet - auto 10 or 100Base-TX and full or half duplex Ethernet operation|
|•||Transparent LAN Bridging - passes higher layer protocols and supports 802.1Q VLAN tagging|
|•||Automatic Learning, Aging, and Filtering - oOnly allows packets with addresses outside the LAN to be forwarded|
|•||CopperLink interface RJ-45 (pin 4 = tip; pin 5 = ring)|
|•||Transparent to high layer protocol. Supports 802.1Q VLAN tagging|
|•||CopperLink line rate: 10 Mbps; Data rate: 11.5 Mbps Full-Duplex|
|Front panel indicators|
|•||Power, CopperLink Link, Ethernet Link, Activity, Local, and Remote|
|•||External AC and DC options: AC—120 VAC, 220 VAC, and universal input (UI)—100/240 VAC, or DC—48 VDC, - 24 VDC, and -12 VDC|
|•||FCC Part 15 Class A; EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC; CE Mark|
|•||Temperature: 32–104°F (0–40°C)|
|•||Humidity: Up to 90%, non-condensing|
|•||1.5H x 4.13W x 3.75D in. (3.81H x 10.5W x 9.53D cm)|
|•||0.4 lbs (0.18 kg) without power supply|
