A CopperLink 2151 Series Ethernet Extender Kit offers an efficient and cost effective solution for long range 15Mbps connections to peered 10/100Base-TX Ethernet LANs. The 2151/E-SKD is a replacement Local Extender Device.

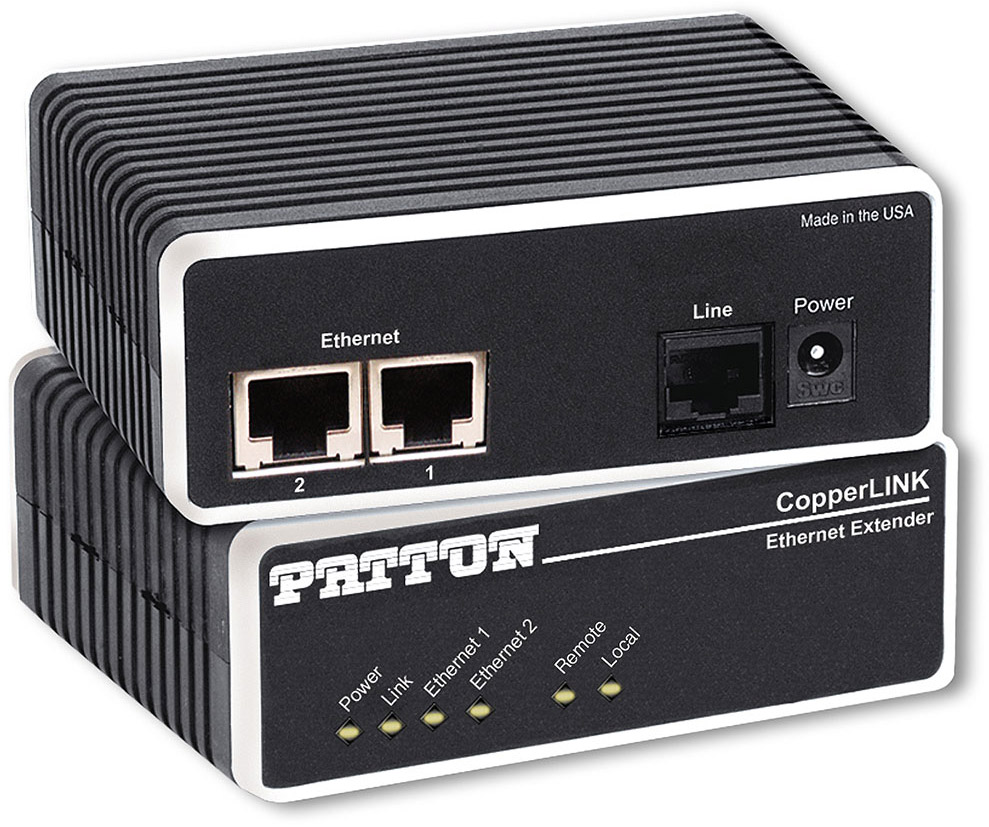

2151 Extenders are supplied as a kit, comprising local and remote devices. Their compact size and connection options make installation easy. The dual 10/100Base-T Ethernet ports are equipped with shielded RJ-45 jacks for connection to an Ethernet hub/switch, PC, or network-enabled device. The CopperLink Line port is equipped with an RJ-45 jack for easy connection to the CopperLink Extenders. For convenient installation, 2151 devices auto-sense and configure for 10Base-T or 100Base-TX as well as full or half-duplex operation. Both local and remote 2151 Extender devices are available for purchase separately.

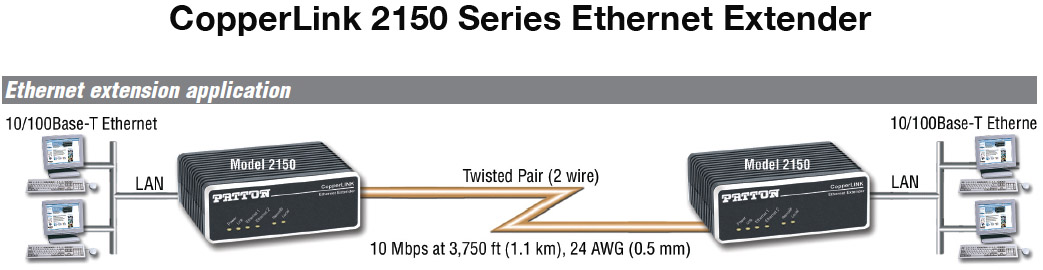

CopperLink applications include Ethernet extension, medical imaging, video-conferencing, and inter-connecting remote devices or remote networks to a central LAN. The multi-rate symmetrical line rates ensure the highest possible data rate is achieved over various lengths and types of copper wire and environments. Multi-rate asymmetrical line rates make the Model 2151 the ideal solution for service providers who want to differentiate their services or extend the reach of their customer base.

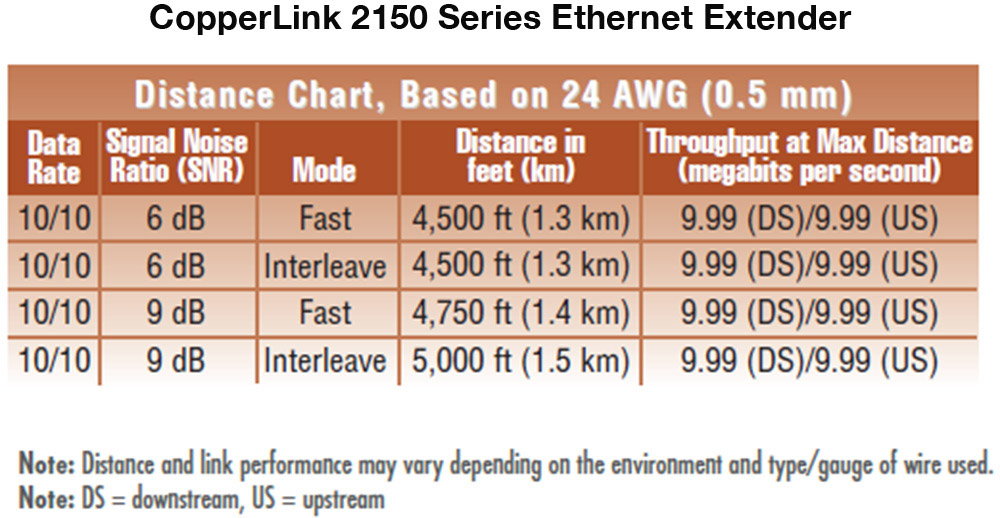

|•||Up to 15Mbps extension of 10/100 Base-TX Ethernet distances - up to 1 mile using 2-wire 24 AWG unconditioned lines|
|•||Seamlessly Connect and Extend your LAN|
|•||Easy 2-wire CopperLink connection via built-in RJ-45 port|
|•||Switch Selectable - Asymmetrical or Symmetrical ine rates up to 15Mbps|
|•||Dual Auto-sensing Full-Duplex Ethernet|
|•||Transparent LAN Bridging - passes higher layer protocols and supports 802.1Q VLAN tagging|
|•||Automatic Learning, Aging, and Filtering - oOnly allows packets with addresses outside the LAN to be forwarded|
|•||RJ-45 (pin 4 = ring; pin 5 = tip)|
|•||Transparent to high layer protocol. Supports 802.1Q VLAN tagging|
|•||CopperLink line rate: up to 15Mbps Full-Duplex|
|Front panel indicators|
|•||Power, CopperLink and QOL (quality of link), Ethernet Link and Activity Status|
|•||External AC and DC options: 120VAC, and universal input (UI)—100–240 VAC, or optional -48 VDC, -24 VDC, or -12 VDC|
|•||FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC|
|•||Temperature: 32–104°F (0–40°C)|
|•||Humidity: Up to 90%, non-condensing|
|•||1.5H x 4.13W x 3.75D in. (3.81H x 10.5W x 9.53D cm)|
|•||0.4 lbs (0.18 kg) without power supply|
