This product has been discontinued by Alloy.
A CopperLink 2173 Series Ethernet Extender Kit offers an efficient and cost effective solution for long range multi-rate connections with line rates up to 70Mbps (symmetrical) or 100Mbps (asymmetrical) over a single twisted-pair voice-grade wire.

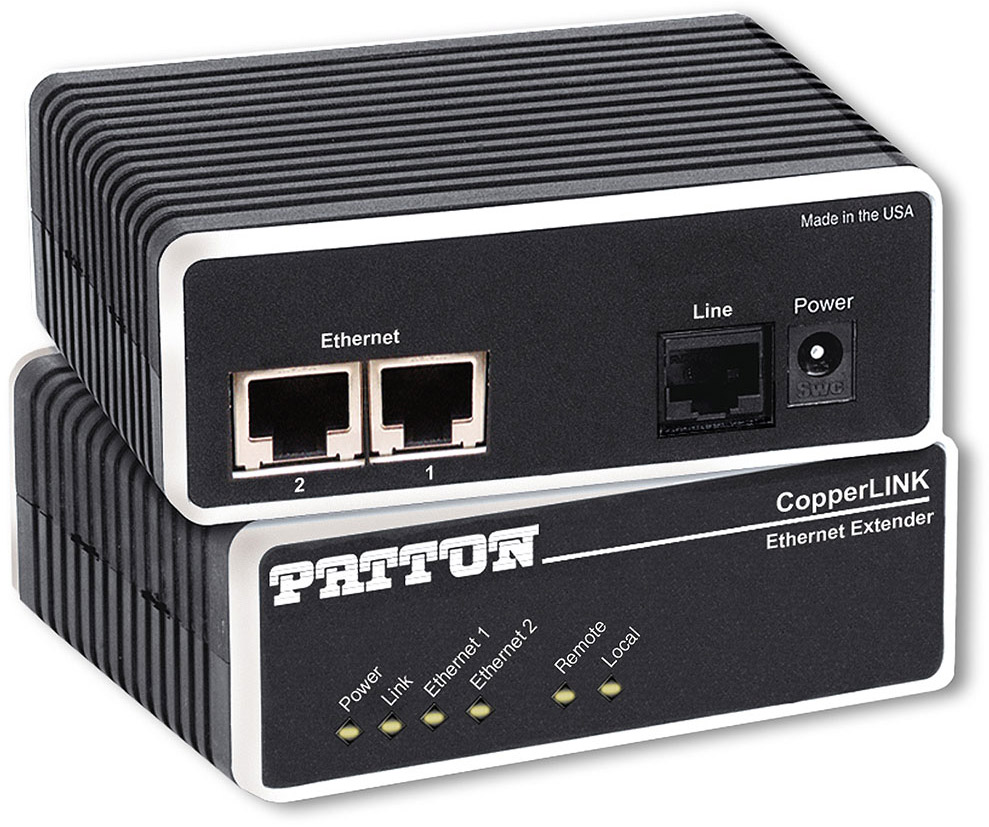

2173 Extenders are supplied as a kit, comprising local and remote devices. Their compact size and connection options make installation easy. The dual 10/100Base-T Ethernet ports are equipped with shielded RJ-45 jacks for connection to an Ethernet hub/switch, PC, or network-enabled device. The CopperLink Line port is equipped with an RJ-45 jack for easy connection to the CopperLink Extenders. For convenient installation, 2173 devices auto-sense and configure for 10Base-T or 100Base-TX as well as full or half-duplex operation. Both local and remote 2173 Extender devices are available for purchase separately.

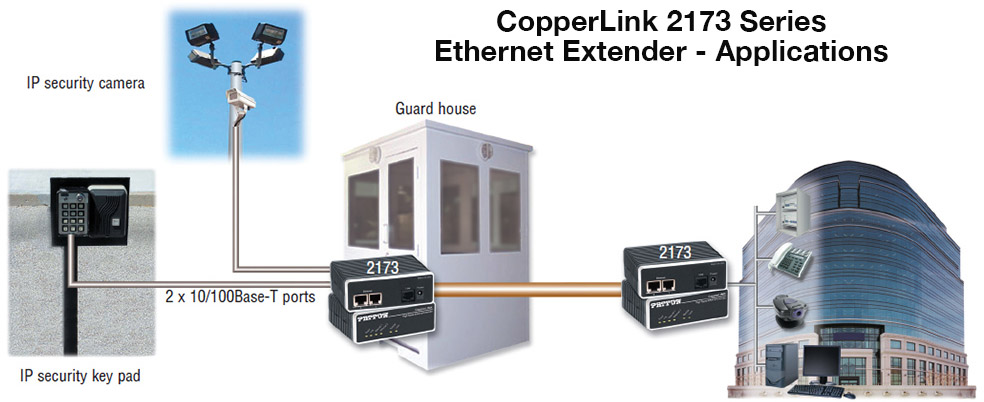

The Model 2173 includes an auto-rate adaptation feature providing the maximum achievable asymmetrical line rate based on environment and the length and gauge/type of cable. Asymmetrical line rates are the ideal solution for applications that require longer extension between their Ethernet devices and for applications that primarily involve high downstream requirements. These asymmetrical applications include high resolution IP video for security, medical imaging, livestock monitoring, underwater video, and internet gaming. Also included in the Model 2173 is the ability to configure the Ethernet Extender for a hard set 25-Mbps symmetrical line rate. Typical symmetrical applications include remote LAN extension, video teleconferencing, and data backhaul.

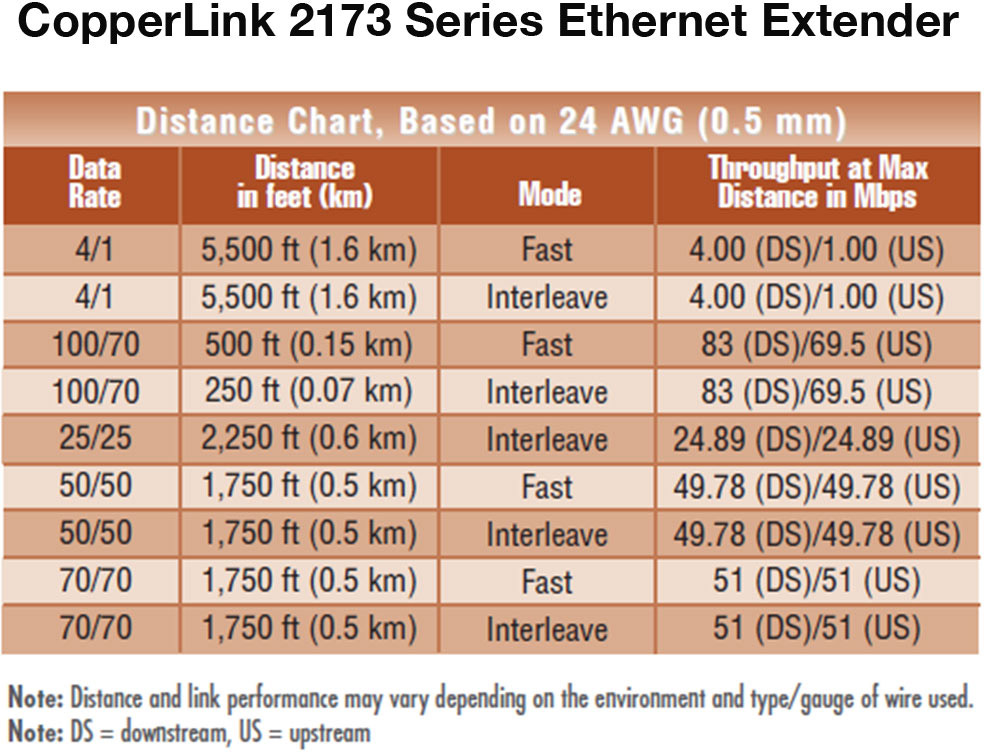

|•||Extends 10/100Base-TX Ethernet up to 4,250 feet over 2-wire 24 AWG twisted pair|
|•||Near fibre speeds Over Twisted Pair cable|
|•||Plug and Play - zero configuration to operate, auto-sensing 10/100 Ethernet ports are, full or half duplex|
|•||Multiple Switch-selectable Line Rates ensures best possible rate vs. reach combination|
|•||Transparent LAN Bridging - Passes higher layer protocols such as 802.1Q VLAN tagging|
|•||Fully transparent to various UP video compression schemes such as WMV, MPEG-4 and MJPEG|
|•||2173 Series Ethernet Extenders are also availbe in a ruggedized version - the Copperlink 2173R Series|
|CopperLink Line Interface|
|•||RJ-45 (pin 4 = ring; pin 5 = tip)|
|CopperLink Line Modulation|
|•||DMT (Discrete Multi-Tone)|
|•||2x 8-position shielded RJ-45 ports. Auto-sensing 10/100Base-TX with half or full duplex operation.|
|•||Multi-rate selectable; up to 100/70Mbps asymmetrical, or 70/70Mbps symmetrical|
|•||Transparent to high layer protocol|
|•||Supports 802.1Q VLAN tagged frames|
|•||Transparent to IP video schemes - fully transparent to compression schemes such as WMV, MPEG-4 and MJPEG|
|•||Line Rate control via 4-position DIP switch|
|•||6 LEDs: Power, Link, Ethernet 1 & 2, Remote, Local|
|•||1.5H x 4.13W x 3.75D in. (38.1H x 105W x 95.3Dmm)|
|•||External universal 100–240 VAC input or -48 VDC|
|•||FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC|
|•||Temperature: 0–40°C; Humidity: 5–90%, non-condensing|
|•||4.17W x 1.52H x 5.0L in. (10.6W x 3.9H x 12.7L cm)|
|•||0.4 lbs (181 g)|
