CopperLink 2173R Ethernet Extenders are a hardened solution for long range multi-rate connections in tough environments, with line rates up 70 or 100Mbps (a symmetrical or symmetrical). The 2173R is a replacement Remote Extender Device.

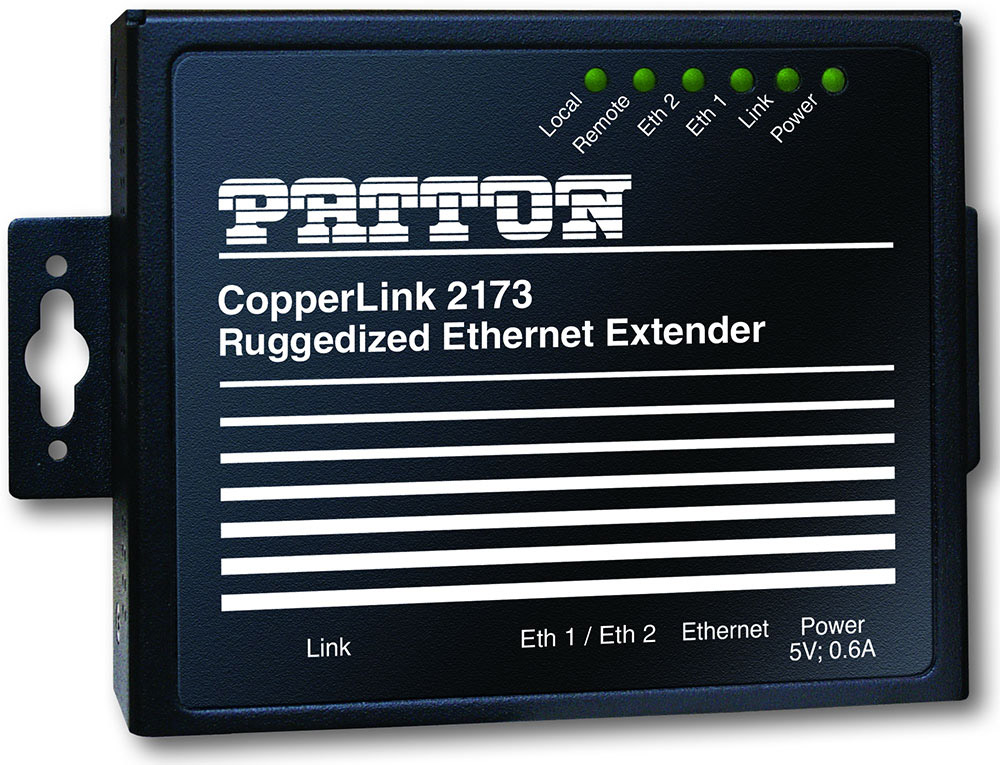

The CopperLink™ 2173R Series is the ruggedised version of Patton's fastest Ethernet Extender. It leverages existing twisted-pair copper cable infrastructure to deliver high-speed Ethernet extension. Providing up to 70/70Mbps symetmetrical or 100Mbps/70Mbps asymmetrical data rate speeds and offering an extended temperature range from -40 to 85°C and a sturdy aluminum case, the 2173R Extender is the perfect solution for delivering tripleplay communications services and other bandwidth-intensive applications in rugged environments.
2173R Extenders are supplied as a kit, comprising local and remote devices. Their compact size and connection options make installation easy. The dual 10/100Base-T Ethernet ports are equipped with shielded RJ-45 jacks for connection to an Ethernet hub/switch, PC, or network-enabled device. The CopperLink Line port is equipped with an RJ-45 jack for easy connection to the CopperLink Extenders. For convenient installation, 2173R devices auto-sense and configure for 10Base-T or 100Base-TX as well as full or half-duplex operation. Both local and remote 2173R Extender devices are available for purchase separately.

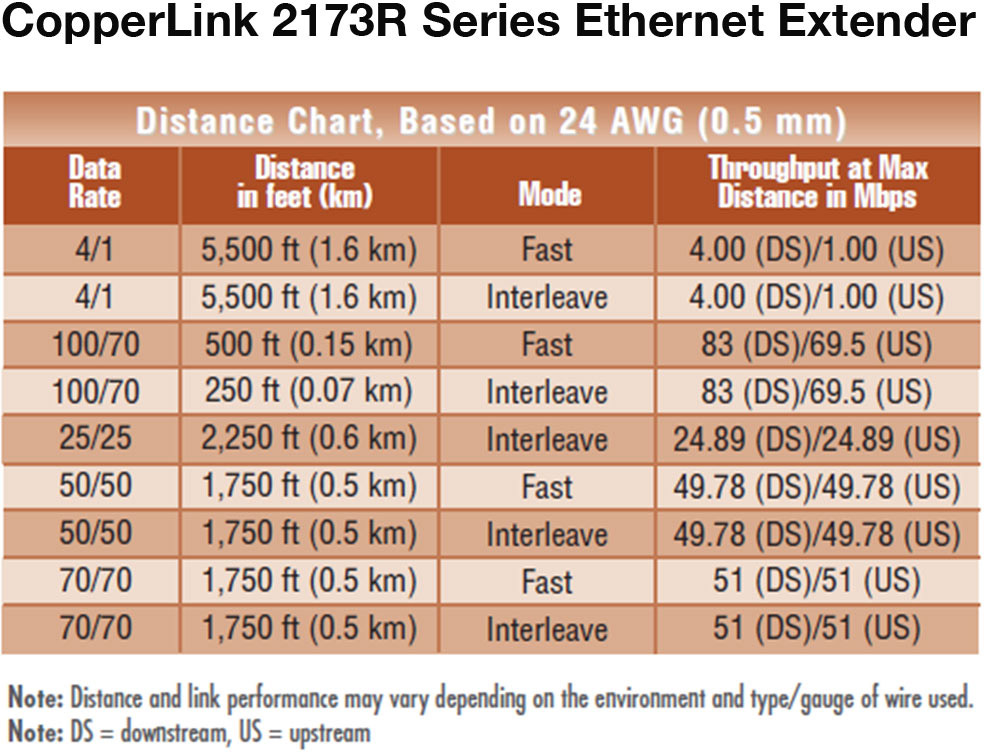

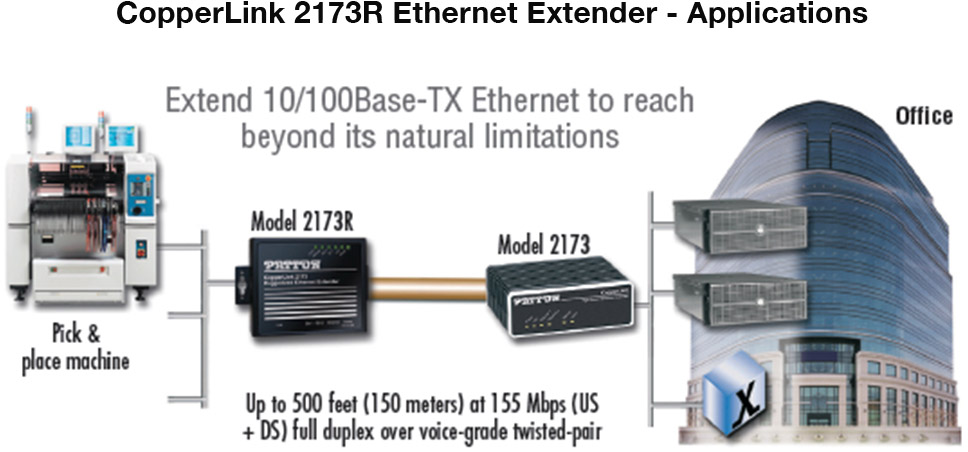

2173R Series Extenders includes an auto-rate adaptation feature providing the maximum achievable asymmetrical line rate based on environment and the length and gauge/type of cable. Asymmetrical line rates are the ideal solution for applications that require longer extension between their Ethernet devices and for applications that primarily involve high downstream requirements. These asymmetrical applications include high resolution IP video for security, medical imaging, livestock monitoring and underwater video. Also included in the Model 2173R is the ability to configure the Ethernet Extender for hard set 25, 50 or 70Mbps symmetrical line rates. Typical symmetrical applications include remote LAN extension, video teleconferencing, and data backhaul.
|•||2173R is a Ruggedised Remote Extender unit - pair with a 2173R/E Remote unit|
|•||Extends 10/100Base-TX Ethernet up to 5,500 feet over 2-wire 24 AWG twisted pair|
|•||Near fibre speeds over Twisted Pair cable|
|•||Plug and Play - zero configuration to operate, auto-sensing 10/100 Ethernet ports are, full or half duplex|
|•||Multiple Switch-selectable Line Rates ensures best possible rate vs. reach combination|
|•||Transparent LAN Bridging - Passes higher layer protocols such as 802.1Q VLAN tagging|
|•||Fully transparent to various UP video compression schemes such as WMV, MPEG-4 and MJPEG|
|•||2173R Series Ethernet Extenders are also availbe in a standard version - the Copperlink 2173 Series|
|•||RJ-45 (pin 4 = ring; pin 5 = tip)|
|CopperLink Line Modulation|
|•||DMT (Discrete Multi-Tone)|
|•||2x 8-position shielded RJ-45 ports. Auto-sensing 10/100Base-TX with half or full duplex operation|
|•||Multi-rate selectable device; up to 100/70Mbps asymmetrical, or 70/70Mbps symmetrical|
|•||Transparent to high layer protocols|
|•||Supports 802.1Q VLAN tagged frames|
|•||Transparent to IP video schemes - fully transparent to compression schemes such as WMV, MPEG-4 and MJPEG|
|•||Line Rate control via 4-position DIP switch|
|•||6 LEDs: Power, Link, Ethernet 1 & 2, Remote, Local|
|•||1.5H x 4.13W x 3.75D in. (38.1H x 105W x 95.3Dmm)|
|•||External universal 100–240 VAC input or -48 VDC|
|•||FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC|
|•||Temperature: -40–85°C; Humidity: 5–90%, non-condensing|
|•||1.12H x 5.57W x 3.57D in. (2.84H x 14.15W x 9.07D cm) with brackets|
|•||0.4 lbs (181 g)|
