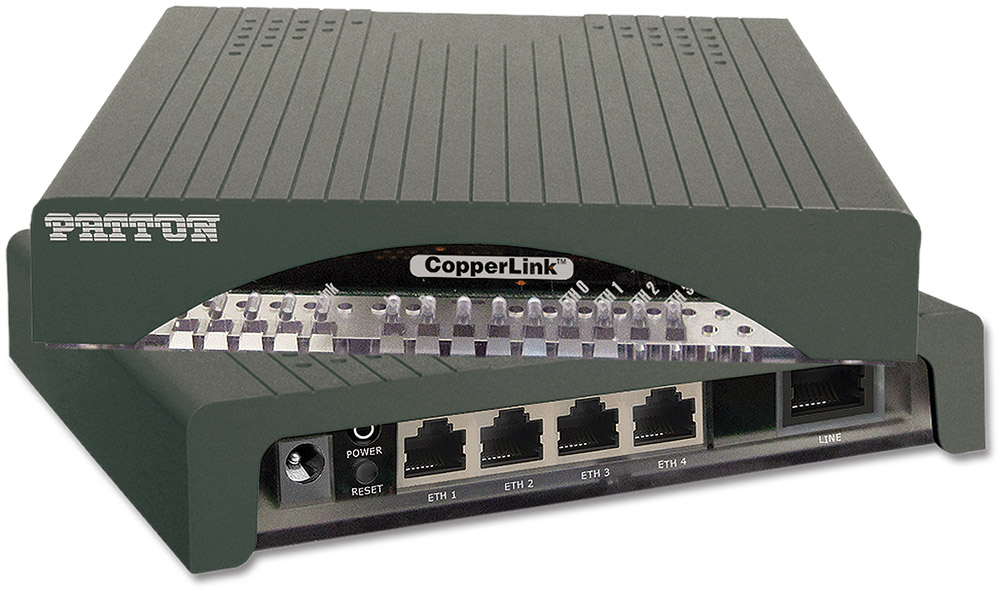

CopperLink 2174 Series Ethernet Extender Kits offer fast, long range multi-rate connections with line rates up to 144 or 168Mbps (symmetrical/asymmetrical) over a single twisted-pair voice-grade wire. Model 2174-2PK has dual 10/100Mbps RJ-45 ports.
The CopperLink 2174 Ethernet Extender comprises five models, all of which leverage existing copper infrastructure to deliver high speed Ethernet connectivity over voice-grade twisted pair, Cat 5e/6/7, or coaxial cabling. Two models additional provide POTS support (2174/S-2PK and 2174/TB/S-2PK). All models feature four user-selectable configuration profiles which - combined with Patton's auto-rate adaptation feature - ensure maximum achievable symmetrical or asymmetrical rates for the installed noise environment, wire gauge/type and length.

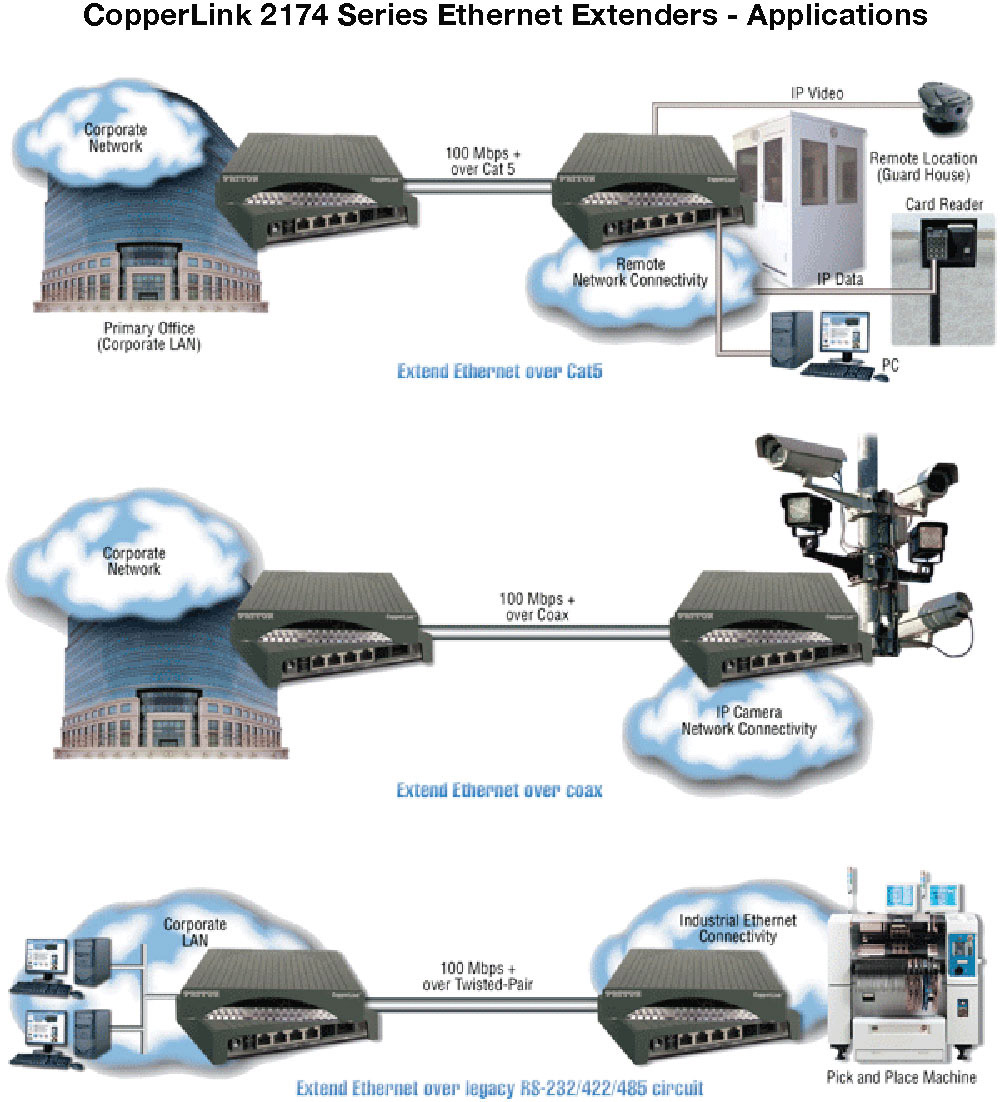

Symmetrical line-rate settings are ideal for such applications as remote LAN extension, video teleconferencing, and data backhaul. Asymmetrical configurations are well-suited for applications requiring higher downstream speeds and/or longer distances between Ethernet devices. Typical symmetrical scenarios include medical imaging, livestock monitoring, underwater video, internet gaming, and transporting high-resolution IP video from security cameras.
Realise fibre-like speed and distance without the expense of fibre cable infrastructure with Patton's 2174 Series ultra-high-Speed CopperLink Ethernet Extenders.
|•||Extend 10/100Base-TX Ethernet to 3Km (10,000 feet) over a single twisted-pair, Cat 5e/6/7, or coaxial cable|
|•||Fibre optic speed over Twisted Pair without the expense of installing new cable or line-of-site wireless circuits|
|•||Plug and Play - zero configuration to operate with auto-sensing 10/100 Ethernet full or half duplex ports|
|•||Multiple Line Rates supported — downstream line rates up to 168 Mbps|
|•||Switch-selectable rate mode options optimise rate and reach for the noise environment, wire gauge/type and length|
|•||Transparent LAN Bridging - Passes higher layer protocols such as 802.1Q VLAN tagging|
|•||Fully transparent to IP video compression schemes including MPEG-4, H.264 and MJPEG.|
|•||Integrated 4 port Ethernet Switch|
|•||POTS support on Individual models|
|CopperLink Line Interface|
|•||Model 2174-2PK and 2174/S-2PK: RJ-45 (pin 4 = ring; pin 5 = tip)|
|•||Model 2174/S-2PK: RJ-45 (pin 4 = ring; pin 5 = tip plus POTS port|
|•||Model 2174/BNC-2PK: BNC 75-Ohm coax|
|•||Model 2174/TB-2PK: Terminal Block, 2-position|
|•||Model 2174/TB/S-2PK: Terminal Block, 2-position plus POTS Port|
|CopperLink Line Modulation|
|•||DMT (Discrete Multi-Tone)|
|•||2x 8-position shielded RJ-45 ports. Auto-sensing 10/100Base-TX with half or full duplex operation.|
|•||Integrated Switch: 4x 8-position shielded RJ-45 ports. Auto-sensing 10/100Base-TX with half or full duplex operation.|
|Impulse Noise Protection Modes|
|•||User-selectable fast and interleave modes|
|Target SNR Modes|
|•||6 dB & 9 dB|

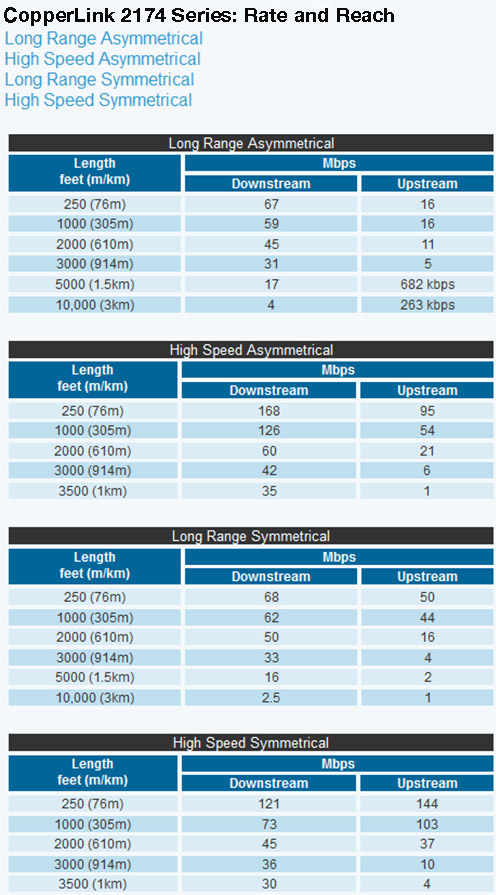

|•||Multi-rate selectable; up to 168/95Mbps asymmetrical, or 121/144Mbps symmetrical|
|•||Transparent to high layer protocols|
|•||Supports 802.1Q VLAN tagged frames|
|•||Transparent to IP Video schemes: fully transparent to such compression schemes as MPEG-4, H.264, and MJPEG|
|•||Line Rate control via 8-position DIP switch|
|•||8 LEDs display Power, Link, Ethernet 1-4, Remote, and Local status.|
|•||External AC: 100–240 VAC External DC: -48, -24, or -12 VDC|
|•||FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC|
|•||Temperature: 0–50°C; Humidity: 5–95%, non-condensing|
|•||1.25 H x 6.22 W x 4.75 D in. (31.8 H x 158 W x 120.7 D cm)|
|•||0.4 lbs (181 g)|
