discontinued
iServ
8630BND6

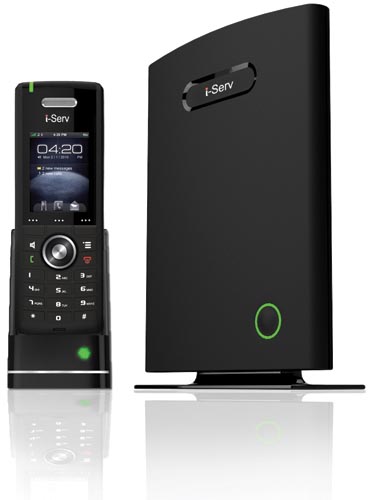

i-Serv Bundle with 1x 8630BS Base Station and 6x 8630HS Dect Handsets
This product has been discontinued by Alloy.
Alloy have put together bundled options for the i-Serv products. The 8630BND1 comes with a single 8630BS and a six 8630HS Handsets.

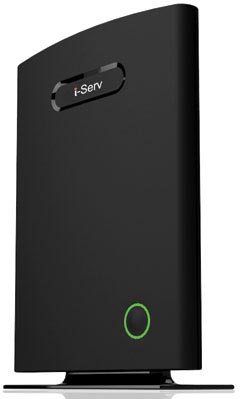

The 8630B is a DECT GAP/ CAP/CAT-iq compliant Base Station that forms the heart of i-Serv's powerful, scalable IP-DECT VoIP cordless phone system. Up to 40 Base Stations can be integrated in one automatically synchnronising phone system, supporting seamless handover of high quality wideband audio calls from one Base Station cell to another (standard quality audio is also supported via G.726, G.711 and optional G.729 codecs). A total of 200 handsets can be registered on an i-Serv system, with each Base Station supporting 30 active Handsets and 10 concurrent calls. Power over Ethernet support, web-based management, and 'over-the-air' software upgrades ensure ease of installation and management.
i-Serv's IP-DECT VoIP cordless phone system is designed for small to medium size enterprises. This is a complete turnkey solution, offering a level of system scalability and quality not seen before in an SME solution in this technolocy class. You can start small and grow big - from 1 to 40 Base Stations and 1 to 200 handsets, with totally reliable, seamless call handover when moving between Base Station cells. All the handsets can be configured as extensions to the corporate IP-PBX, or you can set up the system 'standalone', directly registered to a maximum of 10 SIP service providers.
Installation is straight forward, with Base Stations powered by Power over Ethernet (PoE) single data/power cable connections and the system as a whole configured via an easy to access embedded we server. The i-Serv IP-DECT phone system offers a comprehensive feature set that we believe is superior to other products in its class. To mention a few of the highlights: DECT GAP, CAP and CAT-iq v1.0 (wideband audio) compliant; HDSP Wideband Voice compliant; G722 codec wideband audio support; a 12 Slot radio with up to 10 voice channels active per Base Station (i.e. 10 concurrent calls per Base Station); 'Over the Air' Base Station/Handset synchronisation; DECT repeater support for extended Base Station range; 2" TFT colour handset display; Headset connector; Polyphonic ringtones and vibrating ring. And last but not least - i-Serv offers the best value and lowest price points currently availabe in a scalable IP-DECT VoIP phone system.
i-Serv's IP-DECT VoIP cordless phone system is designed for small to medium size enterprises. This is a complete turnkey solution, offering a level of system scalability and quality not seen before in an SME solution in this technolocy class. You can start small and grow big - from 1 to 40 Base Stations and 1 to 200 handsets, with totally reliable, seamless call handover when moving between Base Station cells. All the handsets can be configured as extensions to the corporate IP-PBX, or you can set up the system 'standalone', directly registered to a maximum of 10 SIP service providers.
Installation is straight forward, with Base Stations powered by Power over Ethernet (PoE) single data/power cable connections and the system as a whole configured via an easy to access embedded we server. The i-Serv IP-DECT phone system offers a comprehensive feature set that we believe is superior to other products in its class. To mention a few of the highlights: DECT GAP, CAP and CAT-iq v1.0 (wideband audio) compliant; HDSP Wideband Voice compliant; G722 codec wideband audio support; a 12 Slot radio with up to 10 voice channels active per Base Station (i.e. 10 concurrent calls per Base Station); 'Over the Air' Base Station/Handset synchronisation; DECT repeater support for extended Base Station range; 2" TFT colour handset display; Headset connector; Polyphonic ringtones and vibrating ring. And last but not least - i-Serv offers the best value and lowest price points currently availabe in a scalable IP-DECT VoIP phone system.
| • | Powerful IP-DECT multi-cell cordless phone system | |
| • | Supports use G.722 and CAT-iq for top quality call quality | |
| • | Implement as a standalone phone system or configure hansets as corporate IP-PBX extensions | |
| • | Register up to 30 handsets per Base Station or 200 handsets over 40 base stations | |
| • | Up to 10 concurrent calls active per Base Station | |
| • | Seamless call hand over between Base Station cells | |
| • | High quality ergonomc Hanset with 2" colour TFT display | |
| • | Power over Ethernet and web management for simple installation | |
| • | Ideal SME VoIP cordless phone solution for mobile staff groups | |
| DECT Specifications | |
| • | Frequency band: 1880 MHz – 1930 MHz (DECT) |
| • | 1880 – 1900 MHz (10 carriers) Europe, New Zealand, Australia |
| • | 1910 – 1930 MHz (10 carriers) Latin America |
| • | 1920 – 1930 MHz (5 carriers) U.S.A. |
| • | Customized frequency bands |
| • | Four power levels (14, 17, 20 and 24 dBm) |
| • | Seamless handover using Connection Handover |
| • | Wideband Voice (HDSP) Basic |
| • | Interoperability, Phase I (CAT-iq 1.0) |
| • | Ipsec authentication/encryption of BaseStation and Handset |
| Audio Specifications | |
| • | 10 audio channels using G.726 / G711 codec |
| • | 5 CAT-iq wideband audio channels using G.722 |
| • | RFC3711 SRTP |
| Antenna and Range Specifications | |
| • | Internal omni-directional antennas |
| • | Base Station support for 2 external antennas (SMA connectors) |
| • | Maximum 'clearspace' Base Station cell range (internal antenna): 300m. Typical indoor range: 50m |
| Additional Base Station Features | |
| • | DECT Repeater support |
| • | Fast antenna diversity switching |
| • | Synchronization via air interface |
| System Specifications | |
| • | 200 users maximum (200 Handsets registered) |
| • | 40 Base Stations can be integrated into one IP-DECT system |
| • | 30 Handsets can be registered to one Base Station |
| • | Each Base Station can support 10 active concurrent calls |
| • | Handsets can be configured as extensions of the corporate PBX, or the i-Serv system can be used 'standalone' |
| Network Specifications | |
| • | TFTP, HTTP, HTTPS for remote configuration and firmware download |
| • | VLAN |
| • | DHCP options 66 and custom |
| • | Embedded management/configuration web server |
| Power Supply | |
| • | Base Station: IEEE802.3af (Class 0) compliant Power over Ethernet (PoE); 36-60VDC |
| • | Maximum power consumption per Base Station: 5W |
| • | Handset supplied with cradle charger |
| Ethernet | |
| • | Base Station LAN Connector: RJ-45, PoE compliant |
| • | Interface to IP network: IEEE802.3 100Base-TX |
| • | IPv6 compliant |
| Mechanical Specifications | |
| • | Base Station Housing: IP20 internal case, wall mountable |
| • | Dimensions: 227 x 279 x 39mm (HxWxD) |
| • | Temperature Range: - 5° to + 55° (operating) |
| • | Base Station: LED status indication |
| SIP (Session Initiation Protocol) | |
| Handset Specifications | |
| • | 2’’ TFT display (176x220x262k) with graphical user interface |
| • | Wideband Audio (G.722) support |
| • | GAP and CAT-iq compliant |
| • | Wideband two-way speaker phone mode |
| • | Graphical MMI with wallpapers |
| • | Polyphonic ringtones |
| • | Vibrating ring |
| • | Phonebook: 200 central and 100 local entries |
| • | Headset connector (3.5mm) |
| • | 'Over-the-air' software upgrade |
| • | Battery Life time: Talk time >18 hours; Standby > 200 hours |
| Approvals | |
| • | Regualtory approval for Australia, USA, Europe and may other countries |
