This product has been discontinued by Alloy.

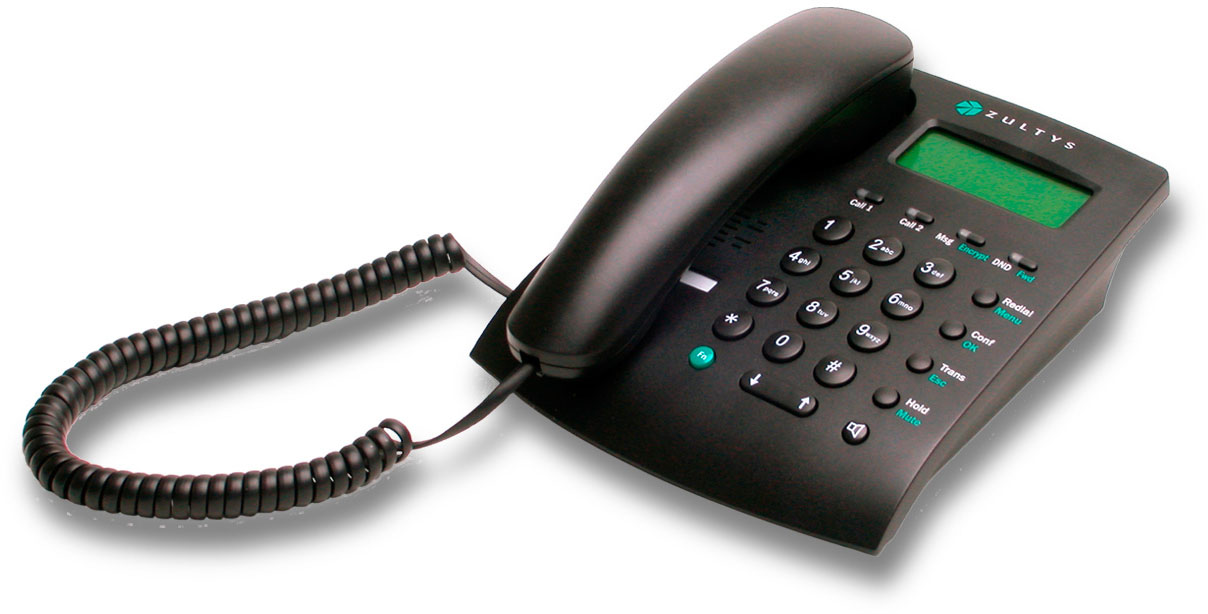

The ZIP 2x2 offers is a cost effective, fully featured entry level business grade IP phone, designed for deployment as a general purpose handset for workgroups who are not intensive telephone users.
Designed For Use With Zultys MX IP Telephone Systems
ZIP series IP Phones are designed by Zultys to complement their award-winning IP-PBX IP telephone systems. Use ZIP series IP phones with MX30 and MX250 IP-PBX appliances for added features and tight integration.
Remarkable Speech Quality
The ZIP 2x2 is designed for high fidelity audio on handset and speaker phone. The speaker phone has full duplex acoustic echo cancellation (AEC) so that the phone is fully functional as a speaker phone in an office or cubicle. The phone incorporates Zultys' patented jitter buffer. This ensures that speech quality is optimal, even when the network has varying delays and lost packets.
The phone can encrypt voice stream to another ZIP 2x2 or other equipment that supports AES encryption. Users can activate this function before or during a call. Alternatively, the administrator can enforce encryption so that it is not possible to establish a call without encryption. Encryption prevents the conversation from being decoded on the network.
From initial deployment and configuration to future enhancements and upgrades, the ZIP 2x2 is designed to save your business time and money. Easily created configuration files, using any text editor and a variety of communication protocols can be used to configure phones individually or centrally.
The ZIP 2x2 has dual Fast Ethernet ports so users can connect to an additional device such as a PC, without any additional investment in an external switch. The Ethernet ports are wired so they can easily be connected to the network and the PC with straight through cables.
|•||Two call appearances support two simultaneous calls|
|•||Two 10/100 Ethernet circuits connect to the LAN and an additional device|
|•||Store 100x personal speed dial numbers|
|•||Graphical backlit LCD|
|•||Buttons and keys for all commonly used functions|
|•||Menus in multiple languages|
|•||4 LEDs provide instant indication of status|
|•||Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer|
|•||Speaker phone mode with acoustic echo cancellation for high quality audio|
|•||Speech encryption for secure conversations|
|•||Receives power over Ethernet (PoE) or from an AC adapter|
|•||Downloadable ring tones|
|•||Menu, browser, and TFTP support for configuration and updates|
|•||18 dedicated hard keys (6 with dual function key) that include Transfer, Conference, Hold, Redial, Mute, 2 volume keys, Speaker, Options, Escape, Menu, OK and Encrypt|
|•||2 dedicated call appearance keys with LEDs|
|•||2 navigational keys (function also as volume keys) Audio and Codecs|
|Audio and Codecs|
|•||Hearing aid compatible (HAC) handset|
|•||Acoustic echo cancellation in speaker mode provides high quality speakerphone|
|•||G.711 µ-law / A-law, G.729|
|•||Headset mode support (via handset jack)|
|Display and Indicators|
|•||3 line LCD display|
|•||LED for call and message waiting indication|
|•||User and administrator level passwords for login|
|•||AES Voice Encryption for secure calls between ZIP2xN to Zip2xN phones, MXIE softphone and the MX (for voicemail)|
|•||Encryption of configuration files|
|•||Phone lock with PIN|
|•||IETF SIP (RFC3261) and associated RFCs|
|Networking and Provisioning|
|•||10/100 Mbps Fast Ethernet|
|•||Manual or Dynamic Host Configuration Protocol (DHCP) IP address setup|
|•||Support of multiple DHCP options: 66, 60, 43, 77, 159, 160|
|•||Quality of Service (QOS) support – IEEE 802.1 p/Q VLAN and priority tagging, Type of Services (TOS), and Differentiated Services Code Point|
|•||Network Address Translation (NAT) support|
|•||Integrated HTTP/HTTPS server for web administration and maintenance including a built-in troubleshooting section|
|•||Mass deployment via central provisioning of user configuration files – TFTP, HTTP|
|•||RTP streaming for Paging and Intercom applications|
|•||STUN / TURN support|
|•||IEEE 802.1x protocol support|
|•||POE and AC adapter (5V DC) included|
|•||3.5 W (Classification 0 under IEEE 802.3af)|
|•||Zultys ZIP 2x2 phone|
|•||Handset and coil cord|
|•||2 x Footstand|
|•||Programmable keys label|
