2N Helios
9151102R
IP Force Door Entry System 2 Button Intercom, IP65 Case
The 2N Helios IP Force range of Intercom Door Entry devices are an effective, vandal proof solution for secure access control and monitoring. Voice and video transmission via SIP, RTP and RTSP protocols ensure maximum compatability and integration.

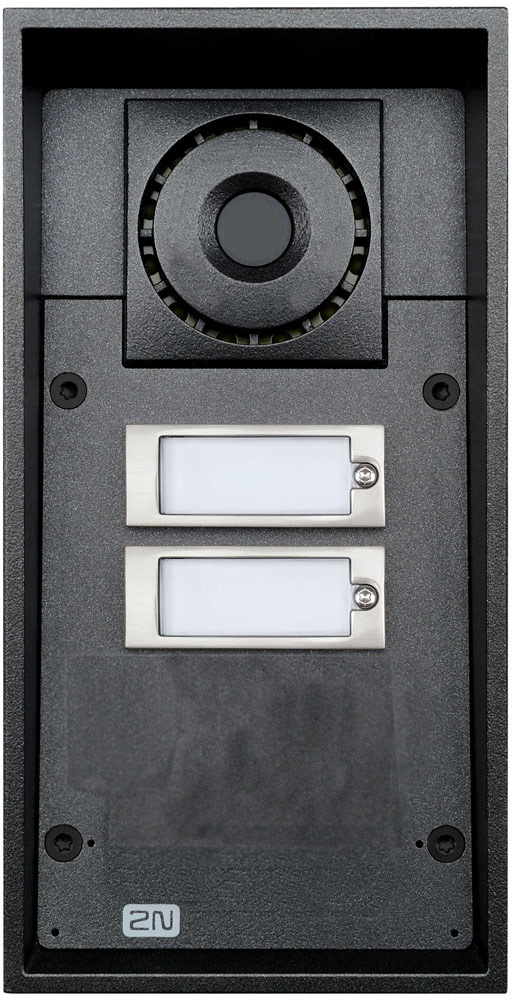

This model from the Helios IP Force range features two 'quick dial' backlit buttons and is supplied in a robust IP65 rated case, which is designed for outdoor use and can be flush or wall mounted.

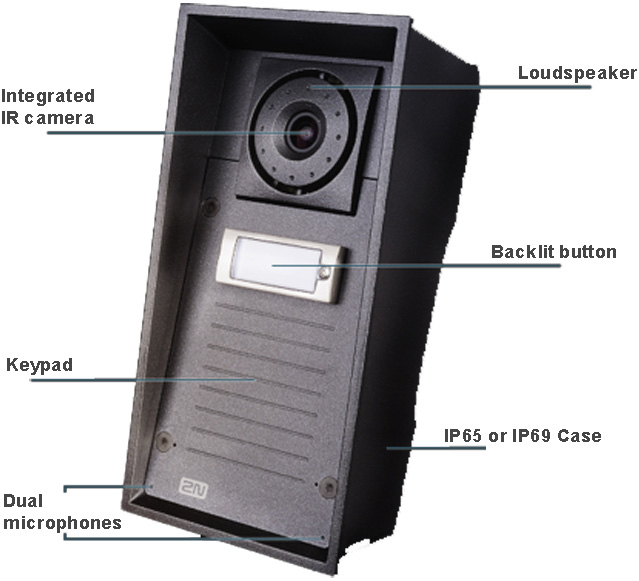

The 2N® Helios IP Force series of Intercom/Door controllers are designed for operation in the most demanding conditions. Robust mechanical construction offers the highest protective coverage rating against dust, water and vandal-resistant mechanical damage. Individual models offer either an IP65 or IP69K rated case. Numerous advanced features ensure high user comfort and guarantee secure access control for any extreme environment:
The 2N® Helios IP Force series of Intercom/Door controllers are designed for operation in the most demanding conditions. Robust mechanical construction offers the highest protective coverage rating against dust, water and vandal-resistant mechanical damage. Individual models offer either an IP65 or IP69K rated case. Numerous advanced features ensure high user comfort and guarantee secure access control for any extreme environment:
- Real Time Video Streaming; from an integrated camera of another system
- 2N Helios IP Manager; A PC application for management of all 2N Helios IP intercoms installed within a building
- 2N Helios IP Eye; free application - watch video from the camera of a 2N Helios IP Force door controller on your PC
- Time Profiles; define numbers that can be called and validity of access codes or RFID cards, via a weekly calendar
- Remote Trigger Switch Control; HTTP control of relays on a IP Force Door Controller from any other device
- IP Relay; remote control of appliances that, for security reasons, can't be connected directly to the IP Force
- Security/Automation System Integration; Ethernet, Wiegand, RS-485, or digital input/output
- Picture to e-mail; sends pictures of visitors captured by an integrated camera directly to your e-mail box
| • | IP Force model 9151102R has 2x transparent, white backlit 'Quick Dial' button with replaceable name tag | |
| • | IP65 Case for maximum resistivity against dust, water, and mechanical damage | |
| • | Entrance monitoring and following the movement of people (IP Force models with integrated 640x480 pixel, IR night vision capable camera) | |
| • | Integration with other security systems in the building | |
| • | Easy installation and integration into the existing LAN | |
| • | High-quality audio with two integrated microphones | |
| • | Easy remote administration via web browser | |
| • | Access control by a call, code, or card | |
| • | Mains or PoE power | |
| • | Extensive interface and installation options | |
| • | SIP 2.0 signalling protocol | |
| • | Cisco, Broadsoft and Avaya certified | |
| Model 9151102R | |
| • | 2x backlit 'Quick Dial' button with replaceable name tag (expandable), IP65 rated case |
| IP Force Series specifications: | |
| VoIP | |
| • | Signal: SIP 2.0 ((RFC - 3261) |
| Buttons | |
| • | Transparent, white backlit buttons with easily replaceable name tags |

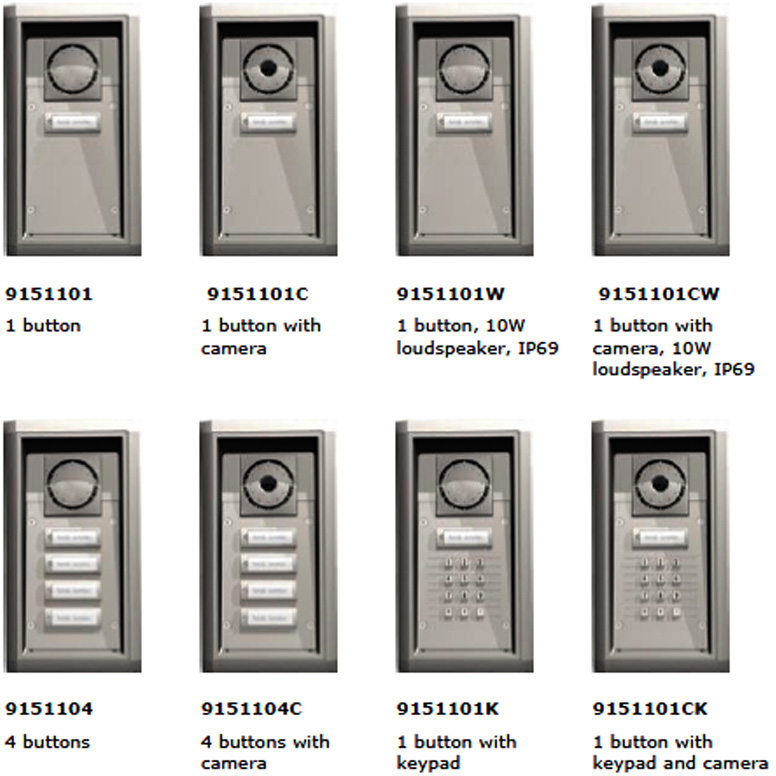

| • | Individual models have1, 2 or 4 buttons |
| Audio | |
| • | 2x integrated microphones with echo suppression |
| • | 1 watt loudspeaker (optionaly 10W) |
| • | Codecs: G.711, G.729 |
| Camera | |
| • | Resolution: 640 (horizontal) x 480 (vertical) pixels |
| • | Viewing angle: wide-angle 135° (horizontal), 109° (vertical) |
| • | IR Night Vision: yes |
| • | Codecs: H.263+, H.264, MPEG-4, JPEG |
| Interfaces | |
| • | Power supply: 12V±15%/1A DC or PoE |
| • | PoE: 802.3af (Class 0 - 12.95W) |
| • | LAN: 10/100Base-TX with Auto-MDIX |
| • | Relay outputs: NC/NO contacts, max 30V/1A AC/DC |
| • | Active relay output: 12V/700mA DC |
| RFID card reader | |
| • | Supported cards: EM-40XX (125Khz); HID Proximity (125kHz, 26 bit) |
| Mechanical | |
| • | Operating temperature range: -40°C – 55°C |
| • | Storage temperature range: -40°C – 70°C |
| • | Relative humidity: 10% - 95% (not condensing) |
| • | Dimensions: 217x109x83 mm |
| • | Protection level: selected models IP 65 or IP69K rated case |
