This product has been discontinued by Alloy.

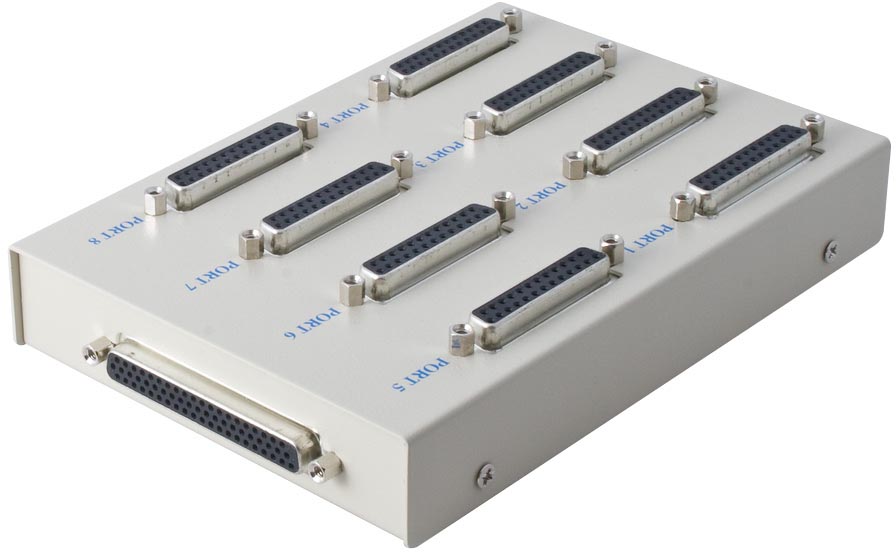

The B8EXP62PDB25 is an robust, all metal construction external Expansion Box with 8x DB-25 Female connectors. It can be connected to any 8 port model PCCOM Series Multiport Serial controller Card, using the supplied DB-62 cable.
Conforms to the TIA standard for twisted pair cable systems as defined in the ANSI/TIA/EIA-568-A specification and subsequent TSB-95 clarification. The Category 5e cable specification is defined to utilise frequencies up to 100 MHz. Terminate using T568A pin-out assignments (or the now deprecated T568B). Cat. 5e cable can be used in Gigabit Networks (although Cat. 6 cable will provide superior performance) and in Fast Ethernet and Ethernet networks. Cat. 5e cable is backwards compatible to the Cat. 5 cable specification.
Alloy offers a wide range of Cat 5e indoor grade patch leads up to 25 metre length, terminated with RJ-45 connectors.
Internal grade Cat 5e stranded and solid core Pull Packs also available.
|•||B8EXP62PDB25: Replacement 8 Port DB-25 Expansion Box for selected PCCOM Multiport Serial Cards|
|•||Use Replacement Expansion Boxes with PCCOM Series Serial Cards to change between Fanout Cable and DB-25/RJ-45 Expansion Box options|
|•||Robust all-metal case|
|•||DB-62 cable supplied for connection to PCCOM Series Multiport Serial Card|
|Ports Supported/Connector Type|
|•||B8EXP62PDB25: 8 Ports; DB-25 (Female)|
|Other models in the SCR Series|
|•||A8EXP62PRJ45: 8 Ports; RJ-45|
|Serial Signalling Type/Interfaces|
|•||HCS-40-5: RS-232; 2x DB-9 male on-card ports|
|•||HCS-40-6: RS-232; 4x DB-9 male via 4-way cable|
|•||HCS-40-7: RS-232; 8x DB-9 male via 8-way cable|
|•||HCS-40-8: RS-232; 8x DB-25 female via 8 port external Expansion Box|
|•||HCS-40-9: RS-232; 8x RJ-45 via 8 port external Expansion Box|
|•||HCS-41-5: RS-422; 2x DB-9 male on-card ports|
|•||HCS-41-1: RS-422; 4x DB-9 male via 4-way cable|
|•||HCS-41-6: RS-422; 8x DB-9 male via 8-way cable|
|•||HCS-41-7: RS-422; 8x DB-25 female via 8 port external Expansion Box|
|•||HCS-41-4: RS-485; 2x DB-9 male on-card ports|
|•||HCS-41-2: RS-485; 4x DB-9 male via 4-way cable|
|•||32-bit PCI bus with Plug and Play features, 3.3V internal voltage|
|•||300bps to 460.8Kbps (auto baud rate and direction control selection)|
|•||16550 FIFO UART with 16bytes buffer per port: HCS-40-5, HCS-41-5|
|•||16650 FIFO UART with 32bytes buffer per port: HCS-41-1, HCS-41-6, HCS-41-7, HCS-41-4, HCS-41-2|
|•||16850 FIFO UART with 128bytes buffer per port: HCS-40-6, HCS-40-7, HCS-40-8, HCS-40-9|
|•||Install in compatible PCI slot, up to 4 PCCOM Controllers per Host system|
|•||Operating Temperature: 0° to 60°C|
|•||Storage Temperature: -20° to 70°C|
|•||Humidity: 5% to 95%|
|Emission and Safety Regulations|
|•||Complies with FCC Part 15 Class A, CE Mark Approval, C-Tick|
