Clearone
CLR1-MIC-CH-ATT
Speakerphone Extension Kit

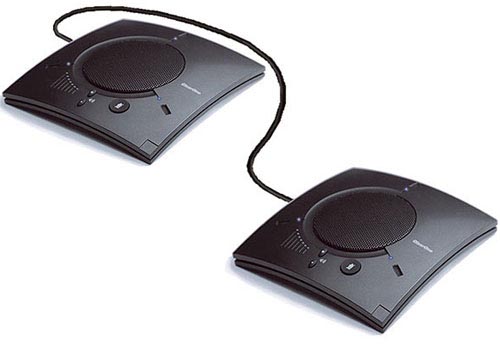

This optional Extension Kit provides cabling and power supply components required to connect two ClearOne CHAT150 Speakerphones.
This provides the capability to extend audio coverage to a larger space and support larger numbers of participants. Two CHAT1250 units are connected via a 7.62 metre cable.
Alloy recommends dual CHAT150 units connected with the Extension Kit for larger Video Conference Rooms utilising VidyoRoom Appliances.
Alloy recommends dual CHAT150 units connected with the Extension Kit for larger Video Conference Rooms utilising VidyoRoom Appliances.
| • | Crisp, clear audio | |
| • | True full duplex performance allows user to listen and speak at the same time | |
| • | USB v2.0 plug-n-play connectivity - ready to use 'out of the box' | |
| • | Volume Up, Volume Down and Microphone Mute controls | |
| • | High quality speaker: 190Hz - 20kHz bandwidth | |
| • | High quality microphone: 100Hz - 12 kHz bandwidth | |
| • | Acoustic echo cancellation, Noise cancellation, Line echo cancellation, Automatic level control | |
| • | Ideal audio solution for Video Conferencing solutions | |
| • | Extension Kit to connect two CHAT150's for larger groups/conference rooms (optional) | |
| • | CHAT150 - recommended for use with VidyoRoom HD-100 and HD-220systems. | |
| Connectivity | |
| • | V2.0 USB connector, Mini-B Female type |
| External Audio | |
| • | Type: 3.5 mm (1/8”) Mini-plug |
| • | Tip: Line Output; Ring: Line Input; Sleeve: Ground |
| CHAT150 Extension Kit | |
| • | Optional cabling/power supply kit to connect two ClearOne CHAT150 devices |
| • | Linking cable: length 7.62m, RJ-45 connectors |
| Controls | |
| • | Volume Up, Volume Down, Microphone Mute |
| Compatibility | |
| • | Windows XP (SP2), Vista, Win7, Video Conferencing Appliances with USB port |
| Audio | |
| • | Speaker - Bandwidth:190Hz - 20kHz. Max Output Level: 85 dB SPL @ 1 meter |
| • | Microphone - Bandwidth: 100Hz - 12 kHz |
| Processing | |
| • | Full Duplex |
| • | Acoustic Echo Cancellation (AEC) and Distributed Echo Cancellation |
| • | Noise Cancellation (NC) Line Echo Cancellation |
| • | Line Echo Cancellation (Selectable) |
| • | Automatic Level Control (ALC) |
| Power | |
| • | USB-powered: 5 VDC @ 500 mA maximum |
| Environmental and Mechanical | |
| • | Operating Temperature: 5°-40°C (41°-104°F ) |
| • | Dimensions (WxDxH): (188mm x 188mm x 46mm (7.4” x 7.4” x 1.8”) |
