This product is no longer stocked by Alloy

Edge-Core

ECS3510-28F

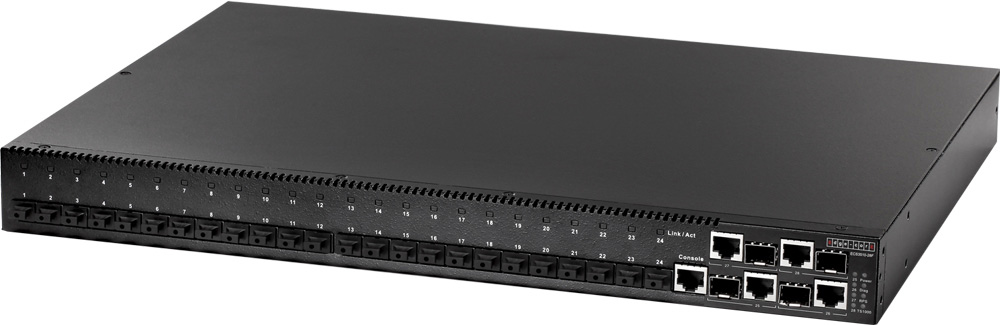

The ECS3510-28F Metro Access Switch is primarily designed for Service Providers, providing a powerful, resilient hardware platform to deliver secure triple play services to large numbers of subscribers over long distance 10Km fibre connections.

Edge-Core
discontinued
Alternate Text
ECS3510-28F
ECS3510-28F
ECS3510-28F

This product is no longer stocked by Alloy

Edge-Core

ECS3510-28F

The ECS3510-28F Metro Access Switch is primarily designed for Service Providers, providing a powerful, resilient hardware platform to deliver secure triple play services to large numbers of subscribers over long distance 10Km fibre connections.

Description

The ECS3510-28F Metro Access Switch is primarily designed for Service Providers, providing a powerful, resilient hardware platform to deliver secure triple play services to large numbers of subscribers over long distance 10Km fibre connections.

The Edge-Core ECS3510-28F Metro Access Switch is designed primarily for Service Providers who wish to support large numbers of their subscibers within a Metro Ethernet network. The switch is easy to deploy and maintain, yet offers a comprehensive suite of carrier grade management and security functions. The ECS3510-28F has 24x fixed 100Base-BX copper ports (SC connectors), each supporting links at up to 10 kilometres over singlecore/singlemode optical fibre cable, and 4x combo Gigabit Ethernet RJ-45/SFP port arrays that support network uplinks over copper UTP or multimode, singlemode or WDM fibre optic cable. With this high density of 100Base-BX ports, the switch is an ideal solution for supporting service subscribers in areas such large office buildings, residential apartment blocks and campus environments. Sclability is also enhanced with the switch supporting virtual stacking for up to 36 switches able to be centrally managed via a single IP address.

The ECS3510-28F provides a powerful suite of software and management functions designed to support Service Providers offering secure triple play services to large number od customers. These features ensure robust, carrier grade subscriber, switch, and network security. Software functions include Operation Administration Maintenance (OAM) for Ethernet to enable Services Provider to manage large, complex networks with extensive subscriber numbers, and to help Providers isolate, maintain, and manage subscriber network traffic. Other features include 802.3ah 'Ethernet in the First Mile' standard compliance, Q-in-Q, and Carrier Class Rate-Limiting and QoS.

Up to three ECS3510-28F switches can be connected to an optional RPS600WA Exeternal Dual Redundant Power System.

The ECS3510-28F is a member of Edge-Core's FTTx series of Metro Access Switches and CPE devices that provide complete solutions for service provider infrastructure and subsciber endpoint Merto Access networks.
Features
Fibre Access Switch designed for Metro Access systems and triple play services
Specified for Service Providers, including OAM 802.3ah and Subscriber Isolation functions

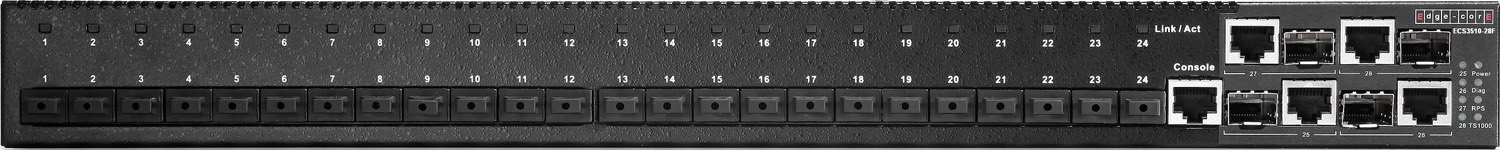

24x 10/100Base-BX singlemode/singlecore fibre plus 4x Gigabit RJ-45/SFP port arrays
10Km range on 100Base-BX ports
24 fibre ports in a 1RU case
12.8Gbps switching capacity and 9.6Mbps forwarding rate for wirespeed performance
High performance Layer 2 management functions
Carrier grade Layer 4 QoS features
Enhanced network security capability

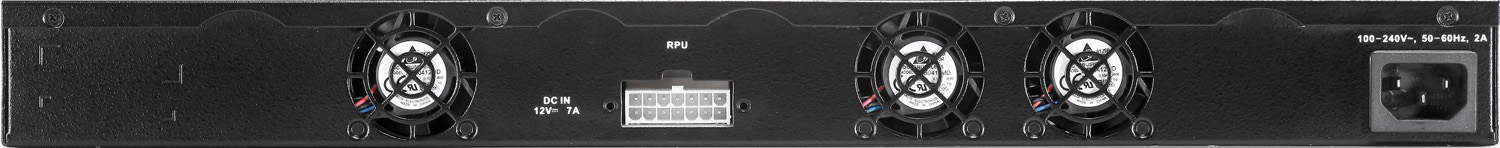

High availability features including optional external Dual Redundant Power Supply
IP clustering for single IP management of up to 36 switches
