Edge-Core
ECS4310-26T
Layer 2/4 Gigabit Ethernet Websmart Switch With 24 Gigabit Ports and Dual SFP slots
This product has been discontinued by Alloy.
The ECS4310-26T is a Layer 2/4 Websmart Gigabit Ethernet switch which supports SFP modules for fibre optic network uplinks. In addition to powerful management features, these switches feature an energy efficient design that lowers operating costs.

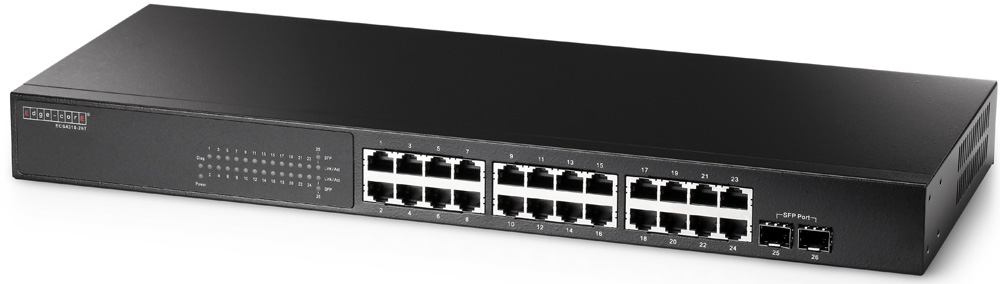

The Edge-Core ECS4310-26T is a web-managed ("Websmart") Layer2/4 Gigabit Ethernet switch which provides 24 auto-sensing 10/100/1000Mbps Gigabit ports plus dual SFP transceiver slots. The SFP slots on the switch support all types of Gigabit mini-GBIC modules - 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable.
The flexible, easy-to-use web-based management interface enables fast, intuitive configuration of the switches management features and port settings, including enhanced security based on MAC address, IGMP snooping, Layer4 grade QoS with 8 egress queues, 802.3ad LACP link aggregation and VLANs - features that increase throughput and flexibility. Security is more important in next generation networks so this switch has added security features to protect your network. SNMP v1 and v2c error trapping support is also included.
A member of the ECS4300 Series, the ECS4310-26T offers a switching capacity of 52Gbps and provides a cost-effective, wirespeed switching solution with a comprehensive feature set, enhanced security functions, and powerful QoS features ideally suited for modern networks required by today's small to medium sized enterprises.
The flexible, easy-to-use web-based management interface enables fast, intuitive configuration of the switches management features and port settings, including enhanced security based on MAC address, IGMP snooping, Layer4 grade QoS with 8 egress queues, 802.3ad LACP link aggregation and VLANs - features that increase throughput and flexibility. Security is more important in next generation networks so this switch has added security features to protect your network. SNMP v1 and v2c error trapping support is also included.
A member of the ECS4300 Series, the ECS4310-26T offers a switching capacity of 52Gbps and provides a cost-effective, wirespeed switching solution with a comprehensive feature set, enhanced security functions, and powerful QoS features ideally suited for modern networks required by today's small to medium sized enterprises.
| • | 24x 1000Base-T Gigabit Ethernet ports plus dual SFP slots | |
| • | SFP Fibre interfaces for long distance network connectivity over fibre cable | |
| • | 52Gbps switching capacity - wirespeed performance ideal for Gigabit support of larger workgroups | |
| • | Advanced Layer2/4 features via an easy-to-use web interface | |
| • | SNMP v1/v2c error trapping | |
| • | Advanced Layer4 QoS features | |
| • | IPv6 support | |
| • | Enhanced network security | |
| • | Green Saving energy efficient design reduces energy consumption and lowers operating costs | |
| Physical Ports | |
| • | 24x Gigabit Ethernet 1000Base-T ports |
| • | 2x Gigabit Ethernet SFP slots (for mini-GBIC transceiver modules) |
| Performance | |
| • | Switching Capacity: 52Gbps |
| • | Forwarding Rate: 38.7Mpps |
| • | Packet buffer size: 448KB |
| • | MAC Address Table Size: 16K |
| Memory | |
| • | Flash: 4MB |
| • | SDRAM: 16MB |
| Management | |
| Switch Management | |
| • | Web GUI management ("Websmart") |
| • | SNMP v1 and v2c error trapping |
| Layer 2 Features | |
| Layer 4 QoS Features | |
| Enhanced Security Features | |
| IPV6 Features | |
| Mechanical | |
| • | Form Factor: 1RU |
| • | Dimensions: 172mm x 440mm x 43mm (W x D x H) |
| • | Weight: 1.98Kg (4.37lbs) |

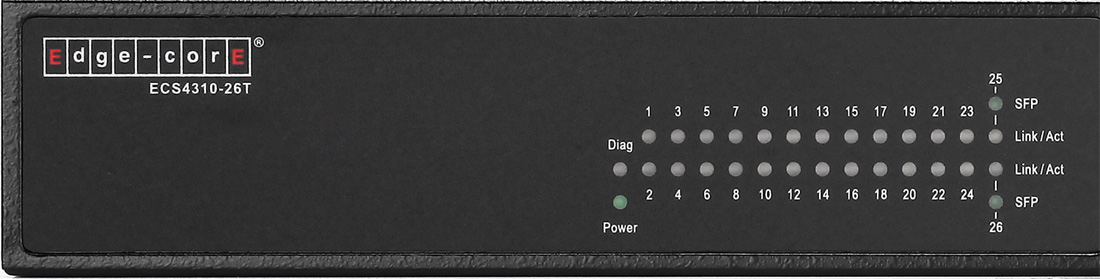

| • | LED Indicators: Port, Uplink, Power, Diagnostic |
| • | AC Power Input: 100-240VAC, 50-60Hz, 0.7A |
| • | Power Consumption: 30 Watts maximum |
| • | Maximum Current: 0.3A @ 100 VAC, 0.12A @ 240 VAC |
| Safety | |
| • | CSA (CSA 22.2 NO 60950-1 & UL 60950-1), CB(IEC/EN60950-1) |
| Electromagnetic Compatibility | |
| • | CE Mark, FCC Class A, EN 55022 (CISRP 22) Class A, EN 61000-3-2/3, VCCI (pending), C-Tick |
| Environmental Specifications | |
| Temperature | |
| • | 0° to 50°C (Standard Operating) |
| • | -40° to 70°C (Non-Operating) |
| • | Humidity: 10% to 90% (Non-condensing) |
| • | Vibration: IEC 68-2-36, IEC 68-2-6 |
| • | Shock: IEC 68-2-29 |
| • | Drop: IEC 68-2-32 |
