This product is no longer stocked by Alloy

Edge-Core

ECS4610-24F

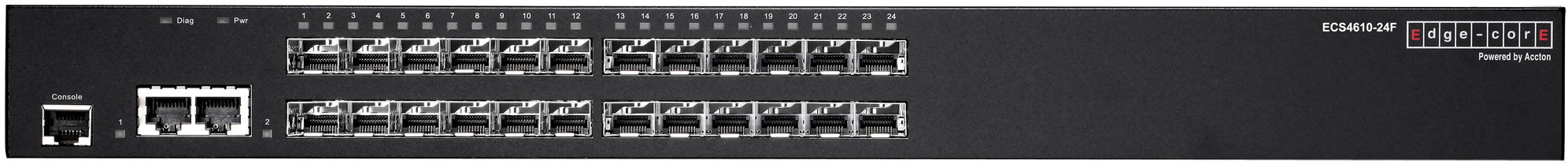

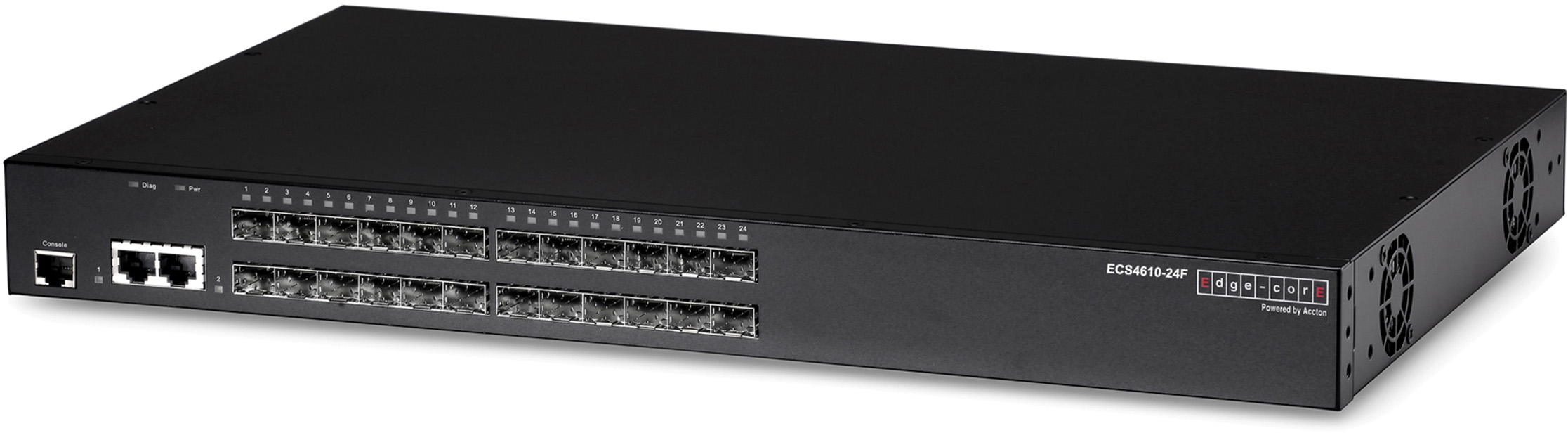

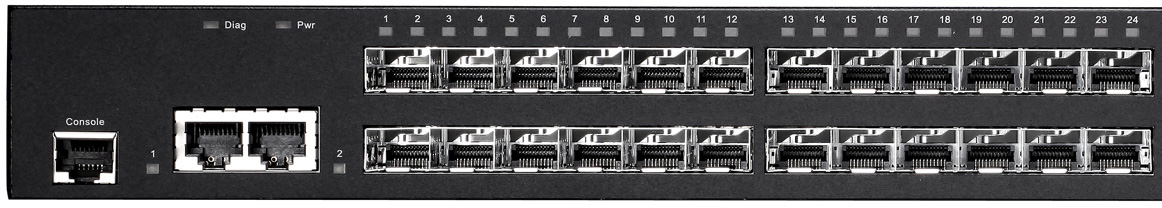

The Edge-Core ECS4610-24F is a layer 3 Gigabit Ethernet routing switch. With 24 SFP slots and 2 RJ-45 port arrays, this is an ideal solution for Service Provider aggregation layer applications for converged voice, data and video traffic.

Edge-Core
discontinued
Alternate Text
ECS4610-24F
ECS4610-24F
ECS4610-24F

This product is no longer stocked by Alloy

Edge-Core

ECS4610-24F

The Edge-Core ECS4610-24F is a layer 3 Gigabit Ethernet routing switch. With 24 SFP slots and 2 RJ-45 port arrays, this is an ideal solution for Service Provider aggregation layer applications for converged voice, data and video traffic.

Description

The Edge-Core ECS4610-24F is a layer 3 Gigabit Ethernet routing switch. With 24 SFP slots and 2 RJ-45 port arrays, this is an ideal solution for Service Provider aggregation layer applications for converged voice, data and video traffic.

Providing a high performance non-blocking switching solution, the Edge-Core ECS4610-24F is a layer 3 Gigabit Ethernet routing switch, supporting high densities network connections over fibre optic cable, via the unit's 24 SFP slots and 2 Gigabit 10/100/1000Mbps RJ-45 ports. The switches SFP ports support all types of Gigabit mini-GBIC modules - 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable.

The ECS4610-24F offers IPv4 and IPv6 Layer 3 hardware-based routing for maximum performance. Advanced Layer 3 and Layer 2 management features can be accessed via an HTTP interface, CLI, or SNMP. Comprehensive Quality of Service and enhanced security functions are supported.

The ECS4610-24F provides a cost-effective, wirespeed Layer 3 switching and routing solution, with a comprehensive feature set, robust security functions, and powerful QoS features that delivers the scalability and reliability required in modern converged networks.
Features
Non-blocking performance to meet network demands for voice, data and video streaming
48Gbps switching capacity and 35.7Mbps forwarding rate
Scalability - 24 SFP slots supporting mini-GBIC modules with up to 80km fibre connection
High Availability - 802.1w and 802.1s Rapid and Multiple Spanning Tree Protocol
Comprehensive QoS delivers best-in-class wire speed performance for data, voice, and video traffic
Advanced hardware-based IPv6 and IPv4 Routing; RIP, OSPF & Multicast
Enhanced Security - including ACLs, authentication and IEEE 802.1x port-based access
Powerful Management Features - including IGMP snooping, SSH, IPv6 QoS remapping and much more
Easy to use Web GUI, CLI, SNMP/RMON
