This product has been discontinued by Alloy.

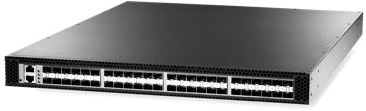

The Edge-Core ECS5510 is a 10Gigabit Ethernet Layer2/4 switch, with 48 SFP+ slots into which any mix of copper (UTP or CX4), multimode fibre or singlemode fibre 10GbE Transceiver Modules can be installed.
The ECS5510-48S is capable of 960Gbps of network throughput, enabling the switch to fully support the demand for bandwidth brought on by server virtualization and other bandwidth intensive applications. Dual hot-swappable power supplies enable the system to continue operation even in the event of a single power
supply failure. To ensure longevity, the ECS5510-48S employs data center-friendly front to back cooling, dissipating unwanted heat efficiently and effectively.
The ECS5510-48S features both a user-friendly web interface and a command line interface for advanced users. SNMP-based management is fully supported. Advanced Layer 2 management features are supported, including: Jumbo frames up to 10K bytes, 802.1Qau Quantized Congestion Notification, 802.1Qbb Priority Flow Control. 802.1Qaz Enhanced Transmission Selection and FCoE ACL and FIP snooping. Layer 4 QoS functions are also supported.
With 48 SFP+ slots on the switch, any mix of copper (SFP+ Direct Attach, 10GBase-T, 10GBase-CX4), multimode fibre optic (10GBase-SR) or singlemode fibre optic (10GBase-LR, 10GBase-LRM, 10GBase-ER, 10GBase-ZR and 10GBase-LX4) 10Gigabit Transceiver Modules can be installed.
|•||48x 10GbE SFP+ slots in a 1RU case|
|•||Install any mix of copper, multimode fibre or singlemode fibre 10GbE SFP+ Transceiver Modules|
|•||Capable of 960Gb of network throughput|
|•||Dual hot-swappable power supplies ensures continuous availability|
|•||Energy efficient - consumption less than 3 watt per port|
|•||Advanced Layer 2 and Layer 4 QoS management|
|•||Ideal solution for Data Centres and Enterprise Backbones|
|•||48x 10Gigabit SFP+ ports|
|•||1 RJ-45 management port|
|•||1 RJ-45 console port|
|•||2 PSU slots for removable power supplies - dual redundant capable|
|•||Switching Capacity: 960Gbps|
|•||Forwarding Rate: 714Mpps|
|•||Packet buffer size: 4MB|
|•||MAC Address Table Size: 32K|
|Data Center Features|
|•||Fibre Channel over Ethernet (FCoE)|
|•||ACL and FIP snooping|
|•||802.1Qau Quantized Congestion Notification (QCN)|
|•||802.1Qaz Enhanced Transmission Selection (ETS)|
|•||802.1Qbb Priority Based Flow Control (PFC)|
|•||Jumbo frames up to 10K bytes|
|Layer 2 Features|
|Lasyer 4 QoS Features|
|Enhanced Security Features|
|•||CLI via console port or Telnet|
|•||SNMP v1, v2c, v3|
|•||44mm x 440mm x 596mm (H x W x D)|
|•||Port, Uplink, System, Diagnostic|
|•||CSA (CSA 22.2 NO 60950-1 & UL 60950-1)|
|•||CE Mark, FCC Class A, C-Tick|
|•||0° to 40°C (Standard Operating)|
|•||-40° to 70°C (Non-Operating)|
|•||10% to 95% (Non-condensing)|
