Description

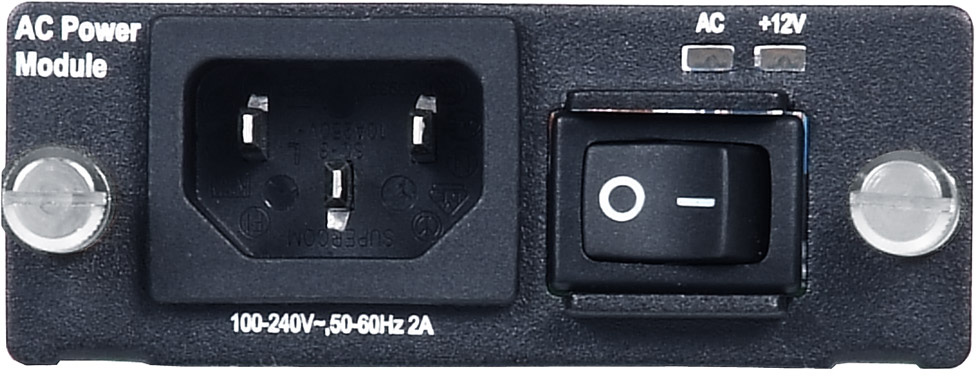

The EM3528-AC is a AC Power Module which can be installed in one or both of the Power Supply Slots of Edge-Core's ES3528 and ES3528-WDM Metro Access switches.

The EM3528-AC is a AC Power Module which is installed in one or both of the Power Supply Slots on the ES3528 and ES3528-WDM Metro Access switches (These switches are supplied without Power Supply Module). The module's AC input rating is 100-240 volt (auto-ranging), 50-60 Hz, 2 amp.

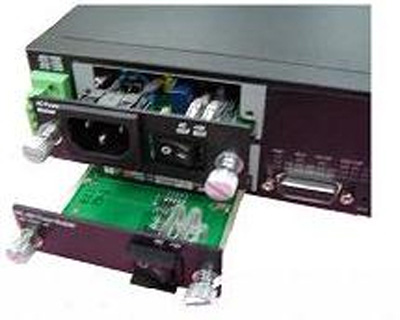

Either one or two EM3528-AC Power Modules can be installed; fitting dual modules in the host switch provides for a Dual Redundant Power Supply with auto failover to the standby mains power supply.

The sister device to the EM3528-AC - the EM3528-DC - is a DC input Power Supply Module. Any mix of these two module types can be installed into the Power Supply Slots of the ES3528 or ES3528-WDM Metro Access switches.
