This product is no longer stocked by Alloy

Edge-Core

ES3510MA

10 Port L2/4 Managed 'Silent' Desktop Switch 8x RJ-45, 2x RJ-45/SFP Port Arrays, AC Power

0MA is a L2/4 managed Fast Ethernet Desktop Switch with 8x 10/100Mbps ports and dual paired Gigabit Ethernet combo RJ-45/SFP port arrays. The fanless design makes this switch ideal for in quiet areas.

Edge-Core
discontinued
Alternate Text
ES3510MA
ES3510MA
ES3510MA

This product is no longer stocked by Alloy

Edge-Core

ES3510MA

10 Port L2/4 Managed 'Silent' Desktop Switch 8x RJ-45, 2x RJ-45/SFP Port Arrays, AC Power

0MA is a L2/4 managed Fast Ethernet Desktop Switch with 8x 10/100Mbps ports and dual paired Gigabit Ethernet combo RJ-45/SFP port arrays. The fanless design makes this switch ideal for in quiet areas.

Description

0MA is a L2/4 managed Fast Ethernet Desktop Switch with 8x 10/100Mbps ports and dual paired Gigabit Ethernet combo RJ-45/SFP port arrays. The fanless design makes this switch ideal for in quiet areas.

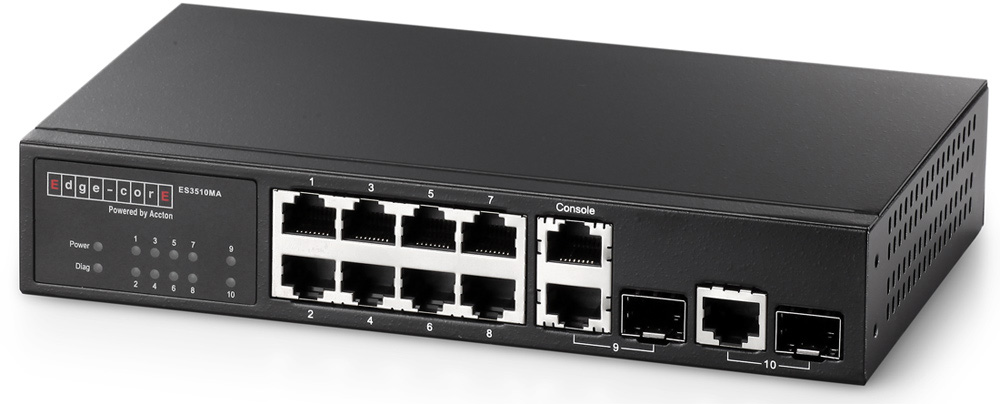

The Edge-Core ES3510MA is a Layer 2/4 managed Fast Ethernet "Silent" switch, with 8x 100Base-TX RJ-45 copper ports and dual combo Gigabit Ethernet RJ-45/SFP port arrays for 1000Mbps network uplinks over copper UTP or fibre cable. The SFP slots on the switch support all types of Gigabit Ethernet and Fast Ethernet mini-GBIC modules (100Base-BX and 1000Base-SX/LX/ZX) to support multimode, singlemode and WDM network connectivity over fibre optic cable.

With 5.6Gbps switching capacity, the ES3510MA delivers wirespeed switching performance on all ports. The fanless design makes the switch an ideal for deployment in environments where background equipment noise must be kept to a minimum.

The ES3510MA provides comprehensive Layer 2/4 management features, accesses via an easy to use web-based GUI, CLI via console port or Telnet, or SNMP. Comprehensive management features include standard and rapid Spanning Tree Protocol support, 802.1q VLAN, 802.3ad LACP and Trunk Groups. These features are complemented by QoS (Quality of Service) and security functions.

The switch supports IP Clustering; a virtual stack of up to 36 switches can be centrally nmanaged as a single entity with a single IP address.

A member of Edge-Core's ES3510MS Series of switches, The ES3510MA is ideal for networks where advanced Layer 2/4 management is required for multiple data, voice and video applications in physical locations suited to the device's compact Desktop case form factor.
Features
5.6Gbps switching capacity
Non-blocking, wirespeed performance

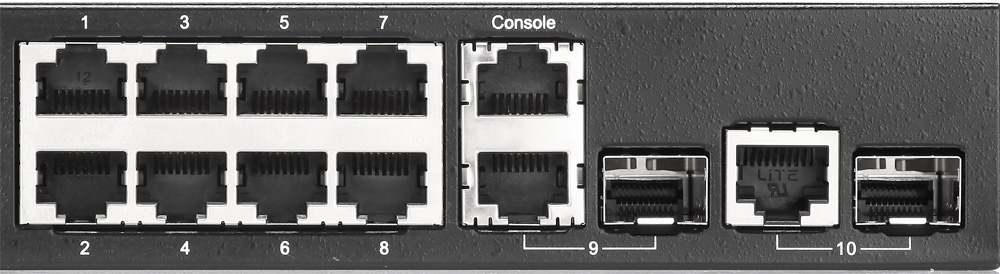

8x 10/100Base-TX RJ-45 plus dual Gigabit Combo (RJ-45/SFP) port Arrays
SFP slots support100Base-FX, 100Base-BX and 1000Base-SX/LX/ZX Transceiver modules
High performance network security and management capability
Advanced Layer management features via Web, CLI or SNMP interfaces
Advanced L4 QoS features
Enhanced scalability and availability features
Centrally manage a virtual stack of up to 36 switches
Fanless design for silent operation
ES3510MA
