The Edge-Core ES3552M is a Fast Ethernet Layer 2/4 managed high density switch with 48x 100Base-TX ports and 4x combo Gigabit Ethernet RJ-45/SFP port arrays. The switch has a fanless design for use in quiet areas.
With 17.6Gbps switching capacity, the ES3552M delivers wirespeed switching performance on all ports. The SFP slots on the switch support all types of Gigabit mini-GBIC modules - 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable - enabling copper or fibre uplinks.
The ES3552M provides comprehensive Layer 2/4 management features, accesses via an easy to use web-based GUI, CLI via console port or Telnet, or SNMP. Comprehensive management features include standard and rapid Spanning Tree Protocol support, 802.1q VLAN, 802.3ad LACP and Trunk Groups. These features are complemented by QoS (Quality of Service) and security functions.
The ES3552M supports IP Clustering, allowing up to 36 switches to be virtually stacked - the whole stack can be managed as a single entity from a single IP address.
The ES3552M has a fan-less hardware design, making the device a great choice for use where network equipment must operate without generating operating decibels.
This switch is packed with features and is a cost-effective solution that brings continuous availability, enhanced security and advanced QoS to the network edge, while maintaining simplicity of management.
|•||48x 10/100Base-TX plus 4x Gigabit RJ-45/SFP port arrays|
|•||High performance L2 management functions|
|•||Advanced L4 QoS features|
|•||Enhanced network security capability|
|•||Enhanced scalability and availability features|
|•||IP clustering for single IP management of up to 36 switches|
|•||Fanless 'silent run' hardware design|

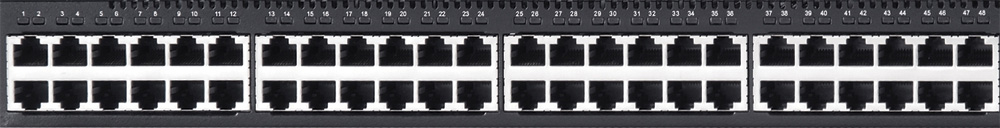

|•||48x 100Base-TX Fast Ethernet RJ-45 ports|

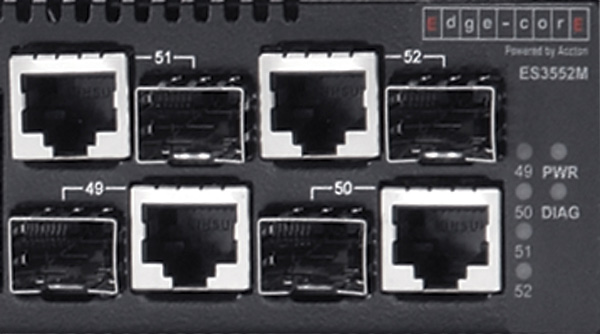

|•||4x combo Gigabit RJ-45/SFP port arrays (SFP slots paired with 10/100/1000Mbps RJ-45 ports)|
|•||1x RS-232 DB-9 console port (rear mounted)|
|•||10/100Mbps support full or half duplex|
|•||1000Mbps support full duplex only|
|•||Switching capacity: 17.6Gbps|
|•||Packet buffer: 1Mbps|
|•||MAC Address Table Size: 8K|
|•||Web GUI management|
|•||CLI via console port or Telnet|
|•||SNMP v1/x2c/v3 network management|
|•||Supports RMON (groups 1, 2, 3 and 9)|
|•||Layer 2 Features|
|•||Layer 4 QoS Features|
|•||Voltage : 100-240 V|
|•||Frequency: 50-60 Hz|
|•||43mm x 440mm x 2230mm (H x W x D), 1 RU rackmount case|
|•||Fanless design for silent operation|
|•||Port, Uplink, System, Diagnostic|
|•||CSA/NRTL (UL1950, CSA 184.108.40.206), TUV/GS (EN60950)|
|•||CE Mark, FCC Class A, VCCI Class A, CISPR Class A, C-Tick|
|•||0° to 45°C (Standard Operating)|
|•||-40° to 75°C (Non-operating)|
|•||10% to 90% (Non-condensing)|
|•||IEC 68-2-36, IEC 68-2-6|
