Edge-Core
ES4524D
L2/4 Managed Gigabit Switch 24x RJ-45, 4x RJ-45/SFP
This product has been discontinued by Alloy.

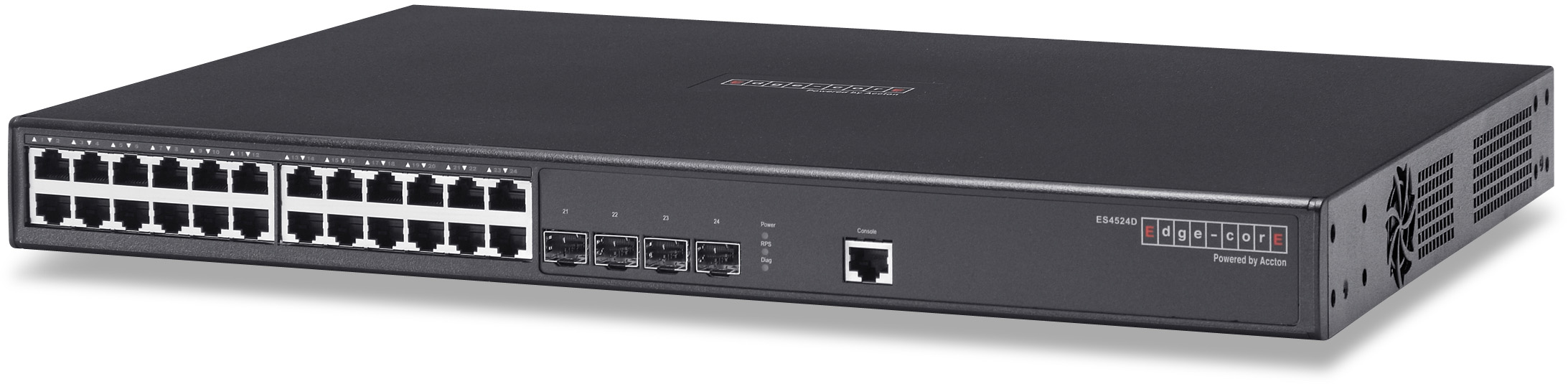

The Edge-Core ES4524D is a wirespeed Layer 2/4 Gigabit Ethernet switch. With 24 1000Base-T RJ-45 copper ports and 4 combo RJ-45/SFP port arrays, this is a high performance switch ideal for server aggregation or departmental switch applications.
The Edge-Core ES4524D is a Layer 2/4 Gigabit Ethernet switch. With 24 1000Base-T RJ-45 copper ports and 4 combo RJ-45/SFP port arrays and a Switching Capacity of 48Gbps, this high performance switch is ideal for server aggregation applications, as a departmental switch, or to support Gigabit Ethernet to the desktop for power users.

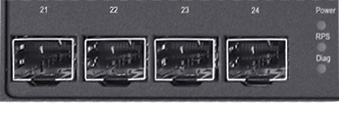

The SFP slots on the switch support all types of Gigabit mini-GBIC modules - 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable - enabling copper or fibre uplinks.
A member of the Edge-Core ES4500 family of switches, the ES4524D has advanced Layer 2 management features, including 802.3ad Link Aggregation and IGMP support, are complemented by comprehensive QoS and enhanced security functions. Switch management is accessed via a HTTP browser-based interface, CLI via console port or Telnet, or SNMP. The switch also offers comprehensive IPv6 functions, and also supports IP switch clustering with virtual switch clusters managed as a single entity via one IP address.
The switch offers a range of features designed to maximise resilience and availability, including support for uo to four ECS4612 swirtches to be provided with full redundant power supply from an optional Edge-Core RPS600WA Rackmount Power Supply.
The SFP slots on the switch support all types of Gigabit mini-GBIC modules - 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable - enabling copper or fibre uplinks.
A member of the Edge-Core ES4500 family of switches, the ES4524D has advanced Layer 2 management features, including 802.3ad Link Aggregation and IGMP support, are complemented by comprehensive QoS and enhanced security functions. Switch management is accessed via a HTTP browser-based interface, CLI via console port or Telnet, or SNMP. The switch also offers comprehensive IPv6 functions, and also supports IP switch clustering with virtual switch clusters managed as a single entity via one IP address.
The switch offers a range of features designed to maximise resilience and availability, including support for uo to four ECS4612 swirtches to be provided with full redundant power supply from an optional Edge-Core RPS600WA Rackmount Power Supply.
| • | 24x Gigabit 10/100/1000Mbps RJ-45 ports | |
| • | 4x combo RJ-45/SFP port arrays | |
| • | Fibre interface for long distance network connectivity | |
| • | Superior wirespeed switching performance | |
| • | Advanced Layer 2 and L4 QoS features | |
| • | SNMP and RMON | |
| • | High performance network security and management capabilities | |
| • | IP switch clustering | |

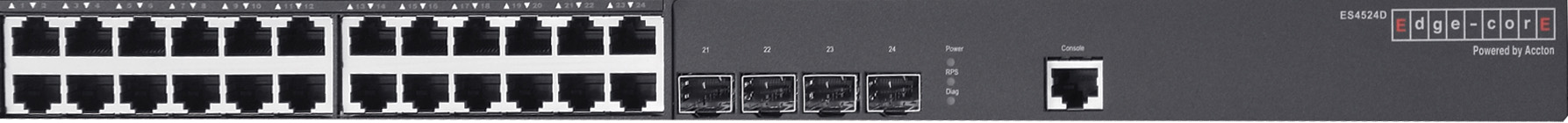

| Physical Ports | |
| • | 24x 1000Base-T Gigabit RJ-45 ports |
| • | 4x combo Gigabit RJ-45/SFP port arrays (RJ-45 ports paired with main RJ-45 ports) |
| • | 1x Redundant Power Supply Connector (for optional RPS600WA Rackmount Power Supply) |
| Performance | |
| • | Switching Capacity: 48Gbps |
| • | Forwarding Rate: 35.7Mpps |
| • | Flash: 16MB |
| • | SDRAM:64MB |
| • | Packet buffer size: 0.75MB |
| • | MAC Address Table Size: 8K |
| Layer 2 Features | |
| QoS Features | |
| Enhanced Security Features | |
| Management | |
| Switch Management | |
| • | Web GUI management |
| • | CLI via console port or Telnet |
| • | SNMP v1, v2c, v3 |
| • | IPV6 Features |
| Mechanical | |
| Form Factor | |
| • | 1RU |
| Dimensions | |
| • | 44mm x 440mm x 331mm (H x W x D) |
| LED Indicators | |
| • | Port, Uplink, Power, Diagnostic |
| AC Power Input | |
| • | 100-240VAC, 50-60Hz |
| Safety | |
| • | CSA/NRTL (UL1950, CSA 22.2.950), TUV/GS (EN60950), CB |
| Electromagnetic Compatibility | |
| • | CE Mark, FCC Class A, VCCI Class A, C-Tick |
| Environmental Specifications | |
| Temperature | |
| • | IEC 68-2-14 |
| • | 0° to 50°C (Standard Operating) |
| • | -40° to 70°C (Non-Operating) |
| Humidity | |
| • | 5% to 95% (Non-condensing) |
| Vibration | |
| • | IEC 68-2-36, IEC 68-2-6 |
| Shock | |
| • | IEC 68-2-29 |
| Drop | |
| • | IEC 68-2-32 |
