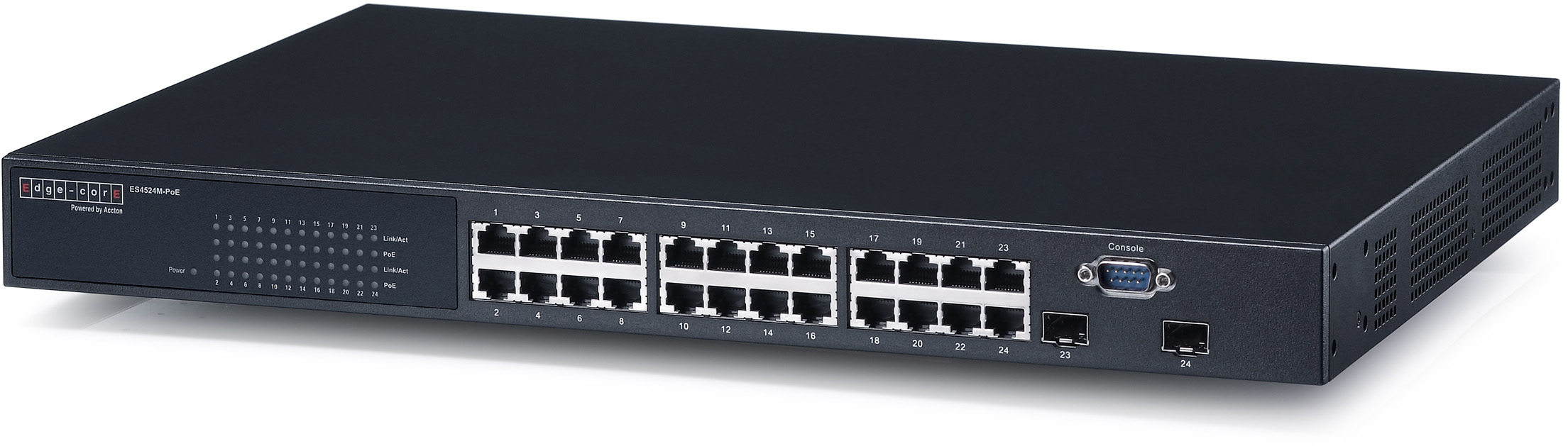

The Edge-Core ES4524M-PoE is a Layer 2/4 Gigabit Ethernet Power over Ethernet switch. With 24 RJ-45 ports and 4 RJ-45/SFP port arrays and all RJ-45 ports supporting PoE, this switch is ideal for powering devices such as IP phones via UTP cable.
All of the switches 1000Base-T Gigabit ports support IEEE202.3af compliant Power over Ethernet, enabling the delivery of data and power simultaneously over existing CAT 5 (or higher) UTP cable, and making the switch as ideal solution for workgroups that require Gigabit bandwidth and the powering of devices such as IP phones, wireless access points and surveillance cameras via the network cable infrastructure.
The SFP slots on the switch support all types of Gigabit mini-GBIC modules - 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable - enabling copper or fibre uplinks.
A member of the Edge-Core ES4500 family of switches, the ES4524M-PoE has advanced Layer 2 management features, including 802.3ad Link Aggregation and IGMP support, are complemented by comprehensive QoS and enhanced security functions. Switch management is accessed via a HTTP browser-based interface, CLI via console port or Telnet, or SNMP. The switch also supports IP switch clustering with up to 36 switches managed as a single entity 'virtual switch stack' via one IP address.
The switch offers a range of features designed to maximise availability, including IEEE 802.3ad Link Aggregation Control Protocol (LACP). It increases bandwidth by automatically aggregating several physical links together as a logical trunk and offers load balancing and fault tolerance for uplink connections.
|•||22 x 10/100/1000 Base-T plus 2 Gigabit Combo (RJ-45/SFP) port arrays|
|•||PoE (Power over Ethernet) support on all ports|
|•||Supports up to 7.5W for each RJ-45 port|
|•||Total power for PoE support up to 180W|
|•||Superior wirespeed switching performance|
|•||High performance network security and management capability|
|•||Advance QoS features for triple play|
|•||Enhanced scalability and availability features|
|•||IP switch clustering for up to 36 switches|

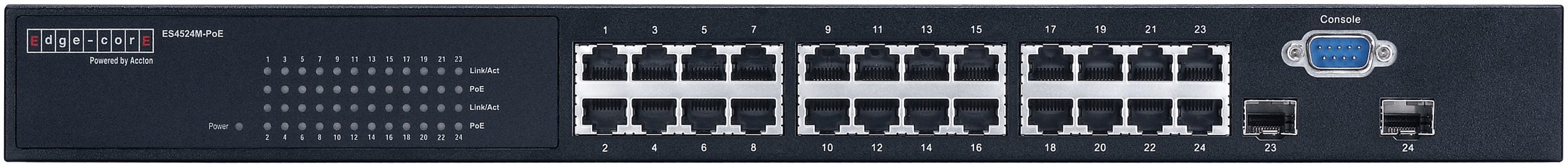

|•||24x 1000Base-T Gigabit RJ-45 PoE ports|
|•||2x combo Gigabit RJ-45/SFP port arrays (RJ-45 ports paired with main RJ-45 ports)|
|•||1x RS-232 console port|
|•||Switching Capacity: 48Gbps|
|•||Forwarding Rate: 35.7Mpps|
|•||Packet buffer size: 384KB|
|•||MAC Address Table Size: 8K|
|•||IEEE 802.3af compliant|
|•||Supports up to 7.5W for each port|
|•||Total power for PoE: Up to 180W|
|Layer 2 Features|
|Enhanced Security Features|
|•||Web GUI management|
|•||CLI via console port or Telnet|
|•||SNMP v1, v2c, v3|
|•||43mm x 438mm x 328mm (H x W x D)|

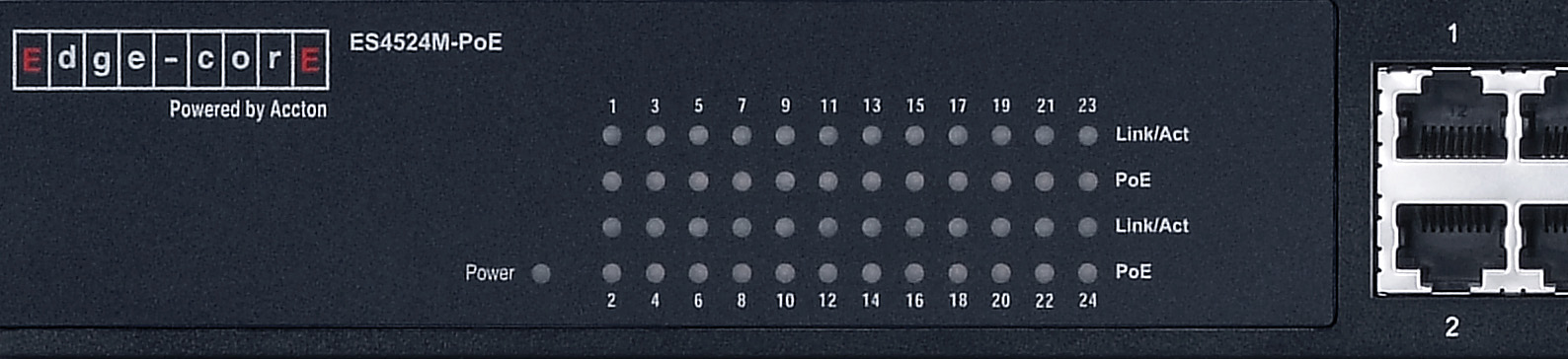

|•||Power, Link, Act, PoE|
|AC Power Input|
|•||UL/CUL ; CSA/CUS (UL60950-1, CSA 22.2.No 60950-1), TUV/GS (EN60950-1), CB (IEC60950-1)|
|•||0° to 45°C (Standard Operating)|
|•||-40° to 70°C (Non-Operating)|
|•||10% to 90% (Non-condensing)|
