This product has been discontinued by Alloy.

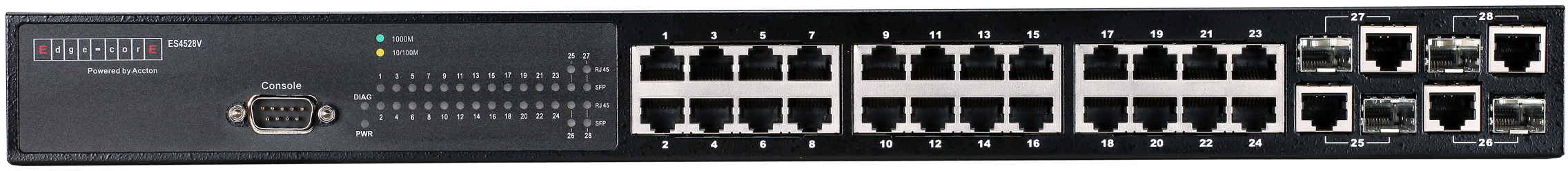

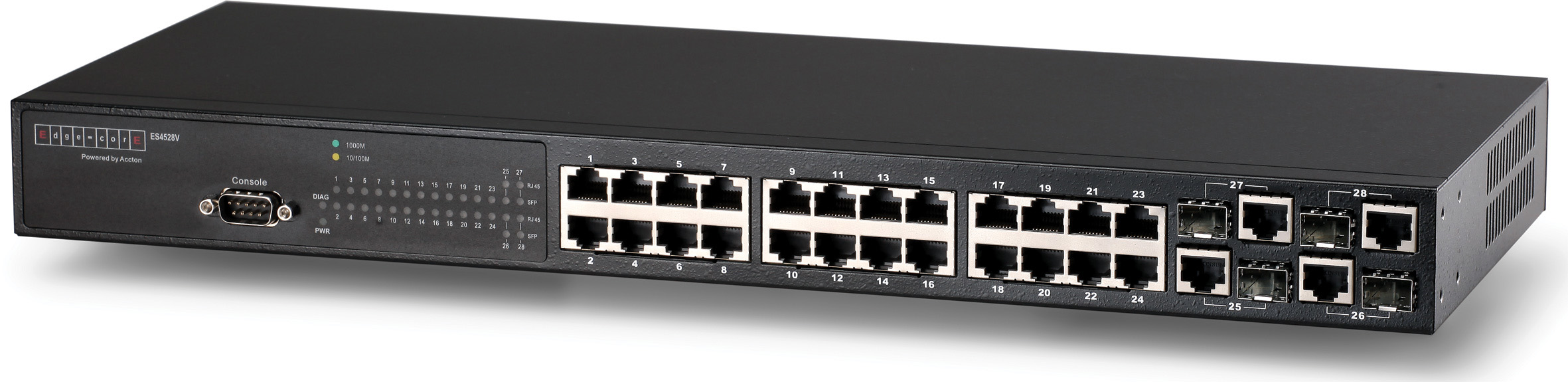

The Edge-Core ES4528V is a wirespeed Layer 2/4 Gigabit Ethernet switch that supports 'green' power saving. With 24 1000Base-T RJ-45 and 4 RJ-45/SFP port arrays, this is a high performance switch that is efficient and economical to run.

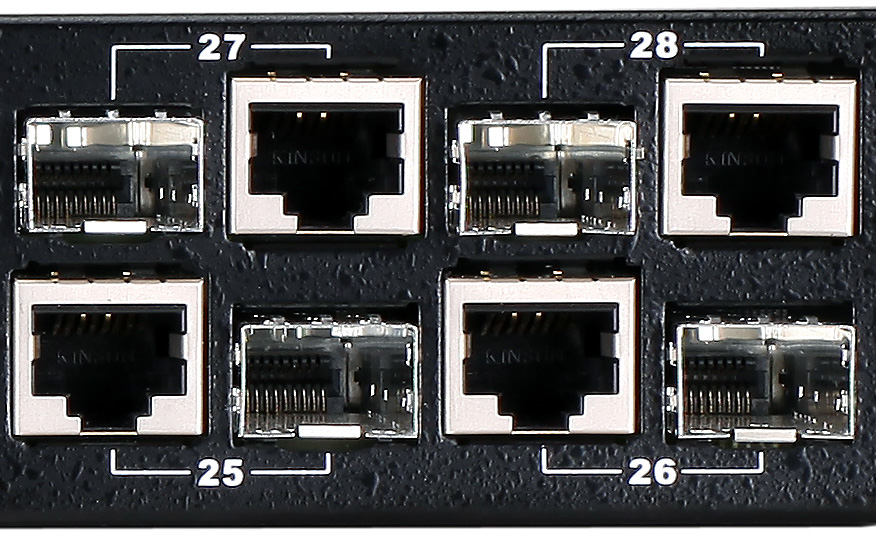

The SFP slots on the switch support all types of Gigabit mini-GBIC modules - 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable - enabling copper or fibre uplinks.
A member of the Edge-Core ES4500 family of switches, the ES4528V has advanced Layer 2 management features, including 802.3ad Link Aggregation and IGMP support, are complemented by comprehensive QoS and enhanced security functions. Switch management is accessed via a HTTP browser-based interface, CLI via console port or Telnet, or SNMP. The switch also offers comprehensive IPv6 functions, and also supports IP switch clustering with virtual switch clusters managed as a single entity via one IP address.
The switch offers a range of features designed to maximise availability, including IEEE 802.3ad Link Aggregation Control Protocol (LACP). It increases bandwidth by automatically aggregating several physical links together as a logical trunk and offers load balancing and fault tolerance for uplink connections.
|•||24x Gigabit 10/100/1000Mbps RJ-45 ports|
|•||4x combo RJ-45/SFP port arrays|
|•||Fibre interface for long distance network connectivity|
|•||Superior wirespeed switching performance|
|•||Advanced Layer 2 and L4 QoS features|
|•||SNMP and RMON|
|•||High performance network security and management capabilities|
|•||"Green" energy saving switch - 32 watts maximum consumption|
|•||24x 1000Base-T Gigabit RJ-45 ports|
|•||4x combo Gigabit RJ-45/SFP port arrays|
|•||1x RS-232 console port|
|•||Switching Capacity: 56Gbps|
|•||Forwarding Rate: 41.7Mpps|
|•||Packet buffer size: 1.75MB|
|•||MAC Address Table Size: 8K|
|Layer 2 Features|
|Enhanced Security Features|
|•||Web GUI management|
|•||CLI via console port or Telnet|
|•||SNMP v1, v2c, v3|
|•||43mm x 440mm x 172mm (H x W x D)|
|•||Port, Uplink, Power, Diagnostic|
|AC Power Input|
|•||32 watts maximum|
|•||CSA/NRTL (UL60950, CSA 22.2.No 60950), TUV/GS(EN60950), CB|
|•||CE Mark Class A, EN50081-1, EN55022 Class A, EN50082-1, IEC 1000-4-2/3/4/6, EN60555-2 Class A, EN60555-3, FCC Class A. VCCI Class A, C-Tick|
|•||0° to 45°C (Standard Operating)|
|•||-40° to 70°C (Non-Operating)|
|•||10% to 90% (Non-condensing)|
|•||IEC 68-2-36, IEC 68-2-6|
