This product has been discontinued by Alloy.

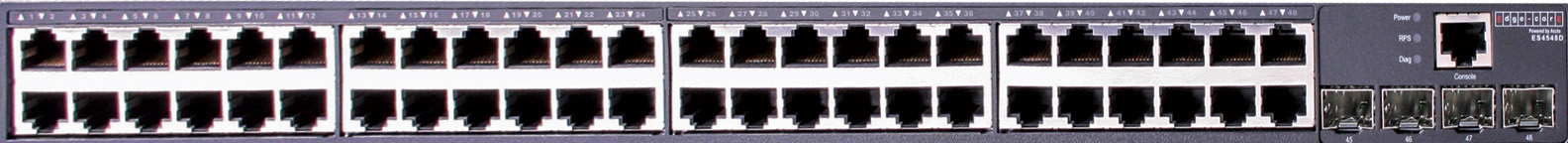

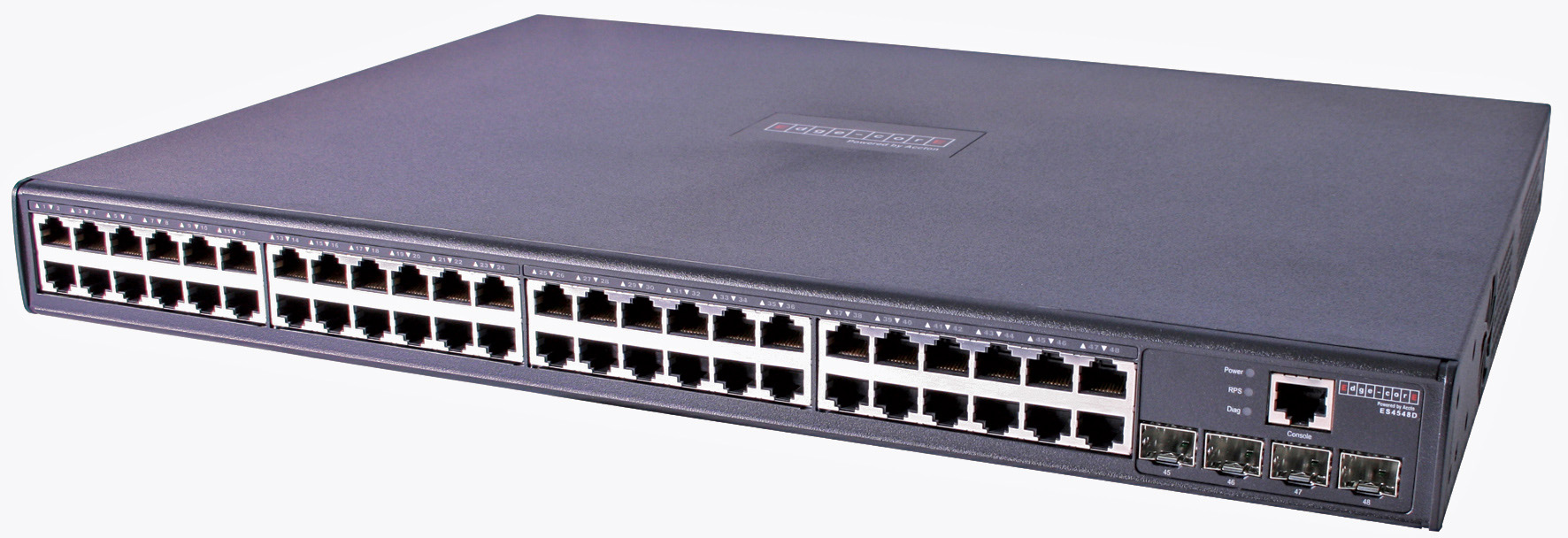

The Edge-Core ES4548D is a wirespeed Layer 2/4 Gigabit Ethernet switch. With 48 1000Base-T RJ-45 ports and 4 combo RJ-45/SFP port arrays, this is a high performance, high density switch ideal for use as a departmental switch for larger workgroups.

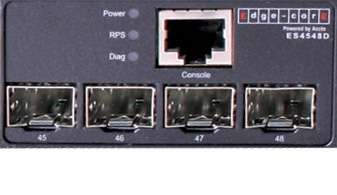

The SFP slots on the switch support all types of Gigabit mini-GBIC modules - 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable - enabling copper or fibre uplinks.
A member of the Edge-Core ES4500 family of switches, the ES4548D has advanced Layer 2 management features, including 802.3ad Link Aggregation and IGMP support, are complemented by comprehensive QoS and enhanced security functions. Switch management is accessed via a HTTP browser-based interface, CLI via console port or Telnet, or SNMP. The switch also offers comprehensive IPv6 functions, and also supports IP switch clustering with virtual switch clusters managed as a single entity via one IP address.
The switch offers a range of features designed to maximise resilience and availability, including support for up to four ECS4612 swirtches to be provided with full redundant power supply from an optional Edge-Core RPS600WA Rackmount Power Supply.
|•||48x Gigabit 10/100/1000Mbps RJ-45 ports|
|•||4x combo RJ-45/SFP port arrays|
|•||Fibre interface for long distance network connectivity|
|•||Superior wirespeed switching performance|
|•||Advanced Layer 2 and L4 QoS features|
|•||SNMP and RMON|
|•||High performance network security and management capabilities|
|•||IP switch clustering|
|•||48x 1000Base-T Gigabit RJ-45 ports|
|•||4x combo Gigabit RJ-45/SFP port arrays (RJ-45 ports paired with main RJ-45 ports)|
|•||1x Redundant Power Supply Connector (for optional RPS600WA Rackmount Power Supply)|
|•||Switching Capacity: 96Gbps|
|•||Forwarding Rate: 71.5Mpps|
|•||Packet buffer size: 0.75MB|
|•||MAC Address Table Size: 8K|
|Layer 2 Features|
|Enhanced Security Features|
|•||Web GUI management|
|•||CLI via console port or Telnet|
|•||SNMP v1, v2c, v3|
|•||44mm x 440mm x 331mm (H x W x D)|
|•||Port, Uplink, Power, Diagnostic|
|AC Power Input|
|•||CSA/NRTL (UL1950, CSA 22.2.950), TUV/GS (EN60950), CB|
|•||CE Mark, FCC Class A, VCCI Class A, C-Tick|
|•||0° to 50°C (Standard Operating)|
|•||-40° to 70°C (Non-Operating)|
|•||5% to 95% (Non-condensing)|
|•||IEC 68-2-36, IEC 68-2-6|
