discontinued
Edge-Core
ES4612
L3 Managed Gigabit Switch 8x SFP, 4x RJ-45/SFP
This product has been discontinued by Alloy.

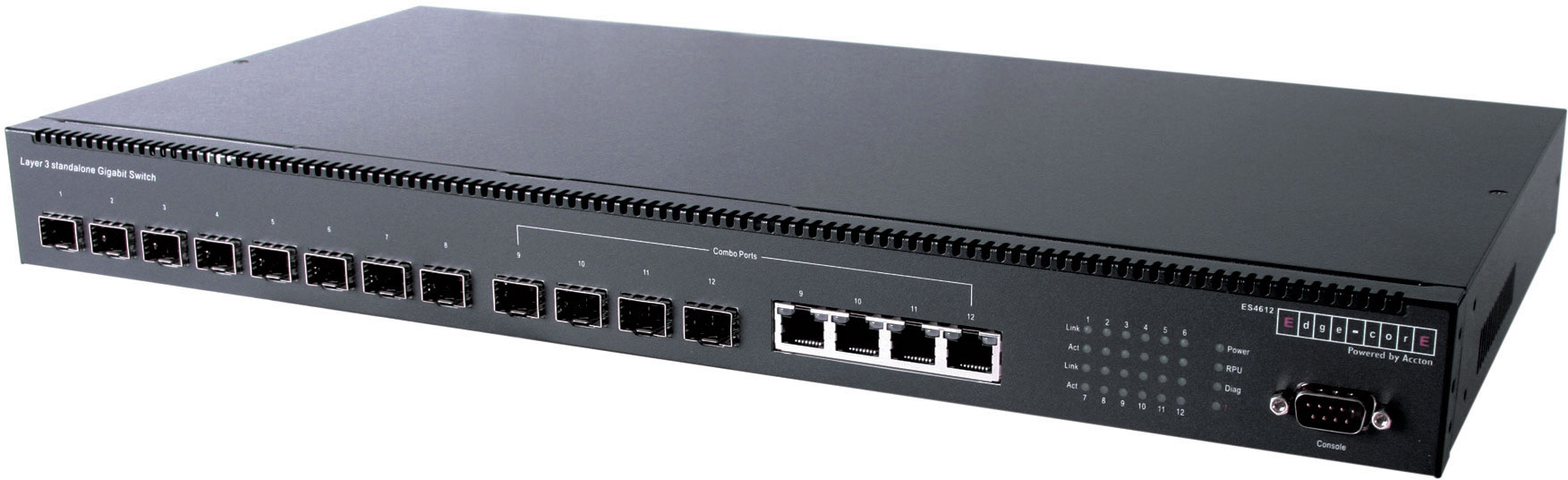

The Edge-Core ES4612 is a Layer 3 Gigabit Ethernet routing switch. With 8 SFP slots and 4 combo RJ-45 port arrays, this is an ideal solution for use in the distribution layer of three-tier networks or as a core switch for smaller enterprises.
The Edge-Core ECS4612 is a Layer 3 Gigabit Ethernet routing switch, offering 8 Gigabit SFP slots plus 4 combo Gigabit RJ-45/SFP port arrays. The SFP slots on the switch support all types of Gigabit mini-GBIC modules - 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable.
The ECS4610-24F offers IPv4 and IPv6 Layer 3 hardware-based routing for maximum performance. Advanced Layer 3 and Layer 2 management features can be accessed via an HTTP interface, CLI, or SNMP. Comprehensive Quality of Service and enhanced security functions are supported.
The switch offers a range of features designed to maximise resilience and availability, including support for uo to four ECS4612 swirtches to be provided with full redundant power supply from an optional Edge-Core RPS600WA Rackmount Power Supply.
The ECS4612 provides a cost-effective, wirespeed Layer 3 switching and routing solution, with a comprehensive feature set, robust security functions, and powerful QoS features that delivers the scalability and reliability required in modern converged networks. It is ideal for use in the distribution layer of three-tier networks and provides long distance fiber connections to aggregate access layer switches that are dispersed in different buildings. It also an excellent choice as a core switch for smaller enterprises.
The ECS4610-24F offers IPv4 and IPv6 Layer 3 hardware-based routing for maximum performance. Advanced Layer 3 and Layer 2 management features can be accessed via an HTTP interface, CLI, or SNMP. Comprehensive Quality of Service and enhanced security functions are supported.
The switch offers a range of features designed to maximise resilience and availability, including support for uo to four ECS4612 swirtches to be provided with full redundant power supply from an optional Edge-Core RPS600WA Rackmount Power Supply.
The ECS4612 provides a cost-effective, wirespeed Layer 3 switching and routing solution, with a comprehensive feature set, robust security functions, and powerful QoS features that delivers the scalability and reliability required in modern converged networks. It is ideal for use in the distribution layer of three-tier networks and provides long distance fiber connections to aggregate access layer switches that are dispersed in different buildings. It also an excellent choice as a core switch for smaller enterprises.
| • | 8x 1000Base-X SFP Ports, 4x RJ-45/SFP port arrays | |
| • | Fibre interface for long distance network connectivity | |
| • | Superior wirespeed IP routing capability | |
| • | Advanced Layer 3 and 2 features | |
| • | SNMP and RMON | |
| • | Advanced QoS features for data/voice/video traffic | |
| • | High performance network security and management capabilities | |

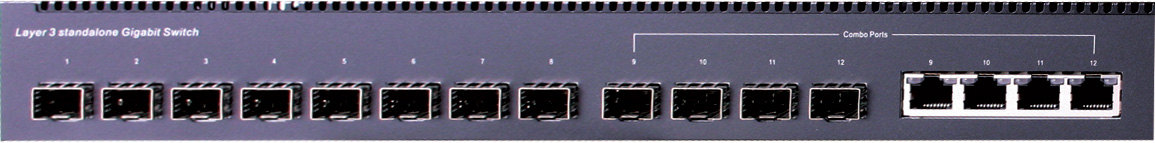

| Physical Ports | |
| • | 8x Gigabit Ethernet SFP slots |
| • | 4x combo Gigabit RJ-45/SFP port arrays |
| • | 1x RS-232 console port |
| • | 1x Redundant Power Supply Connector (for optional RPS600WA Rackmount Power Supply) |
| Performance | |
| • | Switching Capacity: 24Gbps |
| • | Forwarding Rate: 17.9Mpps |
| • | Packet buffer size: 1MB |
| • | MAC Address Table Size: 16K |
| Layer 3 Features | |
| Layer 2 Features | |
| QoS Features | |
| Enhanced Security Features | |
| Management | |
| Switch Management | |
| • | Web GUI management |
| • | CLI via console port or Telnet |
| • | SNMP v1 and v2c |
| Mechanical | |
| Form Factor | |
| • | IRU |
| Dimensions | |
| • | 4mm x 440mm x 324mm (H x W x D) |

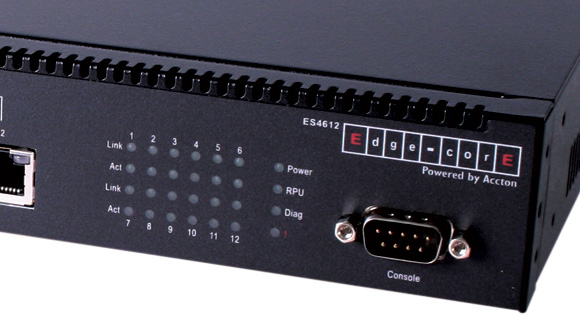

| LED Indicators | |
| • | Link, Act (per port). Uplink, Power, Diagnostic, RPU |
| AC Power Input | |
| • | 100-240VAC, 50-60Hz |
| Safety | |
| • | CSA/NRTL (UL1950, CSA 22.2.950), TUV/GS (EN60950), CB |
| Electromagnetic Compatibility | |
| • | CE Mark, FCC Class A, VCCI Class A, CISPR Class A, C-Tick |
| Environmental Specifications | |
| Temperature | |
| • | IEC 68-2-14 |
| • | 0° to 50°C (Standard Operating) |
| • | -40° to 70°C (Non-Operating) |
| Humidity | |
| • | 5% to 95% (Non-condensing) |
| Vibration | |
| • | IEC 68-2-36, IEC 68-2-6 |
| Shock | |
| • | IEC 68-2-29 |
| Drop | |
| • | IEC 68-2-32 |
