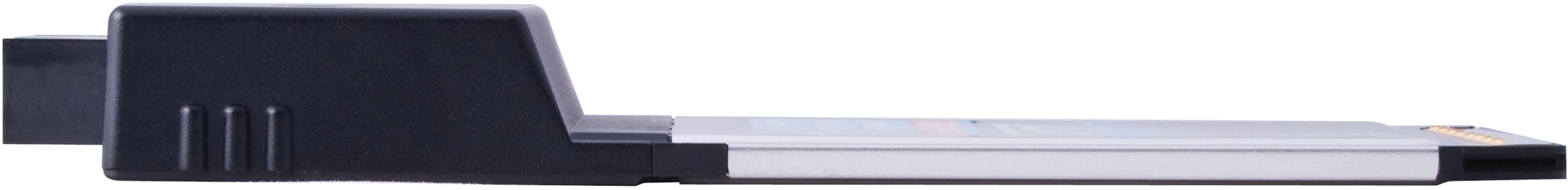

The FE-6590SC.S40 is a 100Base-FX fibre Network Adapter, designed for notebooks equipped with a CardBus PCMCIA slot. Part of the FE6590 Series, model FE-6590SC.S40 has an SC connector, with a range of 40 kilometres over singlemode cable.
With its unique, robust, single piece design, FE-6590 Series Adapters are easy to use and install. They requires no external power supply, but derives all power for the fibre interface of the host system. FE6590 Series Adapters are Plug and Play devices.
The FE-6590 Series has been supplied to military and government departments worldwide, and is an ideal solution for notebook network connectivity where either the range or security of fibre optic networking is essential.
|•||PCMCIA Type II CardBus PC Card|
|•||Ideal solution for fibre to notebook applications|
|•||Robust single-piece card design with integral fibre connectors|
|•||Singlemode model with maximum range of 40 kilometres|
|•||Designed to fit ruggedised notebooks|
|•||Wide operating system support|
|•||IEEE 802.3u Fast Ethernet 100Base-FX|
|•||PCMCIA Type II CardBus|
|•||Type II CardBus PC Card 68-pin connector|
|Data Transfer Rate/Mode|
|•||Full or half-duplex mode|
|Fibre Optic Cable Type/Range|
|•||40 Kilometres (maximum)|
|•||Windows 7, Vista, XP, 2000, 98, NT|
|•||0.5A @ +3.3V, 0.5A @ +5V maximum|
|•||0° to 50°C (32° to 104°F)|
|•||5% to 90%|
|•||54mm(H) x 140mm(L) x 16mm(D - at port connector housing)|
|•||Complies with FCC Part 15 Class B, CE Mark; C-Tick|
