ALLOY
FE-6590STR
100Base-FX CardBus Multimode Fibre NIC ST-R Port, 2Km
This product has been discontinued by Alloy.

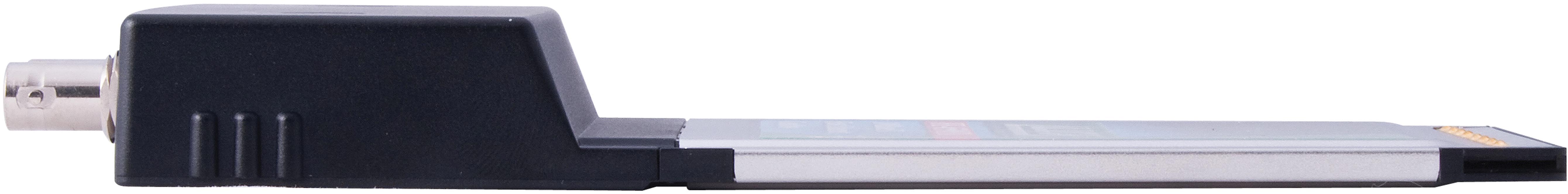

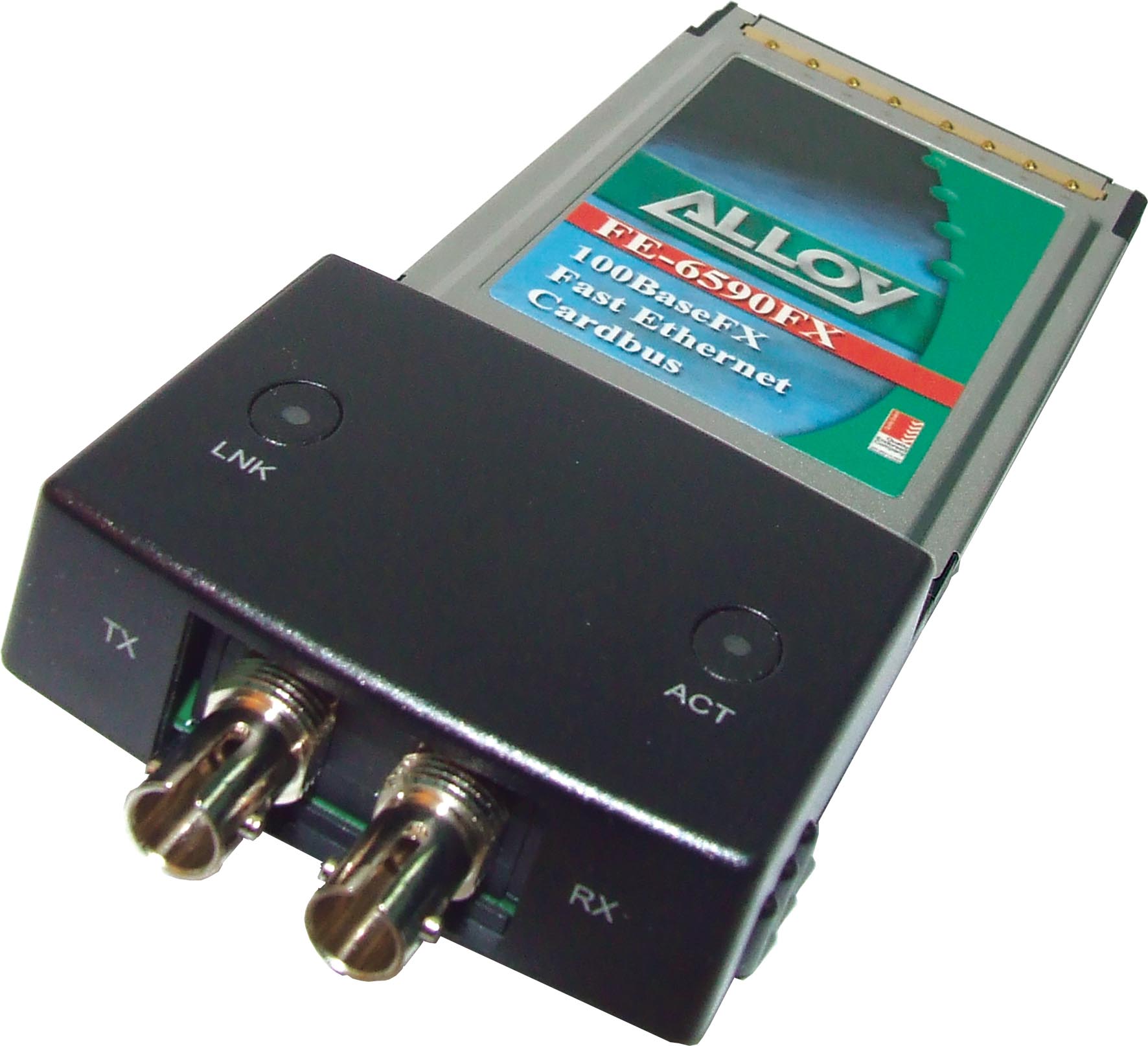

The FE-6590STR is a 100Base-FX fibre Network Adapter, designed for notebooks equipped with a CardBus PCMCIA slot. Part of the FE6590 Series, the FE-6590STR has a ruggedised all metal ST connector, with a range of 2 kilometres over multimode cable.
Alloy's FE-6590 Series of Fast Ethernet fibre optic PCMCIA CardBus Network Adapters is the perfect solution for connecting Notebooks to high speed fibre optic LANs via a 32-bit PCMCIA interface. Supporting 100Mbps data throughput in both full and half duplex environments, the single piece card features an SC, ST or ruggedised ST fibre optic connector and diagnostic LED's attached directly onto the PCMCIA card body. Individual models in the FE-6590 Series are designed for use with either multimode or singlemode fibre optic cable. With multimode models the maximum range is 2 kilometres, whilst singlemode models support up to 60Km range. Drivers are provided for all major Network Operating Systems.
With its unique, robust, single piece design, FE-6590 Series Adapters are easy to use and install. They requires no external power supply, but derives all power for the fibre interface of the host system. FE6590 Series Adapters are Plug and Play devices.
The FE-6590 Series has been supplied to military and government departments worldwide, and is an ideal solution for notebook network connectivity where either the range or security of fibre optic networking is essential.
With its unique, robust, single piece design, FE-6590 Series Adapters are easy to use and install. They requires no external power supply, but derives all power for the fibre interface of the host system. FE6590 Series Adapters are Plug and Play devices.
The FE-6590 Series has been supplied to military and government departments worldwide, and is an ideal solution for notebook network connectivity where either the range or security of fibre optic networking is essential.
| • | PCMCIA Type II CardBus PC Card | |
| • | Ideal solution for fibre to notebook applications | |
| • | Robust single-piece card design with integral fibre connectors | |
| • | Multimode model with maximum range of 2 kilometres | |
| • | Ruggedised all-metal damage resistant ST connector | |
| • | Designed to fit ruggedised notebooks | |
| • | Diagnostic LEDS | |
| • | Wide operating system support | |
| • | RoHS Compliance | |
| Standards Compliance | |
| • | IEEE 802.3u Fast Ethernet 100Base-FX |
| • | PCMCIA Type II CardBus |
| Card Slot | |
| • | Type II CardBus PC Card 68-pin connector |
| Connector Type | |
| • | Ruggedised, all-metal damage resistant ST |
| Data Transfer Rate/Mode | |
| • | 100Mbps |
| • | Full or half-duplex mode |
| Fibre Optic Cable Type/Range | |
| • | 62.5/125, 50/125µm multimode |
| • | 2 Kilometres (maximum) |
| Diagnostic LEDS | |
| • | Link |
| • | Activity |
| Driver Support | |
| • | Windows 7, Vista, XP, 2000, 98, NT |
| • | NetWare |
| Power Requirement | |
| • | 0.5A @ +3.3V, 0.5A @ +5V maximum |
| Environmental Specifications | |
| Ambient Temperature | |
| • | 0° to 50°C (32° to 104°F) |
| Humidity | |
| • | 5% to 90% |
| Physical Specifications | |
| Dimensions | |
| • | 54mm(H) x 140mm(L) x 16mm(D - at port connector housing) |
| Weight | |
| • | 60 grams |
| Emission Approvals | |
| • | Complies with FCC Part 15 Class B, CE Mark; C-Tick |
