This product has been discontinued by Alloy.

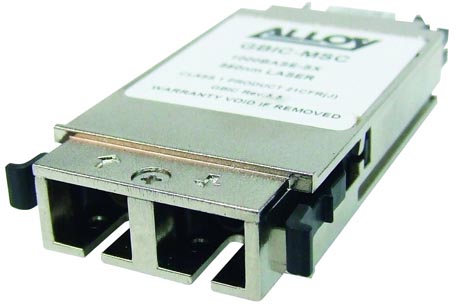

The GBIC-MSC is a 1000Base-SX Multimode Fibre GBIC module that can be installed into switches supporting a gigabit based GBIC slot.
The flexibility of the GBIC interface allows users the ability to interchange modules at their convenience. This allows administrators to upgrade their cabling infrastructure without the need to upgrade their switching equipment.
GBIC modules are hot-swappable adding another level of convenience for the administrator.
|•||Up to 1.25Gb/s bi-directional data links|
|•||850nm VCSEL laser and PIN photodetector|
|•||Standard serial ID information compatible with SFF-8053|
|•||Duplex SC optical interface|
|•||550m transmission with 50/125µm MMF|
|•||220m transmission with 62.5/125µm MMF|
|•||+3.3V/5V single power supply|
|•||Temperature range: 0° to +70°C|
|•||1000Base-SX Multimode Fibre|
|•||Receive Sensitivity: -18dBm|
|•||Transmit Power: -9 ~ -3dBm|
|•||Input Voltage: Max. 3.47V|
|•||Supply Current: Max. 300mA|
|•||Operating Temperature: 0° to 70° C|
|•||Storage Temperature: -40° to 85° C|
