This product has been discontinued by Alloy.

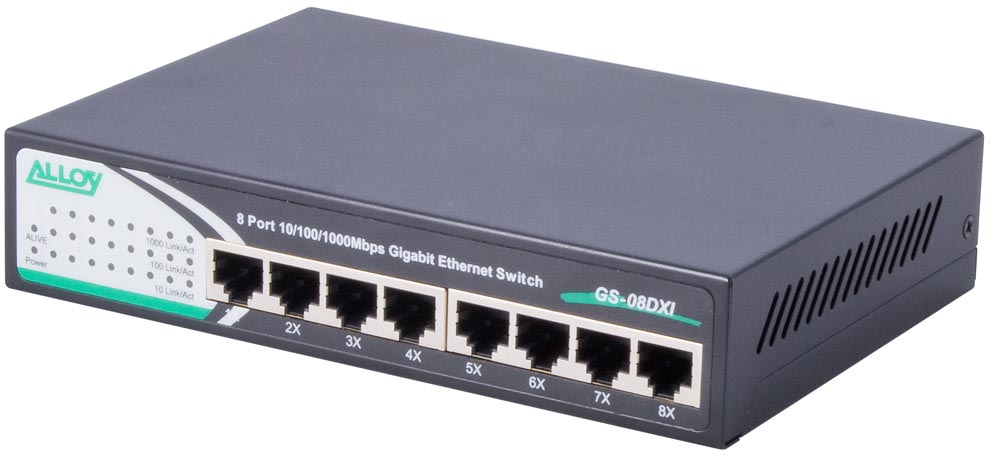

The GS-08DXI is an unmanaged desktop switch that makes Gigabit Ethernet performance affordable for smallerworkgroups. With 8 auto-sensing 10/100/1000Mbps ports, this plug-and-play switch provides the bandwidth demanded by modern business processes.
The GS-08DXI has eight auto-sensing, auto-negotiating ports. The ports auto detect network speeds of 10Mbps, 100Mbps and 1000Mbps, while also auto detecting full and half duplex modes. All eight ports allow for simple "plug and play" installation with workstations/servers or with uplinks to other switches via auto-sensing of MDI or MDI-X connections.
|•||Complies with IEEE 802.3ab 1000Base-T Gigabit standard|
|•||Store and Forward switching architecture|
|•||8x 10/100/1000Mbps ports with full/half Duplex auto-detection|
|•||IEEE 802.3x or Back Pressure (HDX) Flow Control|
|•||8K MAC Address with automatic learning|
|•||144KB Frame Buffer|
|•||Compact desktop case - robust all-metal construction|
|•||Complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-Tx and IEEE 802.3ab 1000Base-T standards|
|•||1000Base-T: Supports up to 100M of ‘Category 5e UTP cable.|
|•||100Base-TX: Supports up to 100M of ‘Category 5 UTP cable.|
|•||10Base-T: Support up to 100M of ‘Category 3,4 and 5 UTP cable.|
|•||LED indicators are provided for status monitoring. These include LEDS for system power, port traffic activity/link|
|MAC Addresses Table|
|•||8K MAC Addresses|
|Data RAM Buffer|
|•||Internal 100-240VAC at 50/60Hz|
|•||Temperature: 0°C to 50°C|
|•||Humidity: 5% to 90% RH|
|•||174mm × 123.3mm × 37mm|
|•||GS-08DXI: 1.1Kg (2.42Lbs|
|•||CE, FCC, C-Tick|
