This product is no longer stocked by Alloy
ALLOY

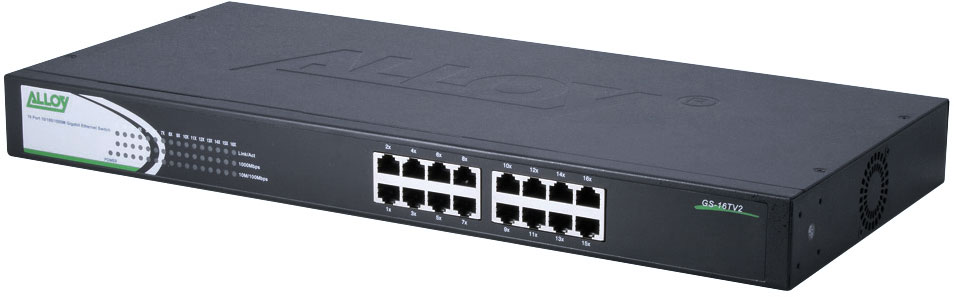

GS-16TV2
16 Port Unmanaged Gigabit Rackmount Switch
Alloy's GS-16TV2 is a 16x Port unmanaged Gigabit Rackmount Switch. The switch provides 16 MDI/MDI-X RJ-45 ports, all supporting the 1000Base-T Gigabit Ethernet standard for 10/100/1000Mbps auto-sensing connectivity.
This product is no longer stocked by Alloy
ALLOY
GS-16TV2
16 Port Unmanaged Gigabit Rackmount Switch
Alloy's GS-16TV2 is a 16x Port unmanaged Gigabit Rackmount Switch. The switch provides 16 MDI/MDI-X RJ-45 ports, all supporting the 1000Base-T Gigabit Ethernet standard for 10/100/1000Mbps auto-sensing connectivity.
Description
Alloy's GS-16TV2 is a 16x Port unmanaged Gigabit Rackmount Switch. The switch provides 16 MDI/MDI-X RJ-45 ports, all supporting the 1000Base-T Gigabit Ethernet standard for 10/100/1000Mbps auto-sensing connectivity.
The GS-16TV2 is Alloy's low cost 16 port Gigabit Ethernet switch. All RJ-45 ports are auto-sensing MDI/MDIX. With a highly integrated single chip architecture and store-and-forward switching fabric, the GS-16TV2 is a non-blocking, full line wirespeed device with 32Gbps backplane bandwidth and an 8,000 MAC address table. The switch is housed in a durable all-metal 1RU rackmount case.The GS-16TV2, one of Alloy's GS Series of switches, is the ideal solution as a central switch for smaller networks that require desktops to be supported with 1000Mbos Gigabit Ethernet performance, or as a departmental switches in larger networks that do not require a managed switch solution.
Features
Store and forward switching fabric and highly integrated single chip design | ||
High speed 32Gbps backplane, supporting non-blocking wire-speed transfer | ||
Support NWAY auto-negotiation on all ports | ||
Auto MDI/MDIX function on all ports | ||
LED suite provides at-a-glance status and diagnostic indicators | ||
IEEE802.3x Full duplex and Half duplex Backpressure Flow Control | ||
19” 1RU all-metal rackmount case | ||
Compliant to IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet and IEEE802.3ab Gigabit Ethernet standards |
