This product is no longer stocked by Alloy
ALLOY
GS-24TV3
24 Port Unmanaged Gigabit Rackmount Switch
Alloy's GS-24TV3 is a 24 Port unmanaged Gigabit 11' Rackmountable Switch. The switch provides 24x MDI/MDI-X RJ-45 ports, all supporting the 1000Base-T Gigabit Ethernet standard for 10/100/1000Mbps auto-sensing connectivity.
This product is no longer stocked by Alloy
ALLOY

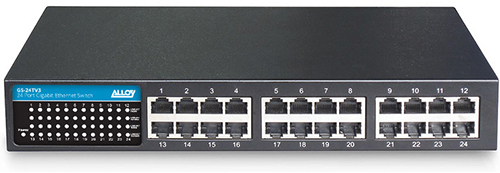

GS-24TV3
24 Port Unmanaged Gigabit Rackmount Switch
Alloy's GS-24TV3 is a 24 Port unmanaged Gigabit 11' Rackmountable Switch. The switch provides 24x MDI/MDI-X RJ-45 ports, all supporting the 1000Base-T Gigabit Ethernet standard for 10/100/1000Mbps auto-sensing connectivity.
Description
Alloy's GS-24TV3 is a 24 Port unmanaged Gigabit 11' Rackmountable Switch. The switch provides 24x MDI/MDI-X RJ-45 ports, all supporting the 1000Base-T Gigabit Ethernet standard for 10/100/1000Mbps auto-sensing connectivity.
The GS-24TV3 is Alloy's low cost 24 Port Gigabit Ethernet switch. All RJ-45 ports are auto-sensing MDI/MDIX. With a highly integrated single chip architecture and store-and-forward switching fabric, the GS-24TV3 is a non-blocking, full line wire speed device with 48Gbps backplane bandwidth and a 16K MAC address table. The switch is housed in a durable all-metal 11' case and provided with 19" rackmount brackets.Backwards compatible with 100Mbps and 10Mbps networking environments the GS-24TV3 is the perfect Gigabit Ethernet Switching solution. With support for the latest IEEE 802.3az Energy Efficient Ethernet (EEE), the GS-24TV3 reduces power consumption by detecting cable lengths and operating load and will automatically adjust the signal strength required to send data to the connecting device.
Features
Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3az standards | ||
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode | ||
16K MAC address with auto-learning and auto-aging | ||
LED indicators for monitoring power, link and activity | ||
Support for Green Saving IEEE 802.3az Energy Efficient Ethernet (EEE) | ||
Support for Jumbo Frames of up to 9216 Bytes | ||
11" Metal Desktop Case with 19" Rackmount brackets supplied |
