This product is no longer stocked by Alloy
ALLOY

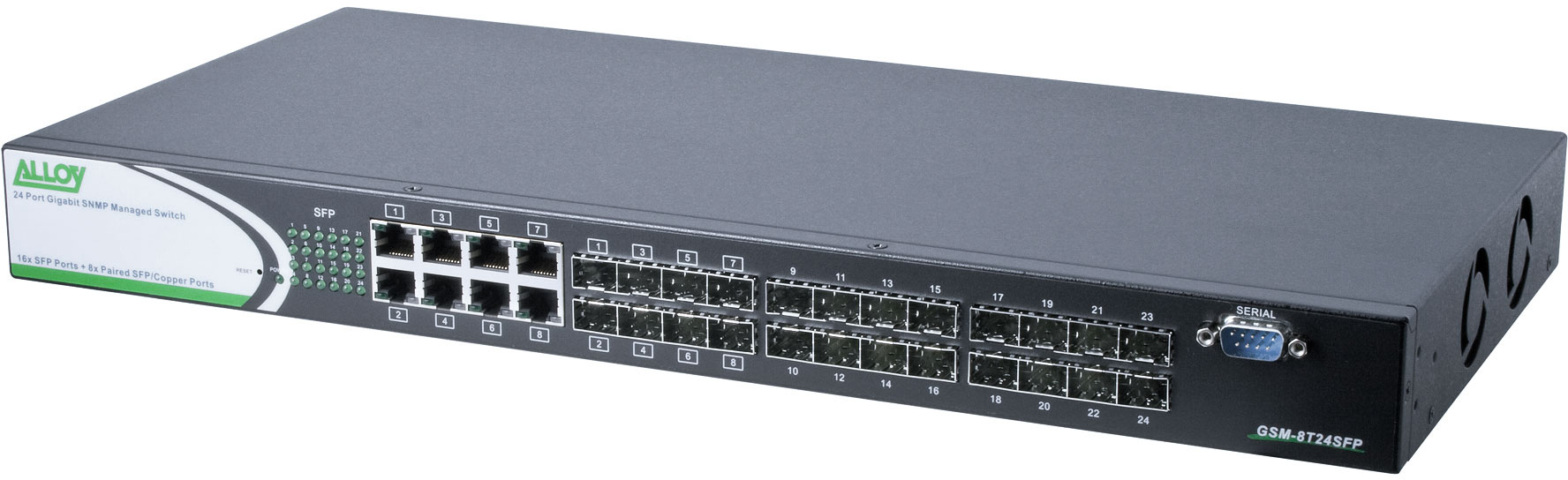

GSM-8T24SFP
L2 Managed Gigabit Ethernet Fibre Switch 8x RJ-45, 24x SFP
The Alloy GSM-8T24SFP is a Layer 2 Gigabit Ethernet Fibre Switch. With 8 RJ-45 ports and 24 /SFP slots, this switch is ideally suited for use as a core switch in small to medium-sized campus networks.
discontinued
This product is no longer stocked by Alloy
ALLOY
GSM-8T24SFP
L2 Managed Gigabit Ethernet Fibre Switch 8x RJ-45, 24x SFP
The Alloy GSM-8T24SFP is a Layer 2 Gigabit Ethernet Fibre Switch. With 8 RJ-45 ports and 24 /SFP slots, this switch is ideally suited for use as a core switch in small to medium-sized campus networks.
Description
The Alloy GSM-8T24SFP is a Layer 2 Gigabit Ethernet Fibre Switch. With 8 RJ-45 ports and 24 /SFP slots, this switch is ideally suited for use as a core switch in small to medium-sized campus networks.
The Alloy GSM-8T24SFP is a Layer 2 Gigabit Ethernet managed switch, with 8 1000Base-T RJ-45 copper ports and 24 SFP port arrays which accept mini-GBIC Transceiver modules. This high performance, high port density device has a fully integrated single chip switching fabric design, ensuring non-blocking performance for Gigabit Ethernet network environments. The SFP slots on the switch support all types of Gigabit mini-GBIC modules - 1000Base-T copper UTP as well as multimode, singlemode and WDM network connectivity over fibre optic cable. This high density of SFP slots combined with the flexibility of using mini-GBIC modules makes the GSM-8T24SFP switch ideally suited for use as a core switch in small to medium sized campus and other types of distributed networks, where multiple network areas need to be supported at range over fibre optic links (GSM-16T4SFP and GSM-24T4SFP will often be used as the departmental switches in this type of solution, with all the GSM Series Switches being centrally managed as virtua group. This feature - VSM (Virtual Stacking Management) IP switch clustering - enables up to 16 GSM Series switches of any model able to be managed as a single VSM entity via one IP address.A member of Alloy's GSM Switch Series, the GSM-8T24SFP has advanced Layer 2 management features, including MAC-based 802.3ad LACP with automatic link fail-over and IGMPv3 Snooping and Proxy. These features are complemented by comprehensive QoS and robust security functions, including ACL and SSL/SSH encryption. Switch management is accessed via a HTTP browser-based interface, CLI via console port or Telnet, or SNMP.
The GSM-8T24SFP also features an energy efficient 'Green Power Saving' design, with functions such as 'client idle' detection and cable length determination enabling significant power consumption reductions.
Features
| 24x Gigabit Ethernet SFP Slots for multimode, singlemode or WDM mini-GBIC modules | ||
| 8x 10/100/1000Mbps 1000Base-T Gigabit RJ-45 ports | ||
| Integrated single chip design for non-blocking, wirespeed switching performance | ||
| Web-based management interface | ||
| SNMP/Telnet interface delivers complete in-band management | ||
| Advanced Layer 2 features including 802.3ad LACP, Q-in-Q VLAN, 802.1D/W/S, IGMPv3 Snooping/Proxy | ||
| Robust network security including ACL, SSL/ SSH, dual Radius support | ||
| Powerful QoS features including 4 queue QCL, DiffServ, WRR & Strict scheduling | ||
| IP switch clustering for up to 16 switches | ||
| Green energy saving design | ||
| Ideal for Campus networks requiring fibre connectivity | ||
