This product has been discontinued by Alloy.

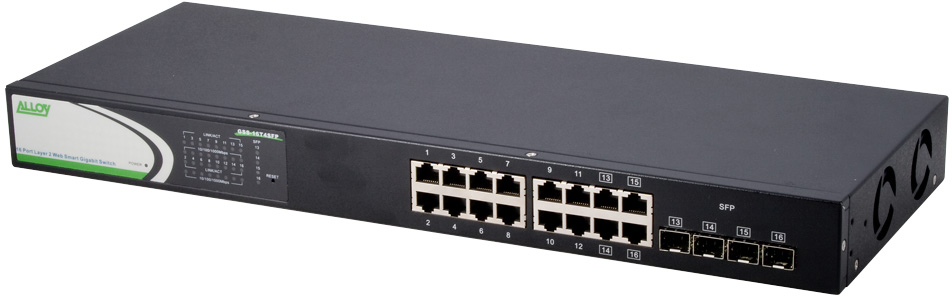

The GSS-16T4SFP is a high performance web managed rackmount chassis switch, designed for Gigabit Ethernet networks that must support 1000Mbps bandwidth right down to the desktop. One of Alloy's GSS Series, this switch represents excellent value.
The GSS-16T4SFP is a member of the GSS Series of switches. These are high performance Websmart devices that provide 4 paired RJ-45/SFP ports and 16, 24 or 48 x 10/100/1000Mbps copper Ethernet ports. With optional fibre transceivers installable into the mini-GBIC slots a combination of either multimode fibre transceivers for short distance applications or singlemode fibre transceivers for long distance applications can be used to construct a high-speed fibre backbone. Management is implemented through in-band Ethernet connectivity. All ports support Non-blocking maximum wire speed performance. Auto-Negotiation and AUTO-MDIX functions are present on all switched 10/100/1000M RJ-45 Gigabit copper ports.
|•||16 10/100/1000Mbps Gigabit Ethernet ports, compliant with IEEE802.3, 802.3u, 802.3z and 802.3ab|
|•||4 paired Copper RJ-45/SFP fibre ports|
|•||Easy to use Web-based management|
|•||Port-based VLAN and tag-based 802.1q VLAN|
|•||802.1p, DSCP and port-based QoS functions|
|•||Port Trunking with flexible load distribution and failover function|
|•||Port mirroring function|
|•||IEEE802.3/802.3ab / 802.3z / 802.3u / 802.3x|
|•||10/100Mbps support full or half duplex|
|•||1000Mbps support full duplex only|
|MAC Address and Self-learning|
|•||8K MAC address|
|•||Embedded 400KB frame buffer|
|•||100 - 240 V|
|•||50 - 60 Hz|
|•||GSS -16T4SFP - 30W|
|•||GSS-16T4SFP - 0 to 50 degrees C|
|•||5% to 90%|
|•||GSS-16T4SFP - 44(H) x 442(W) x 209(D) mm|
