This product has been discontinued by Alloy.
A high performance web managed rackmount switch, designed for Gigabit Ethernet networks supporting Gigabit bandwidth right down to the desktop. One of Alloy's GSS Series, this switch represents excellent value for mid-sized networks.

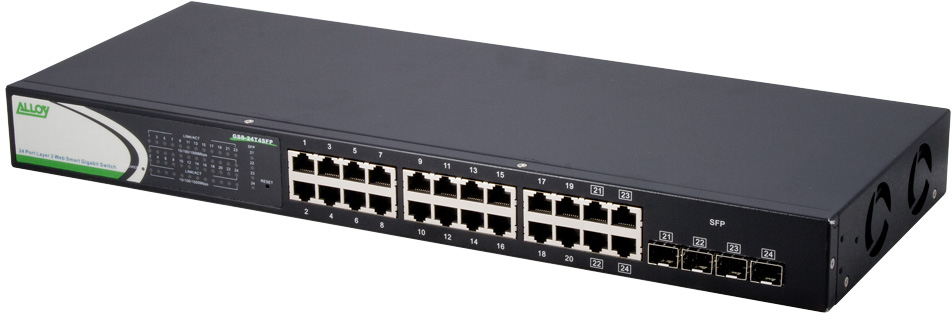

The GSS-24T4SFP is a member of the GSS Series of switches. These are high performance Websmart devices that provide 4 paired RJ-45/SFP ports and 16, 24 or 48 x 10/100/1000Mbps copper Ethernet ports. With optional fibre transceivers installable into the mini-GBIC slots a combination of either multimode fibre transceivers for short distance applications or singlemode fibre transceivers for long distance applications can be used to construct a high-speed fibre backbone. Management is implemented through in-band Ethernet connectivity. All ports support Non-blocking maximum wire speed performance. Auto-Negotiation and AUTO-MDIX functions are present on all switched 10/100/1000M RJ-45 Gigabit copper ports.
|•||24x 10/100/1000Mbps Gigabit Ethernet ports, compliant with IEEE802.3, 802.3u, 802.3z and 802.3ab|
|•||4 Paired Copper/SFP fibre ports|
|•||Web Based Management|
|•||Port Based VLAN and Tag-based (IEEE802.1q) VLAN|
|•||802.1p, DSCP and Port based QoS|
|•||Port Trunking with flexible load distribution and failover function|
|•||Port mirroring function|
|•||IEEE802.3/802.3ab / 802.3z / 802.3u / 802.3x|
|•||10/100Mbps support full or half duplex|
|•||1000Mbps support full duplex only|
|MAC Address and Self-learning|
|•||8K MAC address|
|•||Embedded 400KB frame buffer|
|•||100 - 240 V|
|•||50 - 60 Hz|
|•||GSS-24T4SFP - 30W|
|•||GSS-24T4SFP - 0 to 50 degrees C|
|•||5% to 90%|
|•||GSS-24T4SFP - 44(H) x 442(W) x 209(D) mm|
