Grandstream
GXV3610_HD

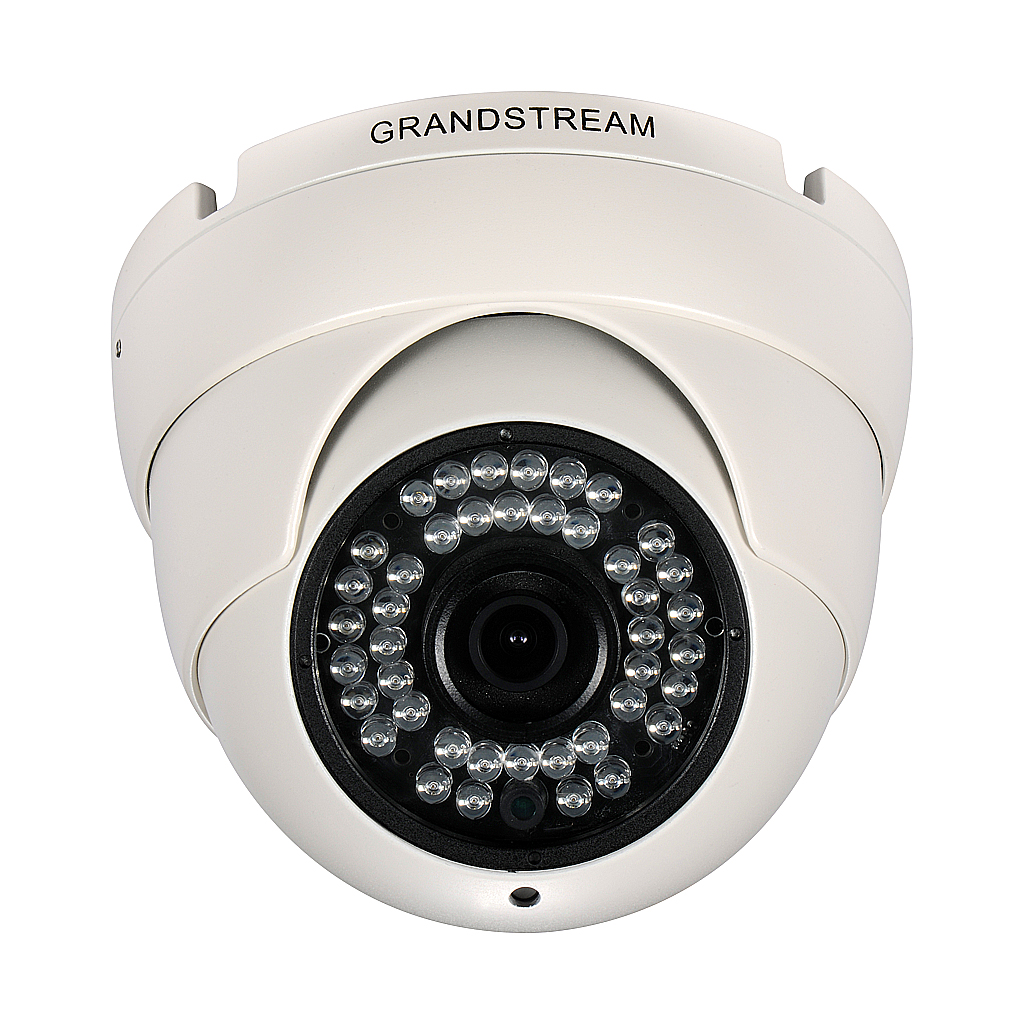

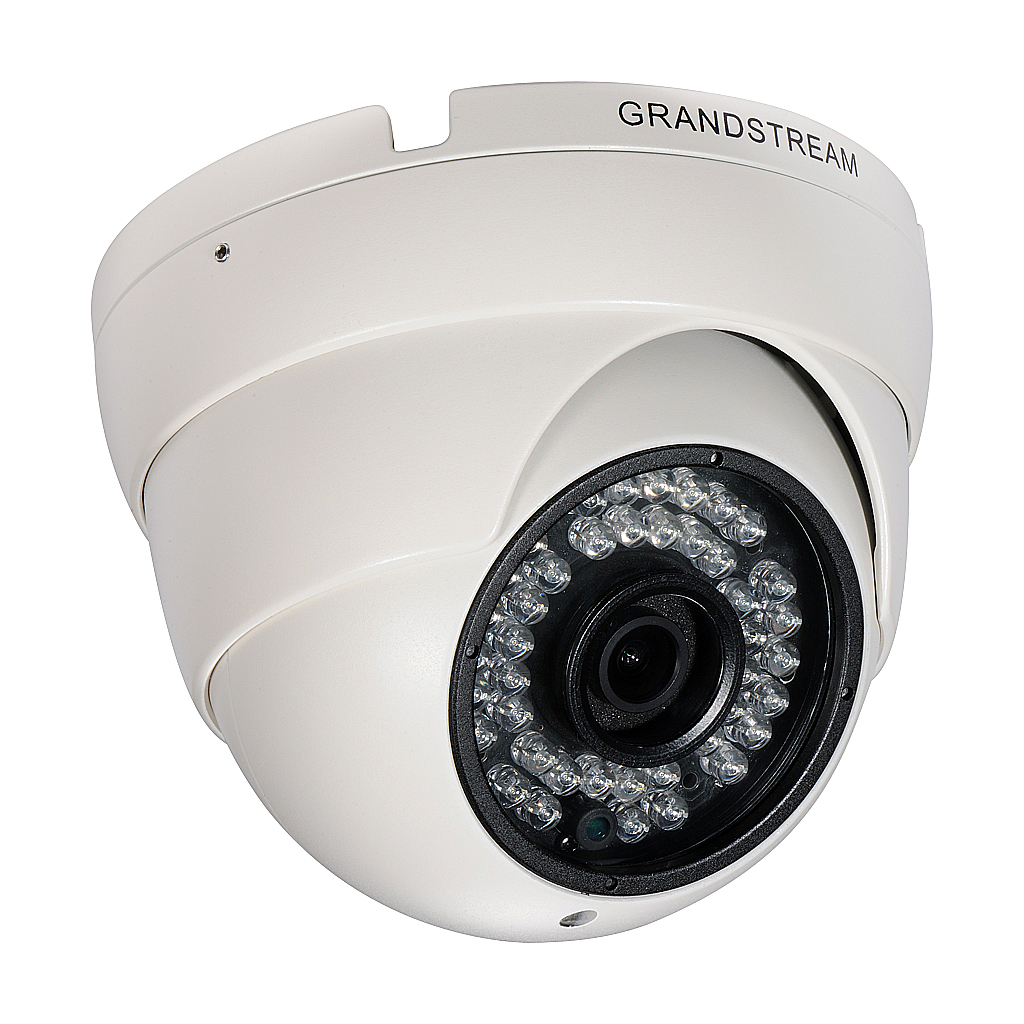

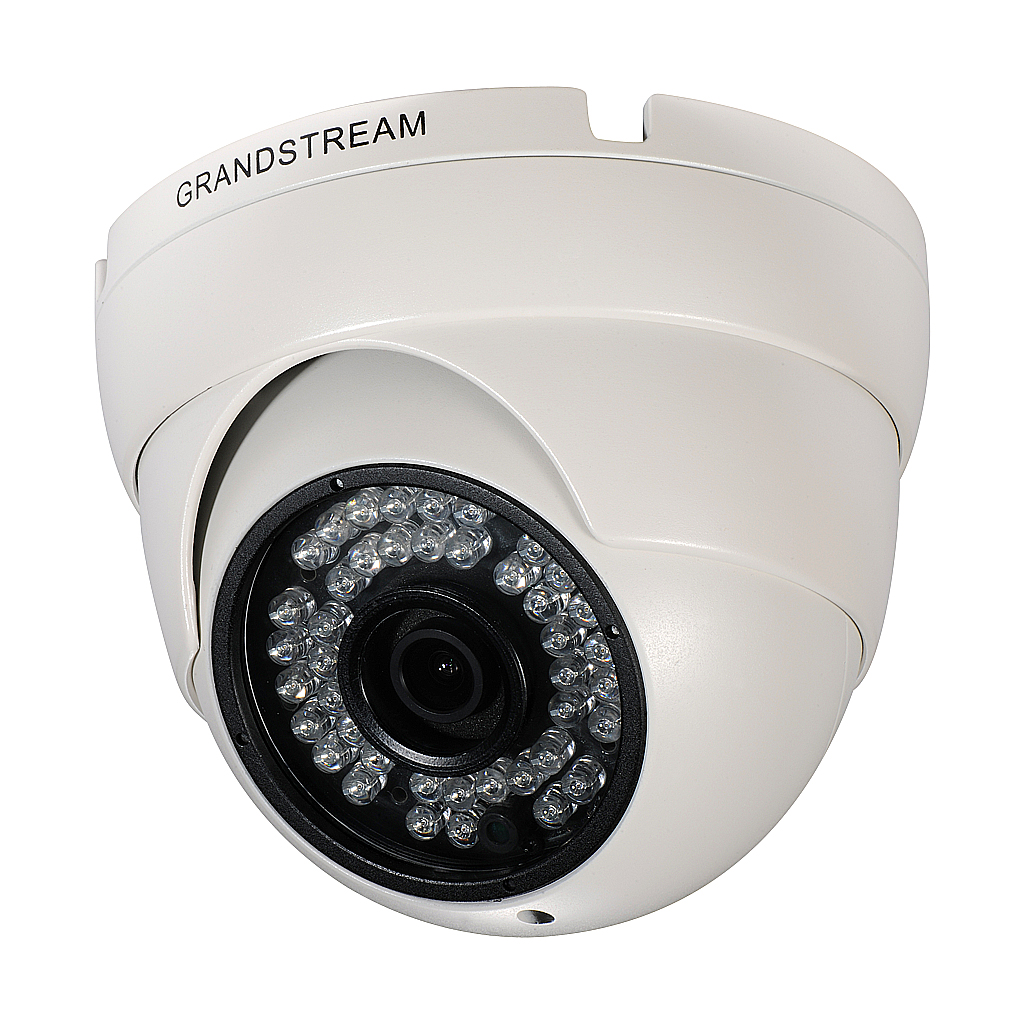

HD IP66 weather proof 1.2MP Day/Night Fixed Dome IP Camera, 720p, PoE
The GXV3610 series are weather-proof Infrared (IR) fixed dome IP cameras with a high-definition 3.6mm lens - making them ideal for wide-angle monitoring of nearby subjects in environments such as banks, hotels, retail, offices, warehouses, and building entrances.
The camera’s advanced Image Sensor Processor (ISP) is powered by a state of the art auto-exposure/auto-white balance algorithm which allows for exceptional performance in all
lighting conditions, including low light settings. The GXV3610 series can be managed with GSURF Pro (Grandstream’s FREE Video Management Software that allows simultaneous control of up to 36 cameras) along with other ONVIF-complaint video management systems. The GXV3610 is an indoor/outdoor HD IP Camera that features industry-leading SIP/VoIP for 2-way audio (using the camera’s built-in microphone) and video streaming to both video and mobile phones. It contains integrated PoE, IR-CUT for day and night mode, advanced security protection and a flexible HTTP API for easy integration with other monitoring systems.
| • | High quality 1.2 and 3.1 Megapixel CMOS sensors and HD lens | |
| • | Advanced multi-streaming rate real-time H.264, Motion JPEG at 720p or 1080p resolutions in full frame rate | |
| • | Built-in high performance streaming server to allow multiple simultaneous viewers | |
| • | Supports Motion Detection and Notifications on PC client | |
| • | Pre/post event recording buffer | |
| • | Supports both variable bit rate and variable frame rate | |
| • | Integrated PoE (802.3af) | |
| • | Embedded video analytics and SIP/VoIP/IMS support | |
| • | Full ONVIF conformance with extensions in the near future | |
| Video Compression | |
| • | H.264, MJPEG |
| Image Sensor Resolution | |
| • | 1/3” 1.2 Megapixel Progressive Scan CMOS, 1280H x 960V |
| Image Sensor Sensitivity | |
| • | Day/Night Mode (exceptional low noise level, low light sensitivity) Shutter: 1/10000 – 1/30 second |
| Focal Length | |
| • | 3.6mm |
| Aperture | |
| • | F1.8 |
| Field Angle (FOV) | |
| • | 100.2°(D) x 77°(H) x 54°(V) |
| IR Cut Filter | |
| • | Yes, Mechanical |
| Day & Night Mode | |
| • | IR LED covering up to 10 meters |
| Minimum Illumination | |
| • | 0.05 Lux; 0 lux with IR LED on |
| Responsivity | |
| • | 5.48V/lux-sec (550nm) |
| Supported Maximum Video Resolution and Frame Rate | |
| • | 1280x960 (25fps) |
| • | 1280x720 (30fps) |
| Video Bit Rate | |
| • | 32 Kbps ~ 8Mbps, Multi-rate for Preview and Recording |
| SIP/VoIP Support | |
| • | Yes |
| Power over Ethernet (PoE) | |
| • | IEEE 802.3af, class 0 |
| Dimensions (D x L) | |
| • | 120mm (D) x 100mm (H) |
| Weight | |
| • | 0.7kg |
| Temperature / Humidity | |
| • | Operating: -20°C ~ +50°C (-4° ~ 122°F) |
| • | Storage: ~30°C ~ 60°C (-22°F ~ 140°F) |
| • | 10 ~ 90% RH (non-condensing) |
| Power Adapter | |
| • | Output: 12VDC/1A |
| • | Input 100 ~ 240 VAC, 50 ~ 60 Hz |
| Casing | |
| • | IP66 compliant weather-proof metal case |
