discontinued
Grandstream
GXW4004
4 Port FXS Analogue VoIP Gateway
This product has been discontinued by Alloy.
Alloy recommends replacement product HT814
The GXW400x FXS Series is an ideal solution for businesses looking to connect one or more lines of a traditional PBX to a VOIP phone system or provider.

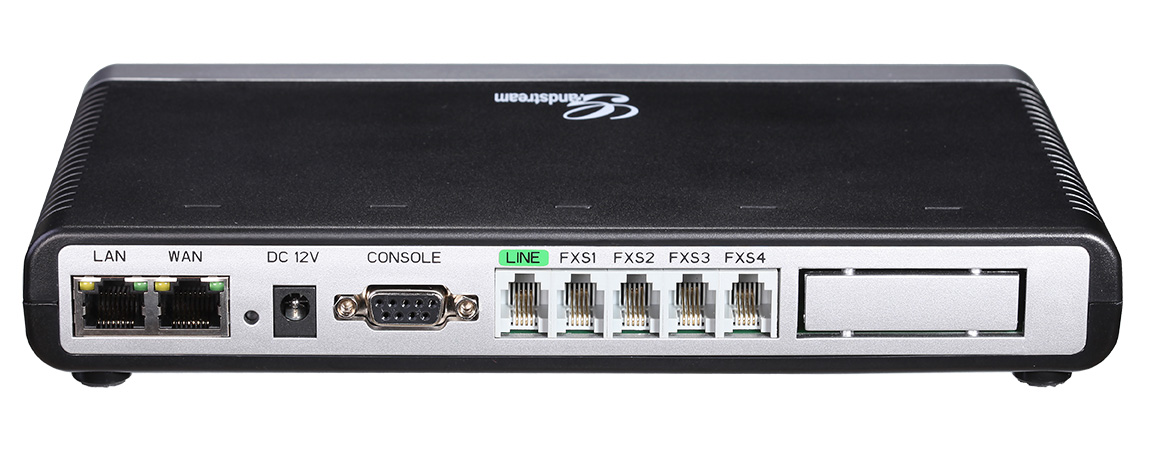

The GXW400x features 4 or 8-port FXS interfaces for analog telephones, dual 10M/100M network ports with integrated router, PSTN life line in case of power failure, and an RS232 serial port for administration.
| • | 4x FXS Ports with PSTN lifeline | |
| • | 2x RJ-45 ports (switched or routed) | |
| • | Multiple SIP server profiles )2 per system) and independent account per port | |
| • | Supports audio codecs: G.711, G.723, G.726, G.729 A/B/E, G.728, iLBC | |
| • | T.38 Fax | |
| • | G.168 Echo Cancellation | |
| FXS Ports | |
| • | 4x FXS |
| Ethernet Ports | |
| • | 1x RJ45 10/100Mbps (LAN) |
| • | 1x RJ45 10/100Mbps (WAN) |
| PSTN Line Port | |
| • | 1 RJ11, for Fail-Over PSTN |
| Audio Codecs | |
| • | G711, G.723, G.726 (40/32/24/16), G.729A/B/E, G.728, iLBC |
| Configuration | |
| • | Web based, and remote TFTP/HTTP |
| Mounting | |
| • | Rack mount, Wall mount, Desktop |
| Power | |
| • | Input: 100 - 240VAC 50/60Hz |
| • | Output: 12VDC |
| Environmental | |
| • | Operational: 32 - 104 F / 0 - 40 C |
| • | Storage: 14 - 140 F / -10 - 60 C |
| • | Humidity: 10 - 90% Non-condensing |
| Dimensions | |
| • | 230mm x 135mm x 35mm |
