Vidyo
LIC-SRV-GW-VE-5
License for a single VidyoGateway Virtual Edition (VE), 5 HD, 15 SD or 25 CIF
License for a single VidyoGateway Virtual Edition (VE) instance for VMware environments supporting up to 5 HD, 15 SD or 25 CIF concurrent connections of legacy H.323 and SIP videoconferencing endpoints to Vidyo conferences.

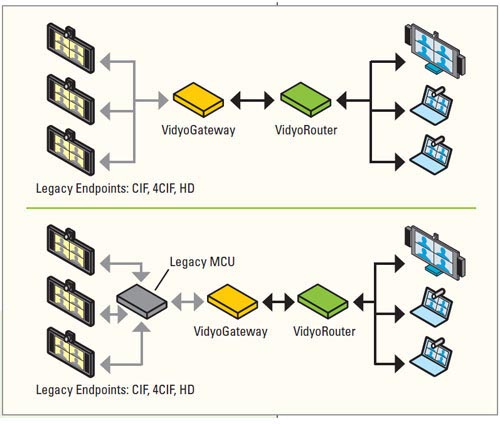

Available in both physical and virtual form factors, VidyoGateway™ integrates H.323 and SIP-based video conferencing equipment with the Vidyo infrastructure to extend the life of legacy systems as you deploy new Vidyo endpoints. Because calls through the VidyoGateway do
not consume VidyoLine™ licenses, integration with legacy endpoints is both easy and affordable. VidyoGateway also enables voice integration for enterprise IP PBX systems with the Vidyo deployment.
not consume VidyoLine™ licenses, integration with legacy endpoints is both easy and affordable. VidyoGateway also enables voice integration for enterprise IP PBX systems with the Vidyo deployment.
| • | Intuitive User Experience | |
| - | Connect and control legacy endpoints and cameras | |
| - | Add legacy endpoints to personal speed-dial directory for one-click access | |
| - | Share content between legacy and Vidyo endpoints via H.239 | |
| - | Customizable Interactive Voice Response (IVR) features guide and simplify connection tasks | |
| - | Mute audio, select video privacy for VidyoGateway participants from any Vidyo room | |
| - | Far-end Camera Control of legacy systems from any VidyoRoom™ or VidyoDesktop™ | |
| • | Flexible Deployment | |
| - | Registers to an H.323 Gatekeeper | |
| - | Supports prefix+IP or GDS dialing with PIN delimiter | |
| - | Supports SIP record route headers (UDP signaling only) | |
| - | Connects to both MCUs and endpoints with automatic rate and resolution matching | |
| - | Provides SNMP (MIB II) enabled elements | |
| - | Provides packet-loss error resiliency over the Internet through VidyoRouter – no external QoS required if co-located with legacy endpoints | |
| - | Supports clustering, load balancing, and failover to enhance capacity and resiliency | |
| • | Ease of Management | |
| - | Simplify administration, configuration and maintenance with web-based interface | |
| - | Monitor real-time resource utilization | |
| - | Add legacy devices as users to name-based directory | |
| - | Add to, remove from and moderate legacy endpoints in conferences | |
| - | Create reusable profiles to simplify call configuration and setup | |
| - | Leverage built-in security management: SSL certificates, private key management, NAT and firewall traversal, and HTTPS | |
| - | Central reporting on utilization and conference details with the free VidyoDashboard™ virtual appliance | |
| Capacity | |
| • | 2x HD 1080p30 @ 2Mbps, or 5x HD 720p30 @ 1Mbps |
| • | 15x SD @ 768Kbps |
| • | 25x CIF @ 384Kbps |
| • | 50 audio ports |
| Hypervisor | |
| • | VMWare® ESXi 5.1 or higher |
| Host Server Requirements | |
| • | Intel-based servers with a minimum, Xeon 56xx Series at 2.4 GHz or faster, supporting Intel Westmere (or newer) architecture, with AES-NI and hyperthreading enabled; 1 Gbps NIC |
| Resource Allocation | |
| • | 22 vCPU, 8 GB vRAM, 4.1 GB vDisk |
| Resource Reservation | |
| • | 22 GHz CPU, 6 GB RAM |
| Supported Protocols and Standards | |
| • | H.264 SVC, H.264 AVC, H.263 (video) |
| • | G.711, G.722 (audio) |
| • | H.323 and SIP (signaling) |
| • | H.235 AES Encryption for H.323 legacy endpoints |
| • | H.239 (data sharing) |
| • | H.224 Far-end Camera Control (FECC) |
