Eaton
M68182
True Online UPS, 1kVA, 2RU Rack/Tower Case 6x IEC outputs, C14 Input, USB/Serial/SNMP
This product has been discontinued by Alloy.

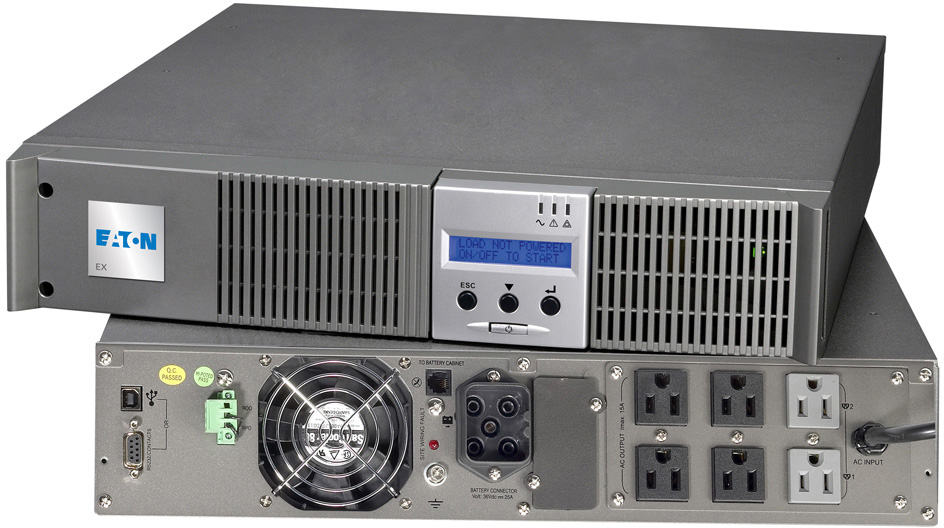

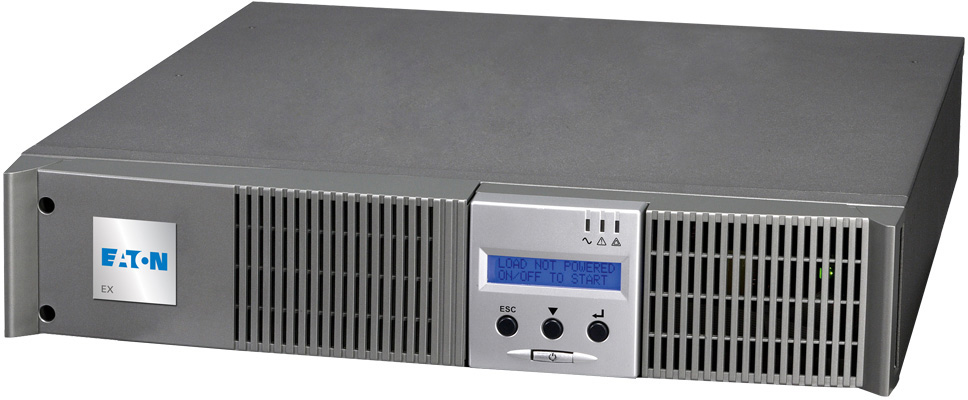

The M68182, an Eaton EX Series Online UPS, is a dual format Rack/Tower, double conversion online UPS with automatic by-pass and power factor correction. This 1kVA rated UPS has 6x IEC C13 10amp power outlets.

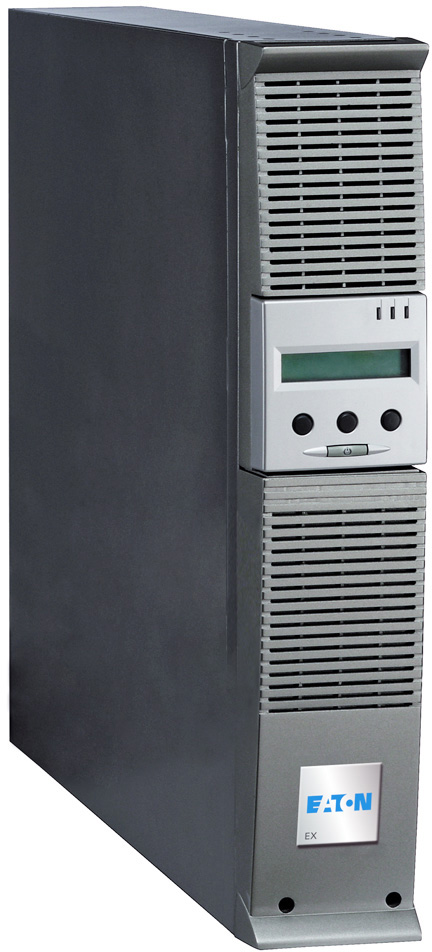

Eaton's M68182 is a True Online UPS with double conversion architecture for maximum availability and supporting automatic by-pass and power factor correction. This flexible online UPS is housed in a dual purpose 2RU Rack/Tower case, and delivers perfect sinewave output that guarantees consistent high level power quality. Rated for a 0.9 power factor, this UPS is compatible with high power factor loads. The UPS has a wide input voltage range (100 to 284 volts), ideal for the harshest electrical environments. Output sockets are individually controlled to provide load-shedding capability, maximising backup time and providing remote reboot and sequential start-up functionality. EXB External Battery Modules can be added to the MS8182 to provide long backup times. The M68182 has six IEC 10amp power output sockets and 1kVA/900W battery capacity - capable of supporting connected devices for up to 18 minutes at 50% load from internal batteries only.
The M68182 is a model from Eaton's EX Online UPS Series. Models in the series offer up to 3kVA/2.7kW battery capacity. The EX Series offers unmatched deployment flexibility: all models have a dual purpose convertible rack/tower format, with 2RU and 3RU short-depth rack optimised model options (Note that 2.2/3kVA models require input cable 6E1619 to be ordered separately).The following features are supported in addition to those mentioned above: Hot swappable, field upgradable batteries make maintenance easier and extend the operational lifetime of the UPS; the optional HotSwap MBP (Maintenance By-Pass) Module allows the UPS to be replaced without interrupting the power supply. Comprehensive communications options include both serial and USB ports, Remote On/Off and Power Off (ROO/RPO) connectors and a rear panel slot for optional HTML/SNMP, ModBus/JBus and Relay Outputs Communication Cards. The UPS comes with a complete Eaton software suite supporting power management, auto-shutdown, and remote supervision operations. An intuitive front-panel LCD provides access to a wide range of measurements, alarms and set-up/control menus. With optional FlexPDU and HotSwap MBP Maintenance Bypass modules, EX Series UPS in deployed in 2RU or 3RU rackmount format models can be connected by Australian 3-pin, IEC sockets or terminal blocks for hardwiring.
The M68182 is a model from Eaton's EX Online UPS Series. Models in the series offer up to 3kVA/2.7kW battery capacity. The EX Series offers unmatched deployment flexibility: all models have a dual purpose convertible rack/tower format, with 2RU and 3RU short-depth rack optimised model options (Note that 2.2/3kVA models require input cable 6E1619 to be ordered separately).The following features are supported in addition to those mentioned above: Hot swappable, field upgradable batteries make maintenance easier and extend the operational lifetime of the UPS; the optional HotSwap MBP (Maintenance By-Pass) Module allows the UPS to be replaced without interrupting the power supply. Comprehensive communications options include both serial and USB ports, Remote On/Off and Power Off (ROO/RPO) connectors and a rear panel slot for optional HTML/SNMP, ModBus/JBus and Relay Outputs Communication Cards. The UPS comes with a complete Eaton software suite supporting power management, auto-shutdown, and remote supervision operations. An intuitive front-panel LCD provides access to a wide range of measurements, alarms and set-up/control menus. With optional FlexPDU and HotSwap MBP Maintenance Bypass modules, EX Series UPS in deployed in 2RU or 3RU rackmount format models can be connected by Australian 3-pin, IEC sockets or terminal blocks for hardwiring.
| • | M68182: True Online Tower 2RU Rack/Tower UPS with 1kVA battery capacity and 6x IEC power outlets | |
| • | EX Series UPS: Online double-conversion topology assures maximum availability | |
| • | Dual purpose 2RU and 3RU Rack/Tower cases | |
| • | Wide input voltage range appropriate for the harshest electrical environments | |
| • | Automatic by-pass and power factor correction | |
| • | All models Rated for a 0.9 power factor | |
| • | Individually controlled output sockets support prioritised load-shedding capability | |
| • | Hot swappable, field upgradable internal batteries | |
| • | EX Series models provide up to 18 minutes internal battery backup at 50% load | |
| • | Add up to 4 EXB External Battery Modules for ultra long backup times | |
| • | 6 or 9 IEC power output sockets (model dependent) | |
| • | Intuitive front-panel LCD displays measurements, alarms and set-up/control menus | |
| • | Eaton power management/auto-shutdown software supplied | |
| • | Serial and USB communications ports plus Remote On/Off and Power Off connectors | |
| • | Wide range of optional items including Web/SNMP Management Card | |
| UPS Technology | |
| • | Online double conversion with automatic by-pass and power factor correction, pure sinewave output |
| Case Type | |
| • | Dual purpose 2RU Rack/Tower |
| • | 2.2kVA and 3KVA models also available in a 3RU versions for short-depth network racks |
| Items Supplied with UPS | |
| • | 2x 10A IEC output cords, retaining clips, USB Cable, Serial Cable, Software CD & Manual supplied |
| • | Rail Kit, Pedestals feet (except for 3RU models) and Philips head screwdriver are included as standard |
| • | Eaton Power Management software available for download |
| • | NOTE: 2.2/3kVA models require input cable 6E1619 (15A 3-pin to IEC15A, 2m) to be ordered separately |
| Case Format, Battery Capacity; Wattage Rating; Output Connections | |
| This model | |
| • | M68182: 2RU Rack/Tower; 1kVA/900W; 6x IEC CI3 10amp power outputs for battery backup |
| Other models in the Eaton EX Series UPS range | |
| • | M68184: 2RU Rack/Tower; 1.5kVA/1.35kW; 6x IEC C13 10amp power outputs for battery backup |
| • | M68401: 2RU Rack/Tower; 2.2kVA/1.98kW; 8x C13 10amp + 1x 1C19 6Amp IEC power outputs for battery backup |
| • | M68400: 3RU Rack/Tower; 2.2kVA/1.98kW; 8x C13 10amp + 1x 1C19 6Amp IEC power outputs for battery backup |
| • | M68403: 2RU Rack/Tower; 3kVA/2.7kW; 8x C13 10amp + 1x 1C19 6Amp IEC power outputs for battery backup |
| • | M68402: 3RU Rack/Tower; 3kVA/2.7kW; 8x C13 10amp + 1x 1C19 6Amp IEC power outputs for battery backup |
| • | M68402: 3RU XL Rack/Tower; 3kVA/2.7kW; 8x C13 10amp + 1x 1C19 6Amp IEC power outputs for battery backup |
| Electrical Specifications | |
| Input Voltage + Frequency Ranges (without Battery use) | |
| • | 1-1.5kVA Models: 100/120/140/160V to 284V - 40 to 70Hz |
| • | 2.2-3kVA Models: 100/120/160/184V to 284V - 40 to 70Hz |
| Output Voltage and Frequency | |
| • | 1-1.5kVA Models: 230V (adjustable to 200/208/220/240/250V), 50/60 Hz auto-select or frequency converter mode |
| • | 2.2-3kVA Models: 230V (adjustable to 200/208/220/240V), 50/60 Hz auto-select or frequency converter mode |
| Connections | |
| Input | |
| • | 1-1.5kVA Models: 6x IEC C13 (10A) sockets |
| • | 2.2-3kVA Models:1x IEC C20 (16A) |
| Outputs | |
| • | 1-1.5kVA Models: 1x IEC C14 (10A) socket |
| • | 2.2-3kVA Models: 8x IEC C13 (10A) sockets + 1 x IEC C19 (16A) socket |
| Remotely Controlled Powershare sockets | |
| • | 1-1.5kVA Models: 2 independent groups: 2 + 1x IEC C13 (10A) sockets |
| • | 2.2-3kVA Models:2 groups of 2 x IEC C13 (10A) |
| Adding Optional Extra Outputs | |
| • | HotSwap MBP models: 4x Aust 3-pin or 6x IEC 10A sockets or Terminal Blocks (HW version) |
| • | FlexPDU models: 6x Aust 3-pin or 12x IEC 10A sockets |
| Battery | |
| • | Battery Type: Sealed, replaceable, field upgradable lead acid |
| Battery Management: | |
| • | Automatic weekly test (period adjustable using LCD display or in software supplied) |
| • | Automatic recognition of EXP external battery units |
| • | Continuous maximisation of backup time |
| • | Deep discharge protection |
| Indicative Battery Runtime, 50%/70% load | |
| • | M68182: Internal Batteries only: 18/12mins; Internal + 1x EXB: 75/50mins; Internal + 4x EXB: 250/200mins |
| • | M68184: Internal Batteries only: 13/9mins; Internal + 1x EXB: 50/35mins; Internal + 4x EXB: 180/120mins |
| • | M68401: Internal Batteries only: 17/12mins; Internal + 1x EXB: 85/60mins; Internal + 4x EXB: 285/200mins |
| • | M68400: Internal Batteries only: 17/12mins; Internal + 1x EXB: 85/60mins; Internal + 4x EXB: 285/200mins |
| • | M68403: Internal Batteries only: 15/10mins; Internal + 1x EXB: 60/40mins; Internal + 4x EXB: 190/150mins |
| • | M68402: Internal Batteries only: 15/10mins; Internal + 1x EXB: 60/40mins; Internal + 4x EXB: 190/150mins |
| • | M68404: UPS with high speed charger, supplied without built-in batteries, for custom long backup configurations |
| User Interface | |
| Indicators and Display | |
| • | 3x LEDS |
| • | Adjustable multilingual LCD display for measurements, access to control and set-up menus |
| Communication ports | |
| • | 1x USB port + 1x RS232 serial port (paired) |
| • | 4x Relay Contacts |
| • | 1 x mini terminal block for remote ON/OFF and emergency stop (ROO/ROP) |
| Slot For Optional Communications Cards | |
| • | Web/SNMP Communications Card |
| • | NMC Minislot card or |
| • | NMC ModBus/JBus card or |
| • | MC Contacts/Serial |
| Power Management Software | |
| • | Eaton Power Management software, included on CD |
| Environmental | |
| • | Temperature, operating: 0ºC to +40ºC continuous |
| • | Audible noise: 45dBA |
| Dimensions/Weight | |
| • | M68182: 438x483x86 mm; 25Kg |
| • | M68184: 438x483x86 mm; 27.3Kg |
| • | M68401: 440x640x86 mm; 31Kg |
| • | M68400: 440x490x131 mm; 30kg |
| • | M68403 440x640x86 mm; 31kg |
| • | M68402: 440x490x131 mm; 30kg |
| • | M68404: 440x490x131 mm; 30kg |
| Standards Compliance | |
| Performance/Safety/EMC | |
| • | IEC/EN 62040-3 (VFI-SS-113) |
| • | IEC/EN 62040-1-1 |
| • | IEC/EN 60 950-1 (RD) |
| • | IEC/EN 62 040-2 C1 Class |
| Approvals | |
| • | 1 and 1.5kVA models: CE, TüV GS, CB report, cTüV-US, C-Tick |
| • | 2.2 and 3kVA models: CE, TüV, CB Report, UL, C-Tick |
| Warranty | |
| Standard Warranty | |
| • | Standard product exchange, including the battery |
| Extended Warranty Options, UPS and EXP External Battery Modules | |
| • | WP818: EX Series, 1 & 1.5kVA models Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP818-4: EX Series, 1 & 1.5kVA models Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP818-5: EX Series, 1 & 1.5kVA models Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP819: EX Series, EXB 1 & 1.5kVA modules Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP819-4: EX Series, EXB 1 & 1.5kVA modules Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP819-5: EX Series, EXB 1 & 1.5kVA modules Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP820: EX Series, 2.2kVA models Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP820-4: EX Series, 2.2kVA models Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP820-5: EX Series, 2.2kVA models Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP821: EX Series, 3kVA models Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP821-4: EX Series, 3kVA models Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP821-5: EX Series, 3kVA models Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP822: EX Series, EXB 2.2 & 3kVA modules Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP822-4: EX Series, EXB 2.2 & 3kVA modules Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP822-5: EX Series, EXB 2.2 & 3kVA modules Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
| Optional Accessories | |
| • | Replacement Internal Batteries (call for details) |
| • | NMC Web/SNMP Communications Card |
| • | NMC ModBus/JBus Communications Card |
| • | MC Contacts/Serial Communications Card |
| • | M68441: EX 2U/3U Rackmount Kit |
| • | M68443: HotSwap Maintenance Bypass (MBP), Aust 3 pin outlets |
| • | M68433: HotSwap Maintenance Bypass (MBP), IEC outlets |
| • | M68434: HotSwap Maintenance Bypass (MBP), Hardwired |
| • | M68440: MBP cable kit for UPS connection <2kVA 10A |
